3
Design and Function
3.5.3

CCD Cameras (Sensor 1/2)

One-camera system
Dual-camera system
26/162 ekr 500 digital Unit Touch – Installation and Commissioning Manual

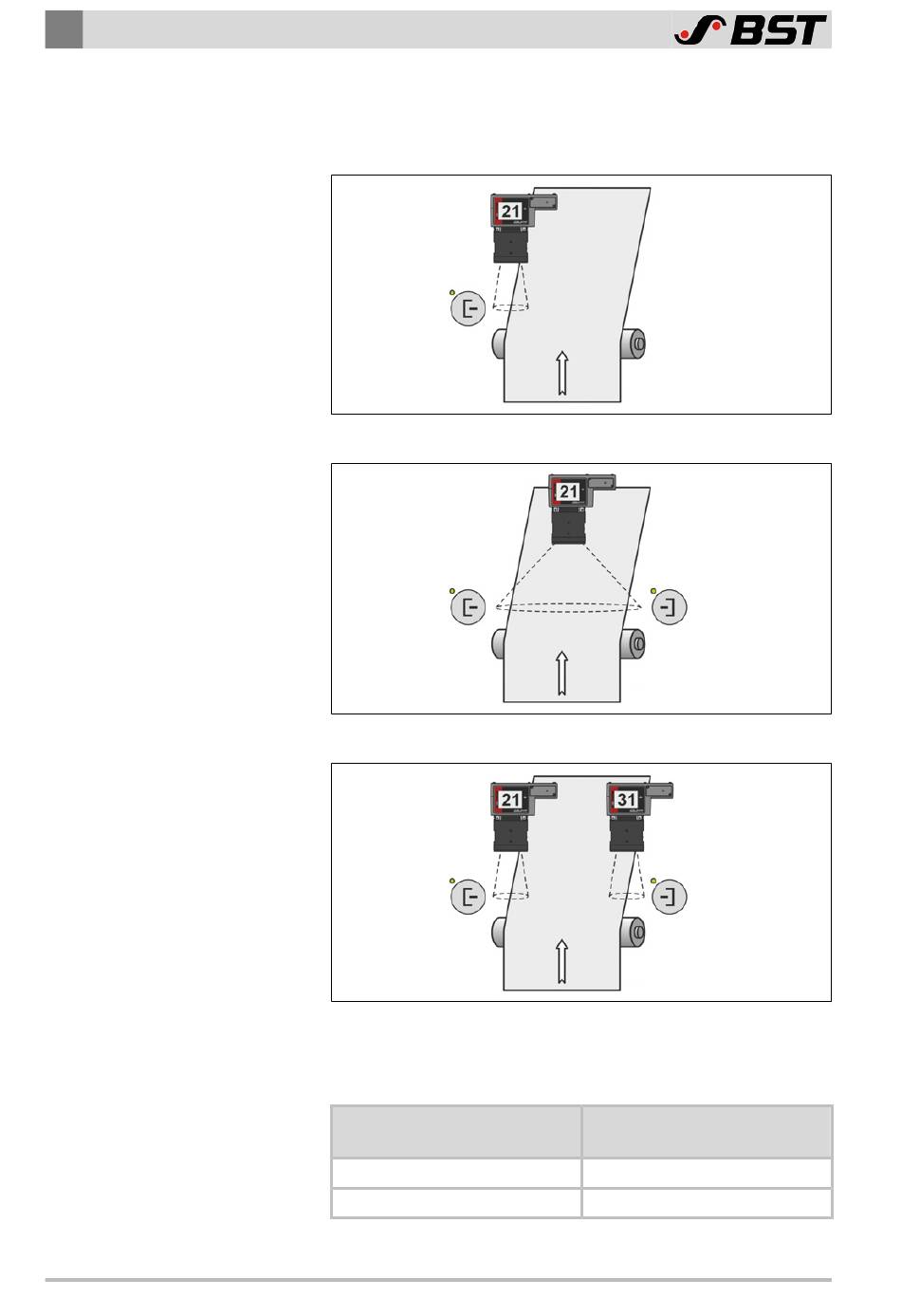

The assignment of the web edges to the selector keys for the
guiding mode can be obtained from the following figures.
CAN address = 21
Left
edge
Fig. 7: Web edge guiding with one CCD camera
CAN address = 21
Left
edge
Fig. 8: Web edge or web center-line guiding with one CCD camera
CAN address = 21
Left
edge
Fig. 9: Web center-line guiding with two CCD cameras
Adjustment of the CAN address of the CCD camera(s), see separate
instruction manual.
CCD Camera
CCDPro 30000/5000
CCD CAM 100
Right
edge
CAN address = 31
Right
edge
Instruction Manual
(Document Number)
MD.167
MD.465
