13.2 Application with CCD Cameras

13.2.1 Application with CCD CAM 100

Extension cable or spiral cable 0.5 m / 2 m (168 176)
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
CLS Pro 600
CCD CAM 100

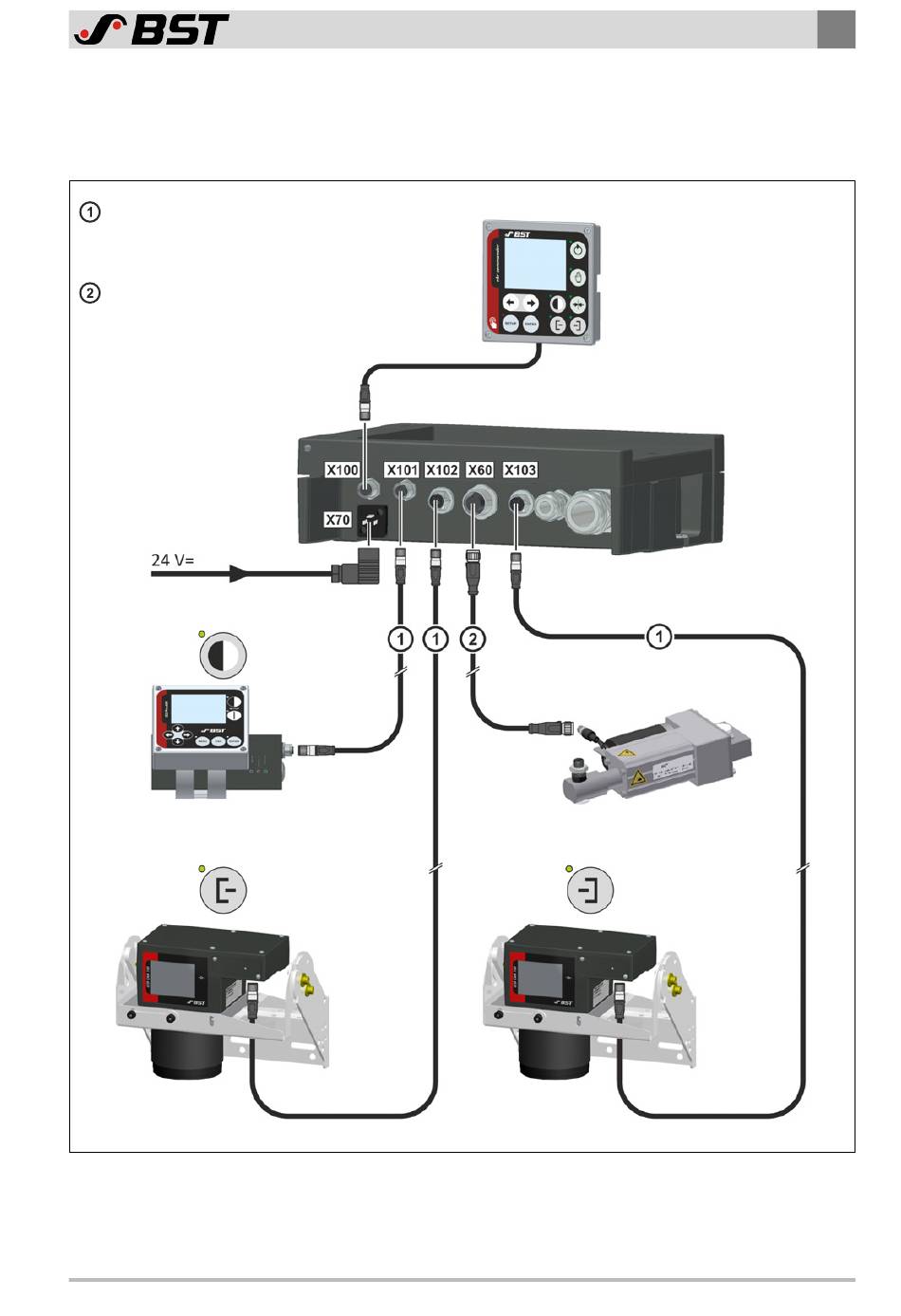

Fig. 69: Connection diagram for applications with CCD CAM 100
X101
X100
ekr 500 digital Unit Touch – Installation and Commissioning Manual
Connection Diagram
ekr commander
EMS 18
X100
CCD CAM 100
13
ekr 500 digital
Unit Touch
157/162
