Connection Diagram

13 Connection Diagram

13.1 Application with Edge Sensors

Extension cable or spiral cable 0.5 m / 2 m (168 176)
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
CLS Pro 600
IR 2011
IR 2012
US 2010

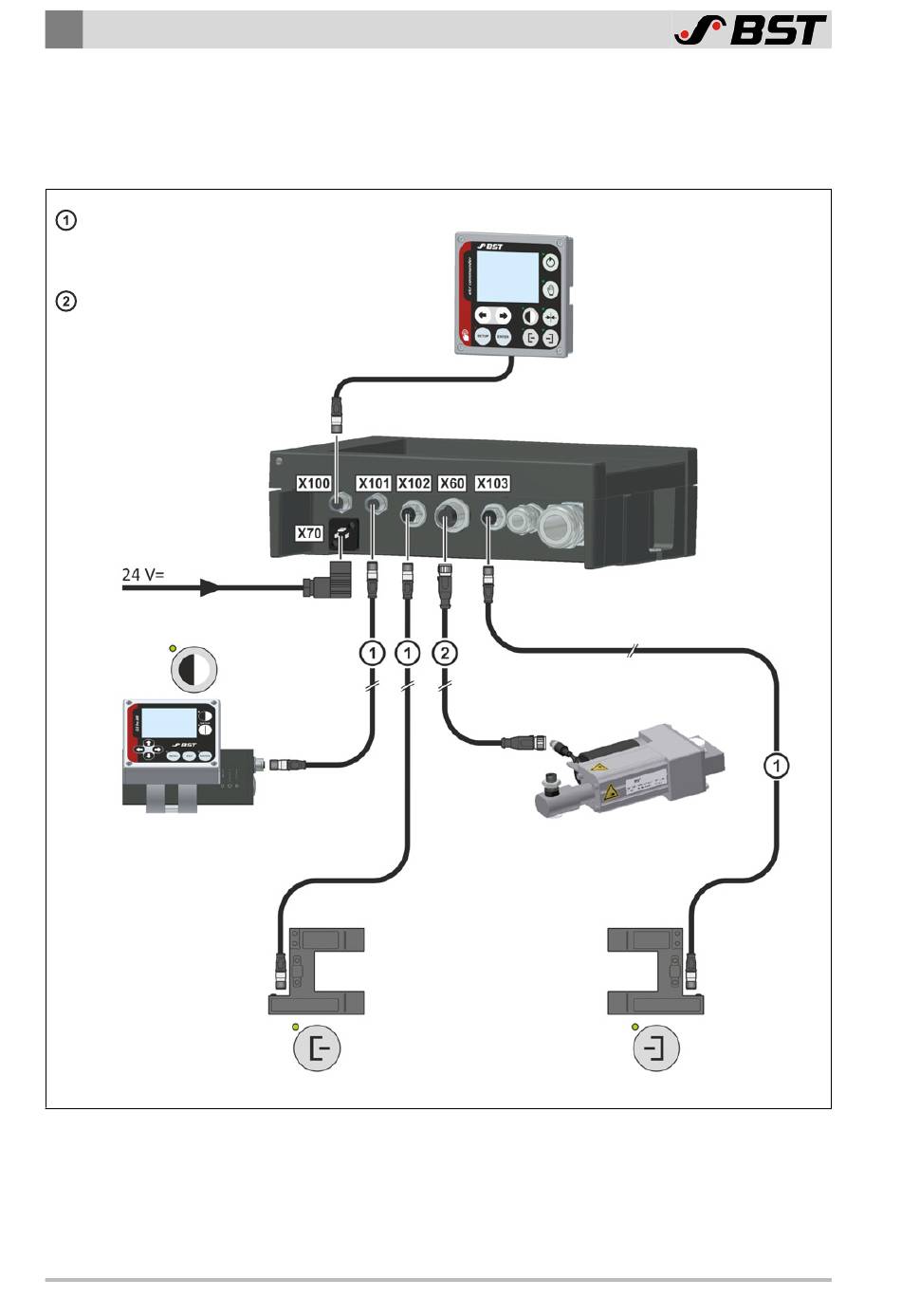

Fig. 68: Connecting diagram for standard applications with edge sensor
156/162 ekr 500 digital Unit Touch – Installation and Commissioning Manual
X101
ekr commander
ekr 500 digital
Unit Touch
EMS 18
IR 2011
IR 2012
US 2010
