Connection Diagram

13.2.2 Application with CCDPro 30000/5000

Extension cable or spiral cable 0.5 m / 2 m (168 176)
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
CAN bus distributor (167 205)
CAN bus power adapter (220 406)
CAN bus adapter (220 395)
CLS Pro 600
CCDPro

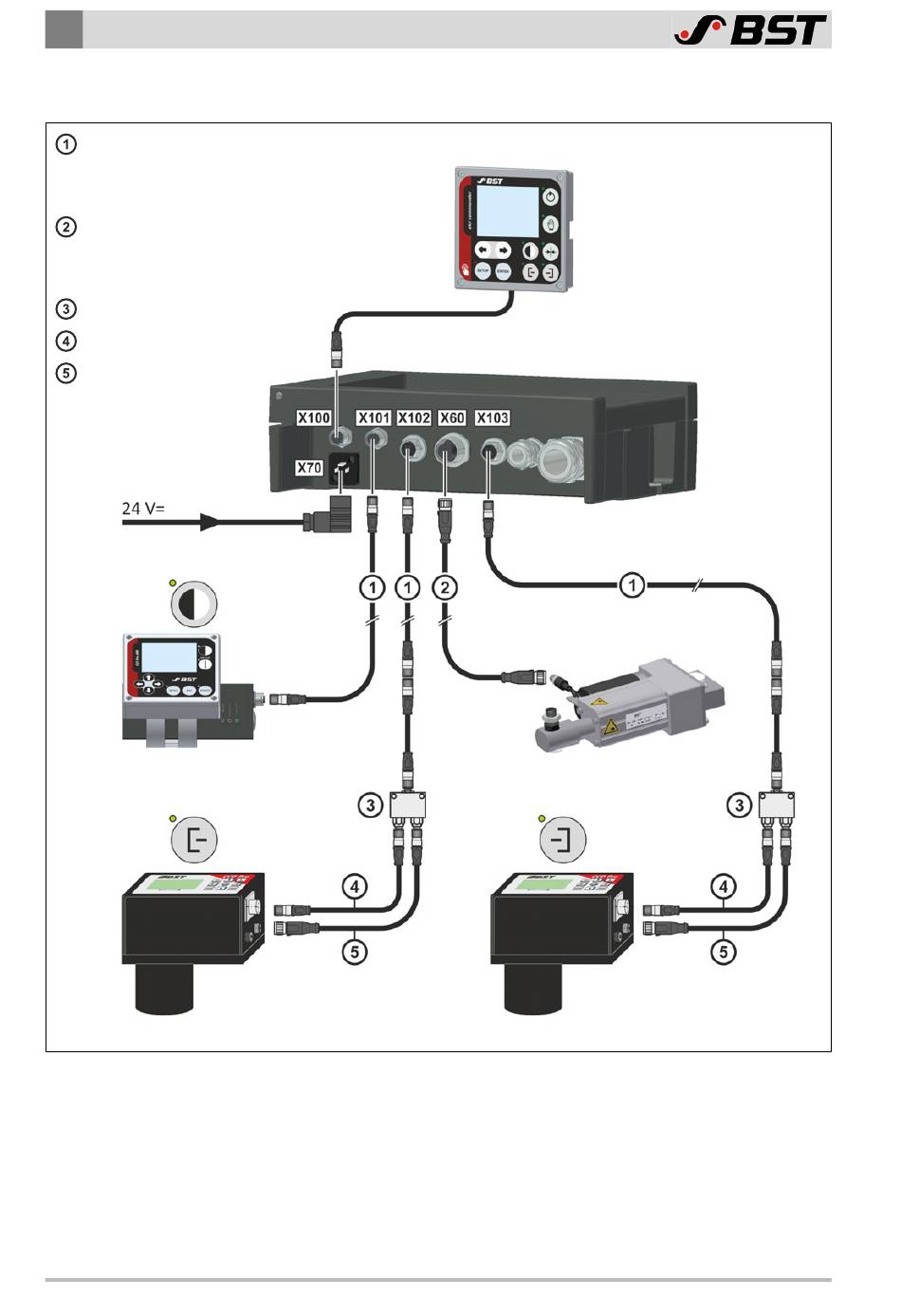

Fig. 70: Connection diagram for applications with CCDPro 30000/5000

13.3 Application with Sensor Positioner FVG POS 100

158/162 ekr 500 digital Unit Touch – Installation and Commissioning Manual
X101
X1
X2
You will find the connection diagrams for applications with the
FVG POS 100 sensor positioner in the separate operating instruc-
tions FVG POS 100 sensor positioner, document number MD.467.
ekr commander
ekr 500 digital
Unit Touch
EMS 18
X1
X2
CCDPro
