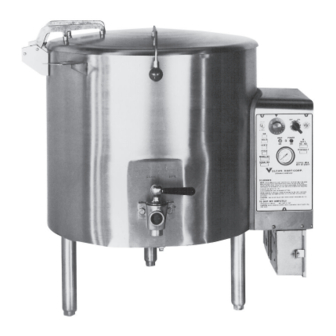

ES, EL & ET STEAM JACKETED KETTLES
MODEL
ES25
ES30
EL40
ES60
EL80
ET100
ET125
ET150
V U L C A N - H A R T C O M P A N Y , P . O . B O X 6 9 6 , L O U I S V I L L E , K Y 4 0 2 0 1 - 0 6 9 6 ,
FORM 30965 (8-97) (Formerly 990202)
INSTALLATION, OPERATION,
SERVICE & PARTS MANUAL
ML-52642
ML-52643
ML-52644
ML-52645
ML-52646
ML-52647
ML-52648
ML-52649
TEL. (502) 7 7 8 - 2 7 9 1
Advertisement
Table of Contents
Related Manuals for Vulcan-Hart ES25
Summary of Contents for Vulcan-Hart ES25
- Page 1 INSTALLATION, OPERATION, SERVICE & PARTS MANUAL ES, EL & ET STEAM JACKETED KETTLES MODEL ES25 ML-52642 ES30 ML-52643 EL40 ML-52644 ES60 ML-52645 EL80 ML-52646 ET100 ML-52647 ET125 ML-52648 ET150 ML-52649 V U L C A N - H A R T C O M P A N Y , P . O . B O X 6 9 6 , L O U I S V I L L E , K Y 4 0 2 0 1 - 0 6 9 6 , TEL.
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL ................3 INSTALLATION . -
Page 3: General
Your Vulcan steam jacketed kettle is produced with quality workmanship and material. Proper installation, usage and maintenance will result in many years of satisfactory performance. Vulcan-Hart Company suggests that you thoroughly read this entire manual and carefully follow all of the instructions provided. -
Page 4: Electrical Connections
3. ANSI NFPA Standard #96 "Vapor Removal from Cooking Equipment," (latest edition), available from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269. In Canada: 1. Local codes. 2. CSA Standard C22.1 Canadian Electrical Code, Part 1. ELECTRICAL CONNECTIONS WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL... -
Page 5: Operation
OPERATION WARNING: THE KETTLE AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING AND SERVICING THE KETTLE. BEFORE FIRST USE Using a non-corrosive, grease-dissolving commercial cleaner, clean the protective metal oils from all surface parts and interior of the kettle. Follow the cleaner manufacturer's directions. Rinse thoroughly with warm water to remove all traces of the cleaner. -
Page 6: Filling The Water Jacket
FILLING THE WATER JACKET APPLIANCE FAILURE CAUSED BY INADEQUATE WATER QUALITY IS NOT COVERED UNDER WARRANTY. Fill the outer jacket of the kettle to the top of the band on the gauge glass with a chemically pure distilled water, along with a suitable rust inhibitor. It should not be necessary to frequently add distilled water to the jacket, as little distilled water is lost in normal operation. - Page 7 5. After washing, lubricate the valve body and valve plug with Petro-Gel lubricant. Make sure all interior mating surfaces are covered with this lubrication. This lubrication must be done every day after use. If the food draw-off valve plug and inside of valve body are not lubricated, undesirable leakage can occur, or the valve plug could stick in a partially open position when the kettle is up to cooking temperature and the operator attempts to open the draw-off valve.
-
Page 8: Maintenance
When the jacket is refilled, always use chemically pure water, along with two ounces of a boiler feed water treatment compound. A 6-ounce bottle of treatment compound is available from Vulcan-Hart. — 8 —... -
Page 9: Service
SERVICE WARNING: THE KETTLE AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING AND SERVICING THE KETTLE. WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH TO INDICATE THAT YOU ARE WORKING ON THE CIRCUIT. GENERAL NOTES The signal light marked "Power On"... -
Page 10: Low Water Cut-Off
(terminals at the bottom of the contactor), remove the two screws holding the coil in place and lift the coil and armature assembly out. Pitted contacts should be replaced. These may be obtained from Vulcan-Hart. Electric Heating Elements This service is indicated if a check with an ammeter shows the K.W. -
Page 11: Replace On-Off Switch
To obtain service and parts information concerning the kettle, contact the Vulcan-Hart Service Agency in your area (refer to listing supplied with the kettle), or Vulcan-Hart Company Service Department at the address or phone number shown on the front cover of this manual. -
Page 12: Parts List
PARTS LIST NOTE: In ordering parts, always give model number, serial number, volts and phase of the kettle for which they are ordered. ITEM PART NUMBER NUMBER NUMBER DESCRIPTION REQUIRED 836799-1 " Faucet (Old Style) ..........1 836799-2 "... - Page 13 ITEM PART NUMBER NUMBER NUMBER DESCRIPTION REQUIRED 45 Cont. 832611-22 Heating element (21.6 KW, 208V.) ........2 832611-23 Heating element (21.6 KW, 240V.) .
-
Page 14: Wiring Diagrams
WIRING DIAGRAM — 14 —... -
Page 15: Wiring Diagram
WIRING DIAGRAM — 15 —... - Page 16 WIRING DIAGRAM — 16 —...
- Page 17 WIRING DIAGRAM — 17 —...
-
Page 18: Dimensions And Service Connections
DIMENSIONS AND SERVICE CONNECTIONS DIMENSIONS – ENGLISH Gallons Kilowatts Inches Model Capacity Input 2" Draw-Off 3" Draw-Off Full Wkg. Std. High A ES25 29 14 ⁄ 32 3 ⁄ 13 30 ⁄ ⁄ ⁄ 14 32 ⁄ 35 10 ⁄... - Page 19 NOTES — 19 —...
-
Page 20: Form 30965 (8-97) (Formerly
NOTES FORM 30965 (8-97) (Formerly 990202) PRINTED IN U.S.A. — 20 —...
