Vulcan-Hart 1T4024E Specifications

SPECIFICATIONS:
2
One 40 quart / jacketed tilting steam kettle mounted on a
3
24"wide electric boiler base, Vulcan-Hart Model No. 1T4024E.
Steam jacketed kettle mounted on 28" high base cabinet with
stainless steel frame, front full height door, stainless steel side
and aluminized rear panel with 6" adjustable legs with flanged
feet for anchoring. Fully welded hemispheric bottom kettle with
type 304 stainless steel jacket and type 316 stainless steel
liner. Jacket tested to 50 psi (3.4 kg/cm
on right trunnion leg. 12" single temperature deck mounted
faucet. Requires 208 or 240 volt, 60 Hz, 3 phase power supply
and a separate 120 volt, 60 Hz, 1 phase control circuit, 3 amp.
Exterior dimensions:
Cabinet: 24"w x 35.4"d x 28"h on 6" adjustable legs. Overall
height to the lip of the kettle - 47", to the top of the handle - 59".
U L listed. Classified by U L to NSF Std. #4. Meets ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32380 (2-06)
2 ). Steam control valve
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

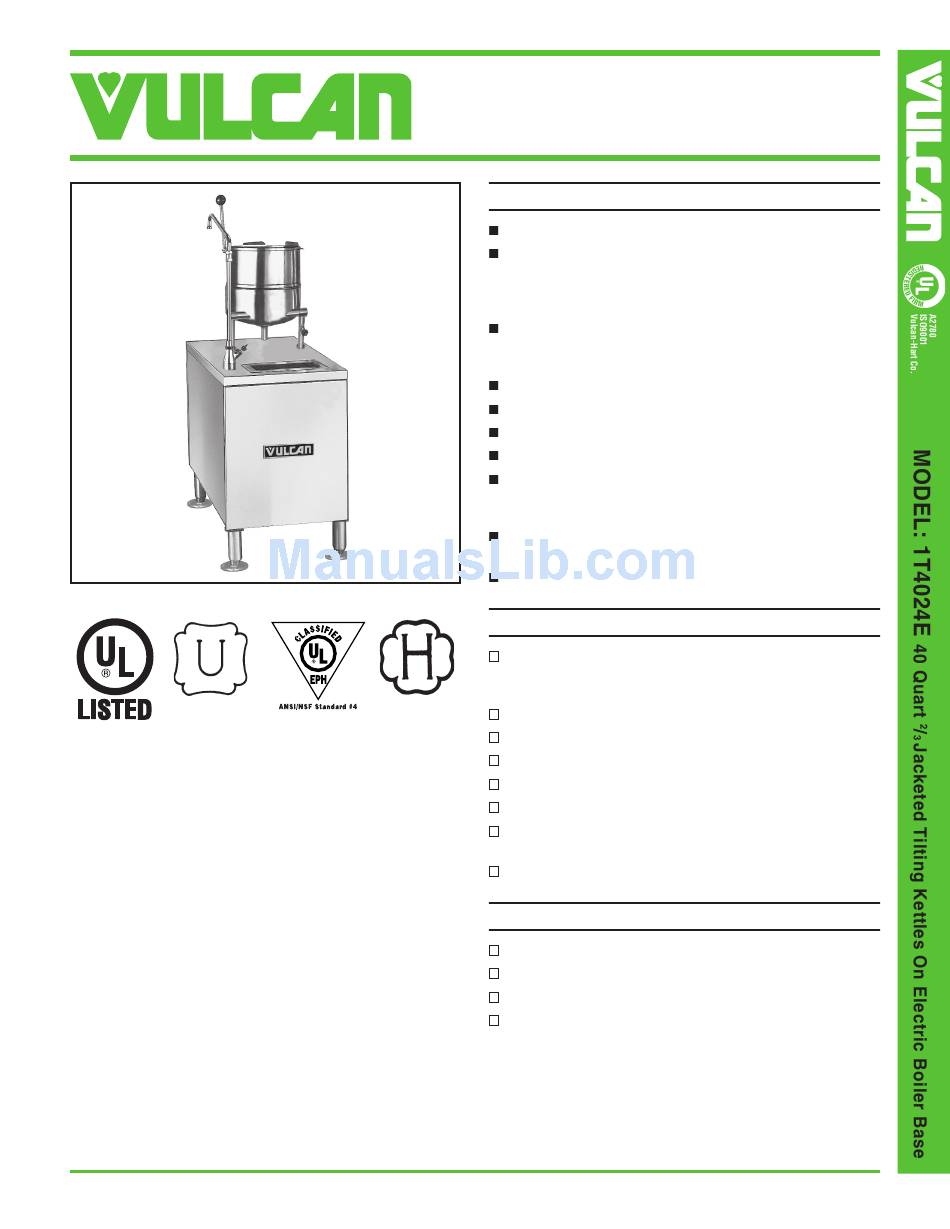

MODEL 1T4024E
2
40 QUART / JACKETED TILTING
3
KETTLE ON ELECTRIC BOILER BASE
STANDARD FEATURES
2
/ jacketed tilting steam kettle, 40 quart capacity.
3
Steam jacketed kettle mounted on 28" high base cabinet
with stainless steel frame, front full height door, stainless
steel side and aluminized rear panel with 6" adjustable legs
with flanged feet for anchoring.
Fully welded hemispheric bottom kettle with type
304 stainless steel jacket and type 316 stainless steel
liner. Jacket tested to 50 psi (3.4 kg/cm
Steam control valve on right trunnion leg.
12" single temperature deck mounted faucet.
CSD-1 code compliant boiler.
Electric 24 KW steam boiler.
Requires a 208 or 240 volt, 60 Hz, 3 phase power supply
and a separate 120 volt, 60 Hz, 1 phase control circuit,
3 amp.
Water filter system, SPS620V. Includes second year ex-
tended limited water associated parts and labor warranty.
One year limited parts and labor warranty.
OPTIONS
Correction package.
- Cabinet door with hasp (lock by others).
- Security type tamper resistant fasteners.
Tilting kettle strainer.
12" dual temperature faucet.
Single phase on 24 KW boiler.
Stepdown transformer (eliminates 120 volt connection).
480 volts, 60 Hz, 3 phase, includes stepdown transformer.
Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Lift-off cover.
Contour measuring strip.
Single perforated stainless steel basket.
C.S.I. Section 11420
