Vulcan-Hart IR2 Specifications

Model IR2
SPECIFICATIONS
Heavy-duty infrared broiler, Vulcan-Hart Model No. IR2. Stain-
less steel body and 6" adjustable legs. Power blower(s) mix
primary and secondary air with (natural) (propane) gas. Air and
gas mixture moves through overhead perforated ceramic tile
infrared generators. Four 20,000 BTU/hr. ceramic tile faced
burners reach approximately 1600°F through two in nate heat
valves with high and low positions. 160,000 BTU/hr. input. Pilot
lights and pressure regulator. Spring balanced broiler area mea-
sures 25 / "w x 29 / "d. Grid is made of round cold rolled steel
1 1
2 2
bars and mounted on roller bearings. Insulated external handle
and adjustable to ve locking broiling levels.
Exterior dimensions:
36"w x 38 / "d x 80 / "h on 6" legs
3 1
8 2
CSA design certi ed. NSF listed.
SPECIFY TYPE OF GAS AND FINISH WHEN ORDERING
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31752 (05-06)
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
IR2
INFRARED BROILER

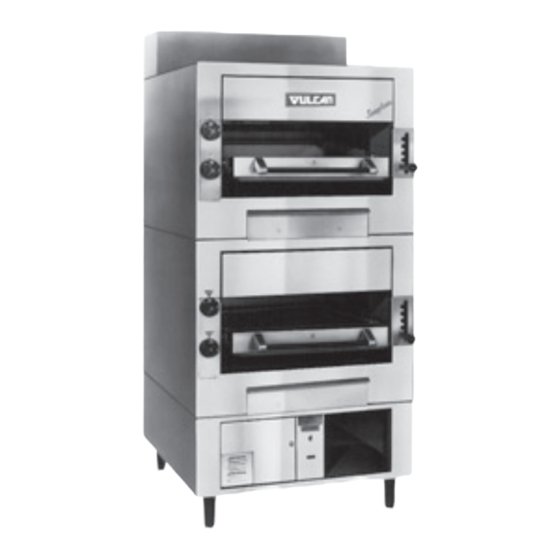

IR2 Double deck broiler on 6" legs
STANDARD FEATURES
Stainless steel body and legs.
High production infrared broiler with power blower supplied
primary and secondary air.
Reaches 1600°F broiling temperatures quickly and maintains
broiling e ciency during peak hours under repeated loading.
Radiant infrared rays reduce broiling time up to 50% on many
products.
Quick preheating allows broiler to be turned o in slow periods.
Spring balanced 5 position grid for raising and lowering.
Porcelain enameled steel liners in broiler compartment.
Four foot 120V power cord.
Gas pressure regulator.
Grid area 700 sq. in.; 25
Grid moves on roller bearings.
Cold rolled steel grid bars for marking.
Insulation between outer and inner walls.
Rear gas connection.
One year limited parts and labor warranty.
OPTIONS
Stainless steel nishing back panel.
IR2 - less legs on 1 ⁄ " base
5
8
Front ue de ector
Second year extended limited parts and labor warranty.
ACCESSORIES
Quick disconnect gas hose.
C.S.I. Section 11420
⁄ " x 29 ⁄ ".
1 1
2 2
