6.2.3 Wiring

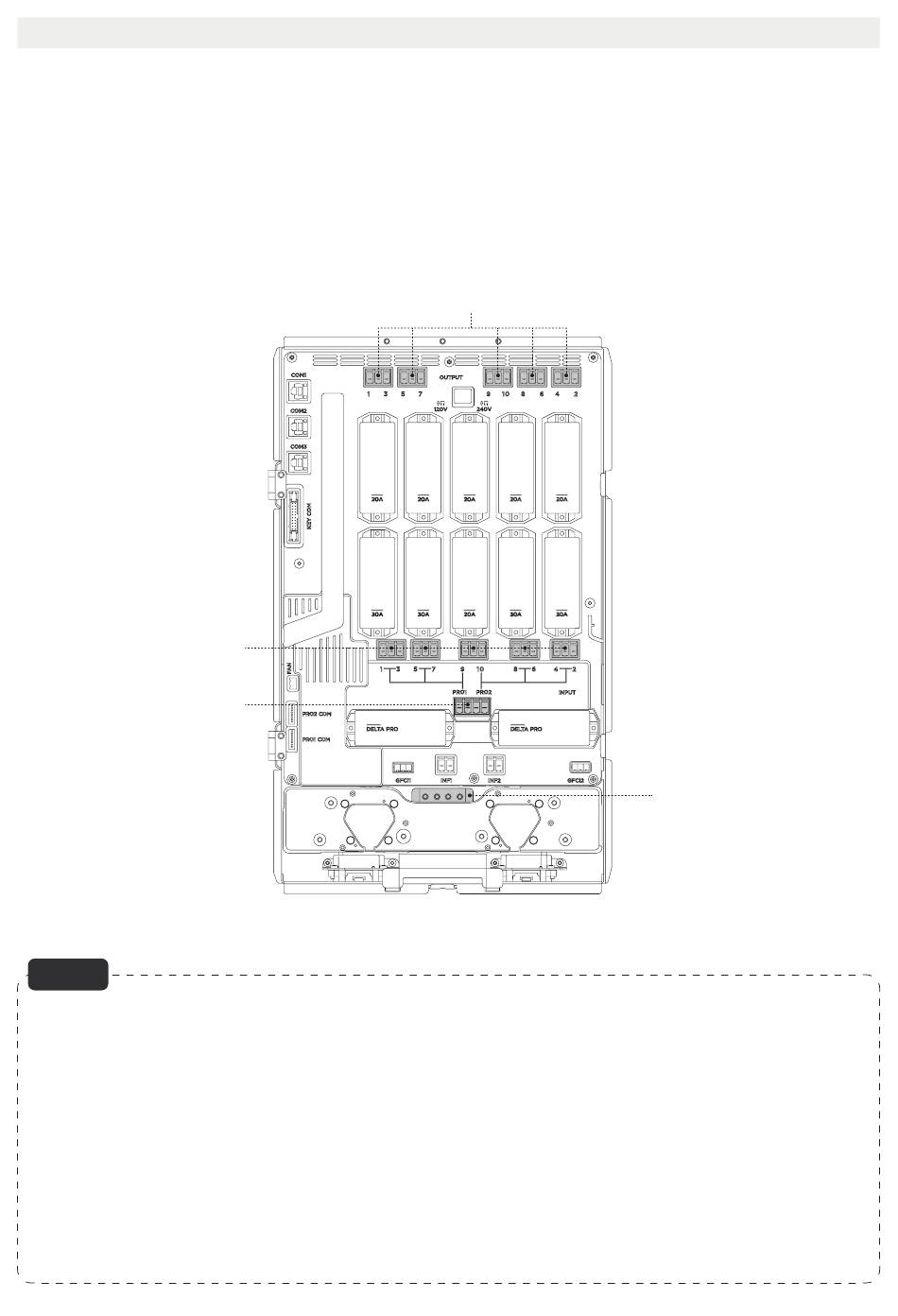

Wiring inside the Smart Home Panel
All wires come labeled in the box, 12 input wires, labeled "1 in - 10 in" "Pro1 in, Pro2 in" connected to the circuit
breakers, 10 output wires, labeled "1 out - 10 out" connecting to the load hot wires, two neutral wires connecting
to the neutral bus bar in the main panel and ground wire connecting to the ground bus bar in the main panel. Users
should connect all input, output, neutral and grounds wire to their designated connectors inside the SHP.
Input connectors
Pro1,N1,N2,Pro2
NOTE
Two neutral wires and the ground wire must be connected to the main panel in order for the SHP to operate
correctly and safely.
The maximum current for circuits 1-4 is 30A. Maximum current for circuits 5-10 is 20A. The current rating for
each circuit should not be exceeded. Please plan the load circuits appropriately. If a non-metallic conduit is
used to connect between the main panel and SHP, an equipment grounding conductor needs to be present
inside each conduit. Additional ground wires can be connected between the ground bar inside the main panel
and the SHP.
You may use your own wires with the connectors instead of the included wire. Use a screwdriver to remove the
connectors, strip the wire and then insert and torque down
Output connectors
Ground bar
