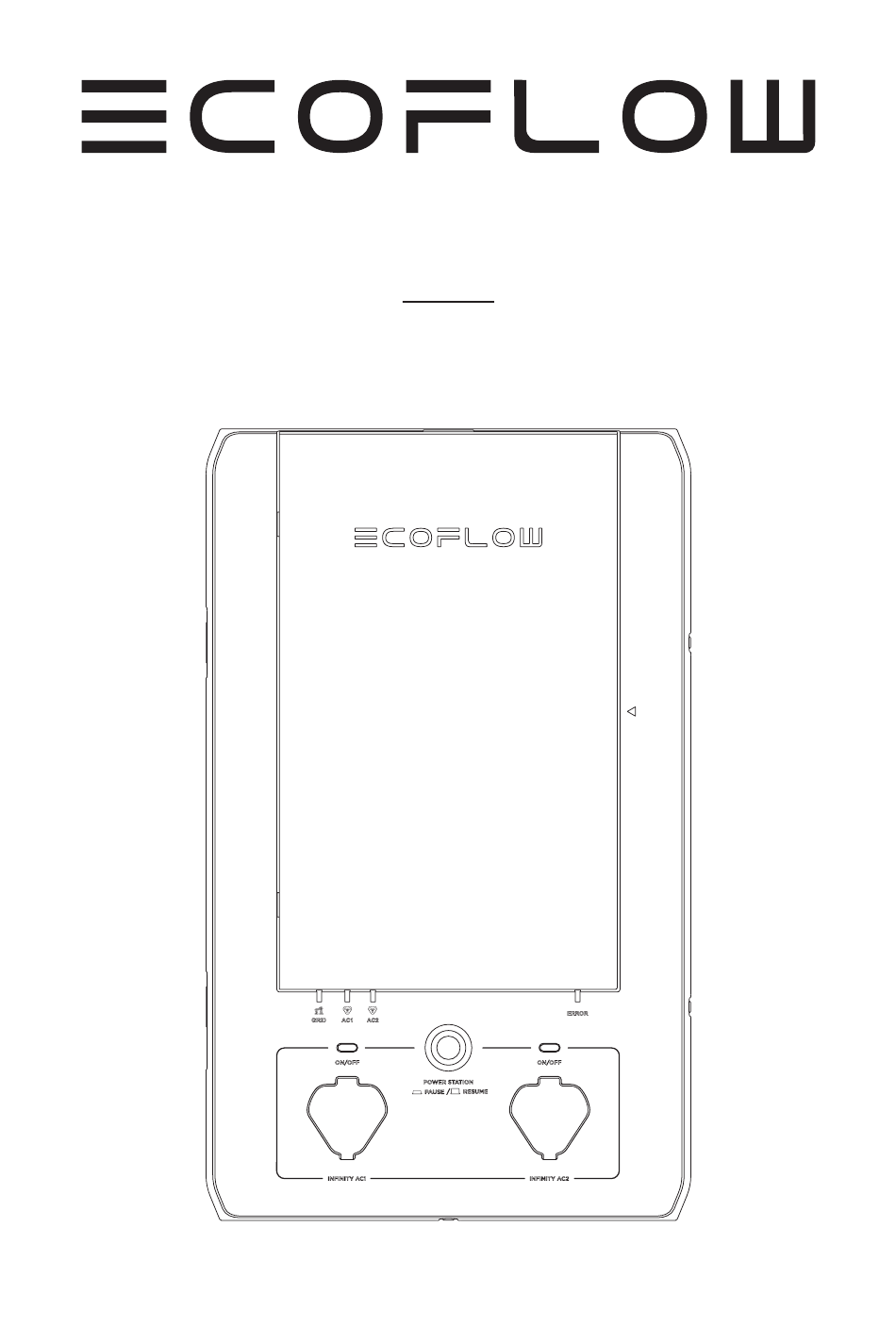

- Page 1 Smart Home Panel User Manual...
- Page 3 EcoFlow products in a way that is compliant. INTRODUCTION The EcoFlow Smart Home Panel (referred to as SHP) is a smart load side transfer switch. It works as a fast-charging docking station for the DELTA Pro in grid mode and can switch up to 10 downstream load circuits between the grid and the home backup system.
-
Page 4: Table Of Contents
CONTENTS 1. Safety Instructions 2. Specifications 3. Getting Started 3.1 General Usage 3.2 Product Details 3.3 Hardware Functions 3.4 App 4. FAQ... -
Page 5: Safety Instructions
1. Safety Instructions The product must be installed by a licensed electrician and verified by local AHJ. The SHP defaults to grid mode when without power. Please make sure the energization of load circuits is safe. Do not access the load circuit when there is an internal fault. This product is not intended to be used as a disconnect. -
Page 6: Specifications
Product Info Weight 20 lb (9 kg) Dimensions 18.1x11.8x4.7 in (460x330x120 mm) Mounting Type Wall Mount Standard Connector EcoFlow Infinity Port Ingress Rating IP20 Warranty Description 3 Years Maximum # of Circuits Controlled Rated System Voltage 120V/240V Rated Relay Module Current... -
Page 7: Getting Started
Pro at a maximum of 3400W, giving that a 30A circuit breaker is used for charging. 5. Integrated System Control: Use the EcoFlow app to monitor and control all EcoFlow appliances can work together to offer more power. 3.2 Product Details... - Page 8 1. Load Circuit Control Board The SHP can control 10 load circuits. Circuits 1, 3, 5, 7, 9 are on the left of the board and 2, 4, 6, 8, 10 on the right. A button allows users to manually reset each circuit relay if there has been an overcurrent on the circuit.
-
Page 9: Hardware Functions
6. Error Indicator If no fault exists inside the SHP, the light will be off. It will turn red if there is any fault in the product. Users can go to the app for a fault diagnostic report and reach out to the customer support representative for help. -
Page 10: App
By using EcoFlow Products, Applications, and Services, you consent to the EcoFlow Terms of Use and Privacy Policy, which you can access via the "About" section of the "User" page on the EcoFlow App or the official EcoFlow website at https://ecoflow.com/pages/terms-of-use and https://ecoflow.com/... -
Page 11: Faq
4. Can multiple Smart Home Panels be used simultaneously in one house? Yes. 5. Can I manually switch between grid and backup power? Yes. You can switch using the EcoFlow app. 6. How many circuits can SHP manage? SHP can manage up to 10 single-phase circuits or 5 split-phase circuits.
