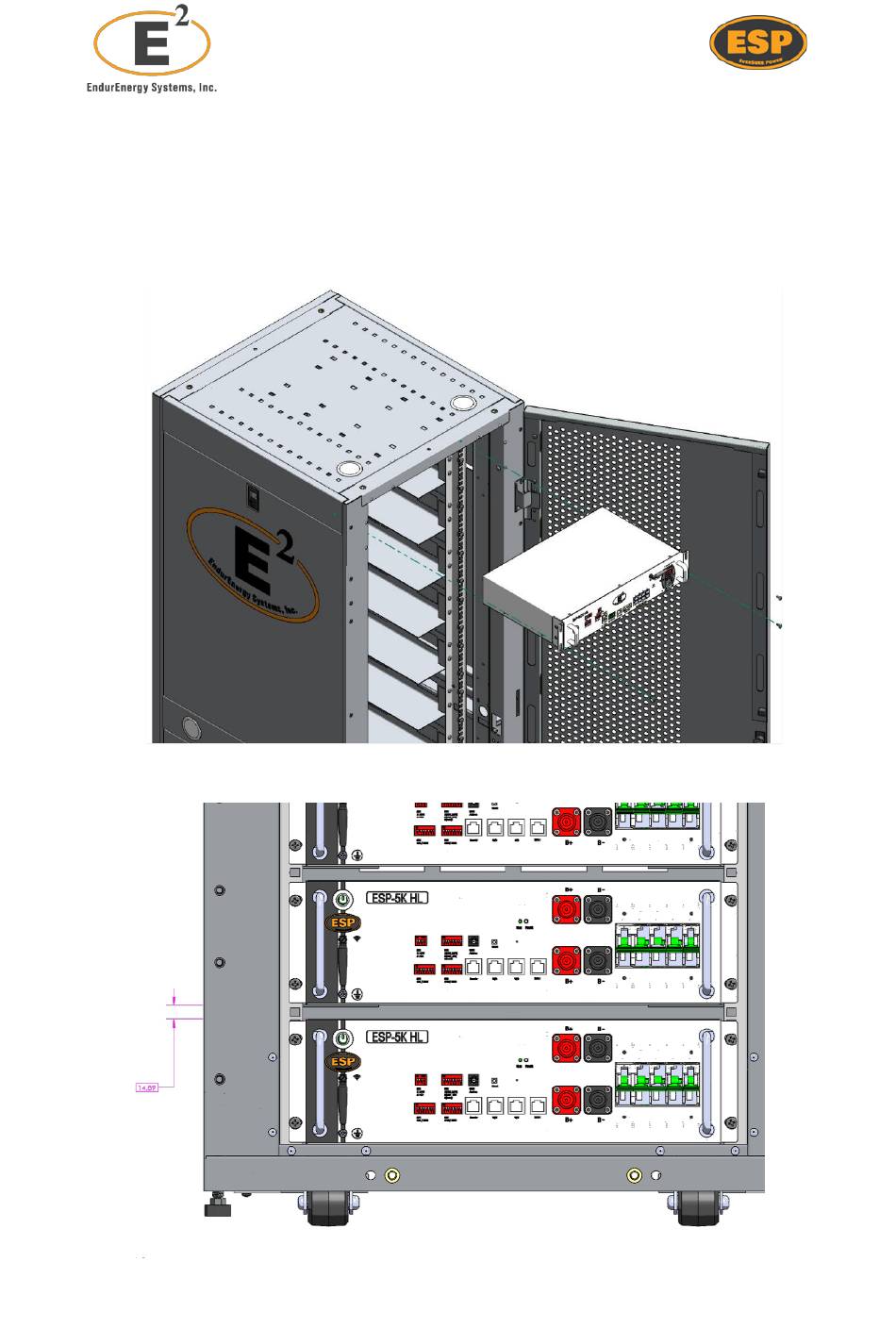

4. Slide the battery control unit into the horizontal brackets of the rack. Ensure that
each battery control unit or batteries are vertically spaced out by 1/3 U (0.583" /
14.82 mm) to facilitate heat dissipation. Utilize M6 screws to securely fasten the
batteries in place onto cage nuts, with a maximum torque of 8.7 lb*ft. If the rack
does not feature cage nuts, employ suitable screws to affix the unit firmly into the
predrilled holes.
16
