INSTRUCTION MANUAL
for CR2450-Z Zoom Gear for Canon
RF 24-50mm F4.5-6.3 IS STM
PN# 19598
FORWORD
Thank you for your purchase of a NAUTICAM
product.
At NAUTICAM, we pride ourselves in the ability to
recognize the requirements of professional as well
as amateur underwater photographers and fulfill
them through the innovative designs of our
products. We strive to achieve a high level of user-
friendliness by allowing stress-free installation and
easy operation of all important functions of the
camera.
Each product is individually inspected and water
pressure tested to ensure optimum quality.
Please read this manual carefully before using the
product, this will maximize its performance as well
as its lifetime.
Advertisement
Related Manuals for Nauticam 19598
Summary of Contents for Nauticam 19598
- Page 1 PN# 19598 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
- Page 2 Protect the interior from moisture with and/or placed within our products. and debris in order to prevent malfunction or NAUTICAM accepts no liability for any loss of leakage. captured images or the inability to capture images even if it is due to the malfunctioning of our •...
-
Page 3: Package Contents
PACKAGE CONTENTS • Make sure that you have all the included items listed below before using this product. • If some items are missing or damaged, please contact us or local Nauticam dealer. Plastic C-ring for zoom gear CR2450-Z Zoom Gear... -
Page 4: Identification Of Parts

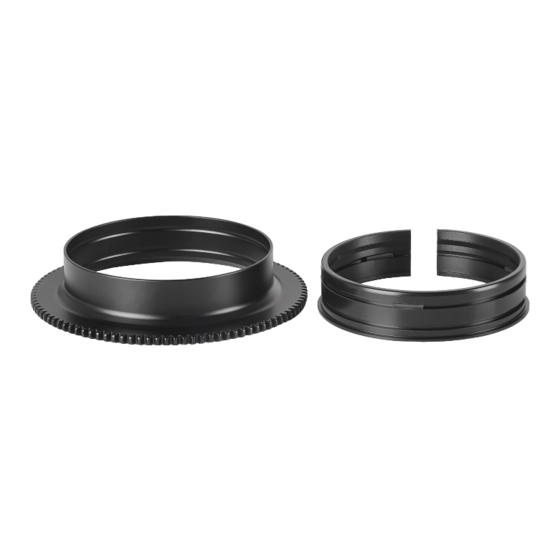

IDENTIFICATION OF PARTS Plastic C-ring for zoom gear CR2450-Z Zoom Gear Spare rubber grips Remarks: The tightness between the gear and the lens can be adjusted by removing or adding rubber grips on either sides of the plastic C-ring, total 6 rubber grips are included in the package. - Page 5 MOUNT THE GEARS ON A LENS 1. Insert the plastic C-ring for zoom gear as shown and place it over the lens. 2. Insert the zoom gear on a plastic C-ring until it reaches the flange of the plastic C-ring.
- Page 6 MOUNT THE GEARS ON A LENS 3. To remove the CR2450-Z Zoom Gear for Canon RF 24-50mm F4.5-6.3 IS STM, reverse the above steps. The tightness between the CR2450-Z Zoom Gear for Canon RF 24-50mm F4.5-6.3 IS STM and the lens can be adjusted by removing or adding rubber grips on either sides of the plastic C- ring, spare rubber grips are included in...
- Page 7 CONTROL THE GEAR The CR2450-Z Zoom Gear for Canon RF 24-50mm F4.5-6.3 IS STM can be controlled by zoom/focus knobs of the housing. After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knobs operates correctly.
-
Page 8: Specifications
SPECIFICATIONS CARE AND MAINTENANCE #19598 CR2450-Z Zoom Gear for Canon RF 24- • Soak the housing system in fresh water after 50mm F4.5-6.3 IS STM each use, during which all control buttons/knobs should be operated a few times to avoid the accumulation of salt residue;...
