Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY
ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
I I I I P P P P
DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF ARTS ARTS ARTS ARTS

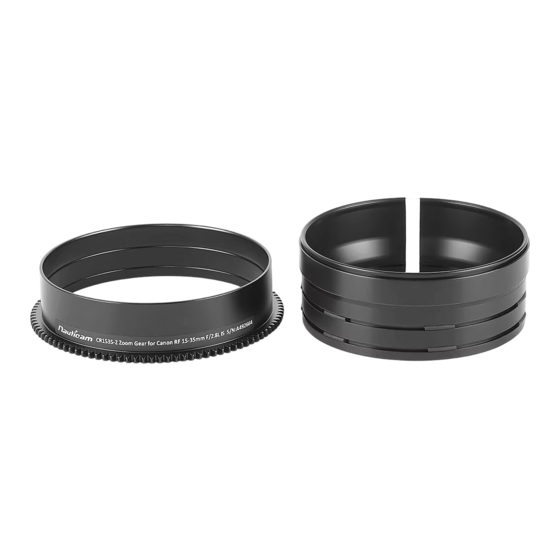

19569 19569
19569 19569
Plastic C-ring for
CR1535-Z Zoom Gear
19569 19569 19569 19569
CR1535-Z Zoom Gear
6x
Z Zoom gear Z Zoom Z Zoom gear gear + + + + gear
19571 19571 19571 19571
Plastic C-ring for
WCR1535-F Focus Gear
19571 19571 19571 19571
WCR1535-F Focus Gear
Spare Rubber grips
M M M M G G G G
OUNTING THE OUNTING THE EAR ON A LENS EAR ON A LENS
OUNTING THE OUNTING THE EAR ON A LENS EAR ON A LENS
1. Insert the plastic C-ring for zoom as shown and place it over the
lens
2. Insert the plastic C-ring for focus as shown and place it over the
lens then lock the focus c-ring as shown.
,
3. Insert the WCR1535-F Focus gear on the plastic C-ring for focus
until it reaches the flange of the plastic C-ring.
4. Insert the CR1535-Z Zoom gear on the plastic C-ring for zoom
until it reaches the flange of the plastic C-ring.
