THE FURY SMART CEILING FAN
INSTALLATION INSTRUCTIONS
Please read and save these instructions
Scan QR code to download the BOND app
These instructions are to be used in
the installation of the following
quorum fans...

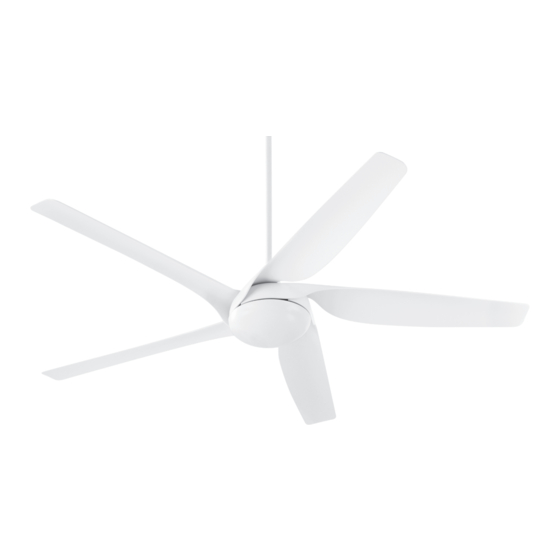

The Fury 65"
© 2021 quorum All Rights Reserved.
Smart Celiling Fan
P.O. Box 961008 • Fort Worth, TX 76161 • (817) 626-5483 • FAX (817) 626-5540
I0351-11/22
Advertisement
Table of Contents
Related Manuals for Quorum The Fury 65
Summary of Contents for Quorum The Fury 65
- Page 1 These instructions are to be used in the installation of the following quorum fans... The Fury 65" © 2021 quorum All Rights Reserved. Smart Celiling Fan P.O. Box 961008 • Fort Worth, TX 76161 • (817) 626-5483 • FAX (817) 626-5540 I0351-11/22...
-
Page 2: Warranty & Service
Complete and mail the enclosed (RGA) prior to returning the defective box and packaging. Quorum will not bear warranty card within 10 days to ensure unit or part. Call (817) 626-5483 - responsibility for any shipping damage. -
Page 3: Safety Rules
Mounting hardware (wire nuts, wood screws, machine screws, spring washers, star washers, metal washers.) IF YOU FIND THAT PARTS ARE MISSING. CONTACT YOUR DEALER FOR REPLACEMENT, OR CALL QUORUM DIRECTLY AND WE WILL MAIL REPLACEMENTS TO YOU IMMEDIATELY. -
Page 4: Mounting Options
3. MOUNTING OPTIONS 1. Disconnect the power by removing fuses WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY, or turning off circuit breakers. MOUNT THE FAN ONLY TO AN OUTLET MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. - Page 5 4. HANGING YOUR FAN (continued) 3. Take out the set screw located in the Fig. 7 Fig. 10 hanger ball, lower the hanger ball and remove the cross pin. Remove the hanger 2-pin and 3-pin ball from the hanger ball/downrod assembly Safety cable Cross pin extension...
-
Page 6: Electrical Connections
Use ONLY wall controls approved by with 16 code combinations to prevent wire from the wall (A/C supply source). Quorum. Use of unapproved wall controls possible interference from or to other remote units. The frequency switches on your If your junction box has a ground wire... - Page 7 6. COMPLETING INSTALLATION Fig. 12 1. Make sure the wiring is safely inside the outlet box as instructed in Step 5 - Electrical Connections. To install the Outlet box canopy, remove one of the two screws from the bottom of the mounting bracket Hanger bracket and loosen the other one half turn.
- Page 8 7. INSTALLING THE WALL CONTROL REMEMBER - Turn off the power! NOTE - Control must be installed within 30 feet of fan. Fig. 14 1. Remove the existing wall plate and 3. (Fig. 14) Carefully tuck the wire switch from the wall junction box. connections inside the junction box.
- Page 9 9. FAN OPERATION AND CARE 1. A ceiling fan is an environmentally 3. Clean you fan periodically using only Fig. 17 smart choice to cool as well as to help a cloth dampened with a mild detergent warm your home or office. Adjust your solution for all hardware - never use solvents.
-
Page 10: Troubleshooting
10. TROUBLESHOOTING FAN WILL NOT START 3. Use of a standard light rheostat or an EXCESSIVE WOBBLE 1. Check that the electricity has been unapproved fan wall control to control the NOTE: A small amount of wobble is turned on at the circuit breaker which had fan speed will always cause an annoying considered acceptable and should not be probably been turned off during installation. - Page 12 TROUBLESHOOTING TO PERFORM A FACTORY RESET: The Factory Reset will erase all fan settings, schedules, and disconnect from your Wi-Fi network. However, the fan will remain paired with the remote control. 1. Turn off the breaker or wall switch. 2. Turn the vreaker/switch back on. 3.
