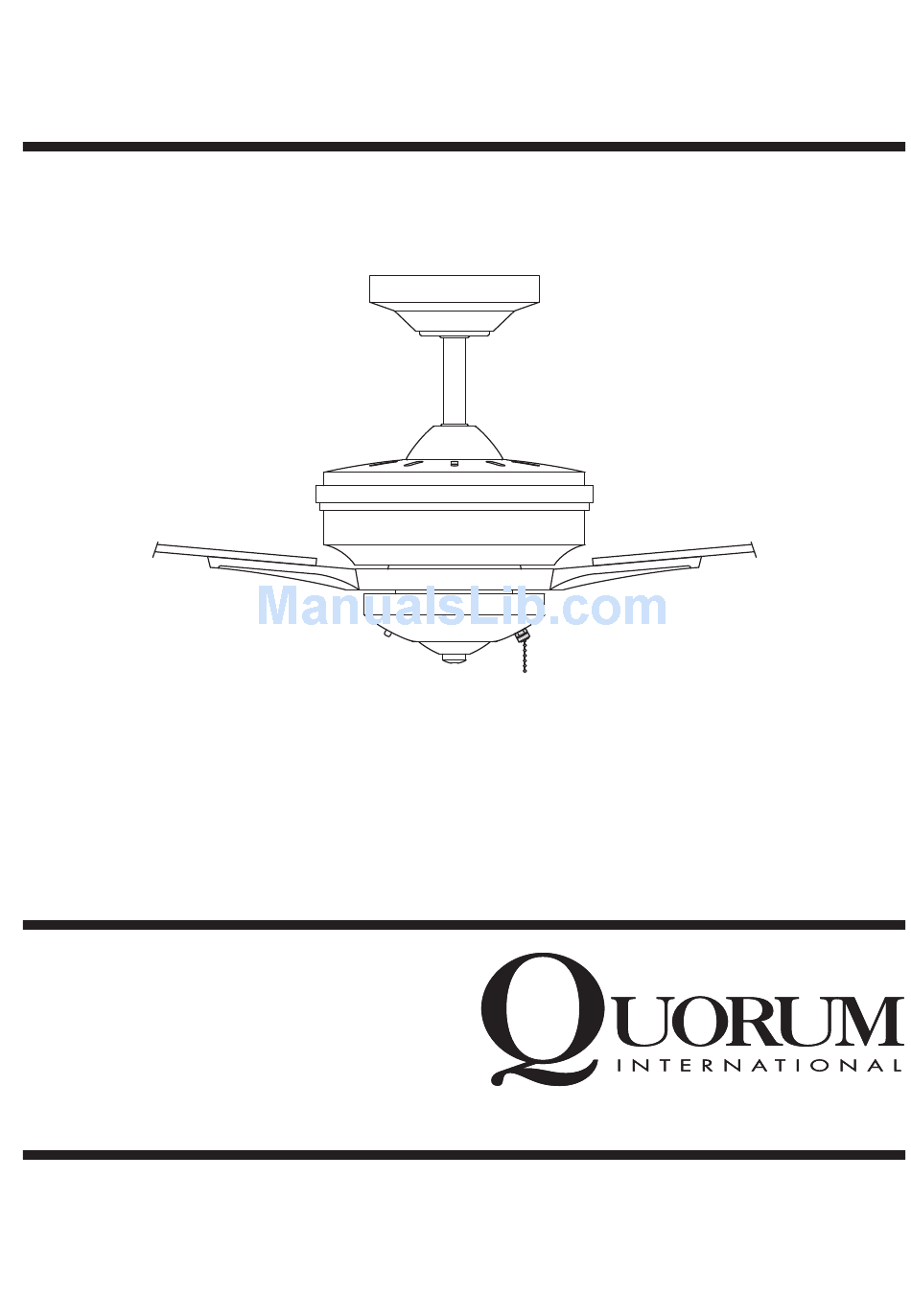

THE VALOR CEILING FAN

INSTALLATION INSTRUCTIONS

Please read and save these instructions
These instructions are to be used in
the installation of the following
QUORUM INTERNATIONAL fans...

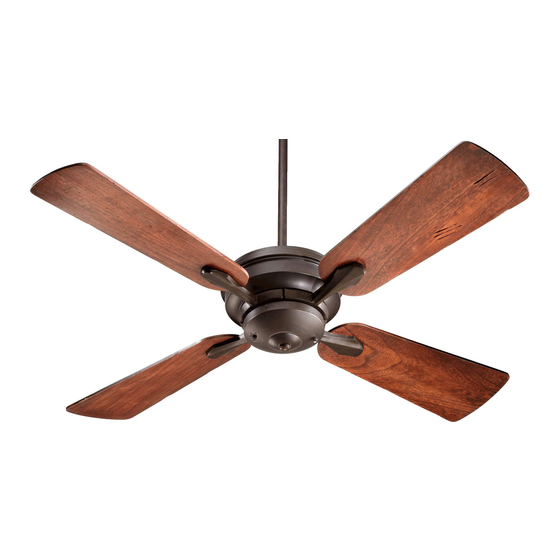

The Valor
© 2011 Quorum International. All Rights Reserved.
P.O. Box 961008 • Fort Worth, TX 76161 • (817) 626-5483 • FAX (817) 626-5540
I0206-05/11
