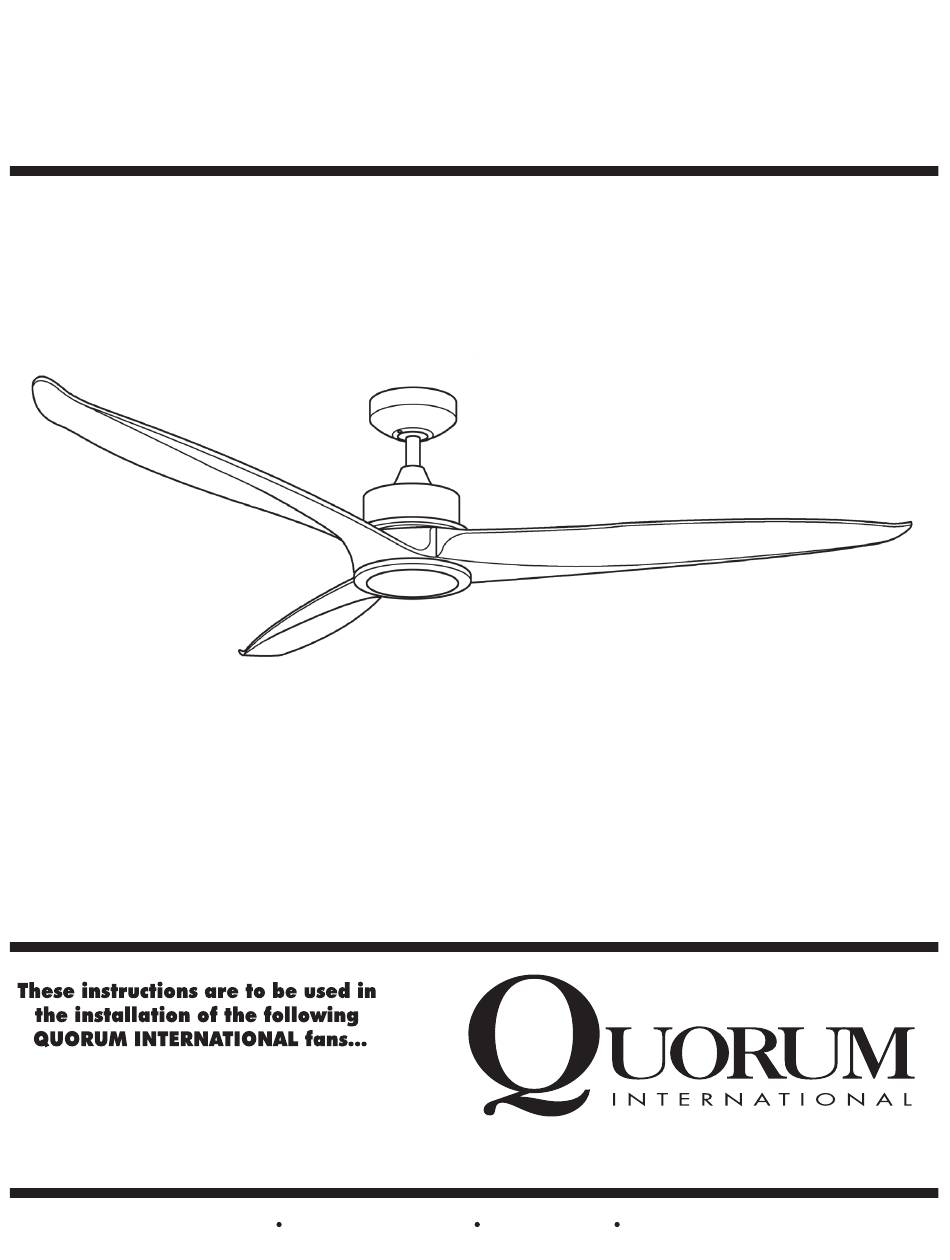

- Page 1 THE KRESS CEILING FAN INSTALLATION INSTRUCTIONS Please read and save these instructions The Kress © 2016 Quorum International. All Rights reserved. P.O.Box 961008 Fort Worth, TX 76161 (817) 626-5483 FAX (817) 626-5540 IO233-02/16...
-
Page 2: Warranty & Service
Complete and mail the enclosed (RGA) prior to returning the defective box and packaging. Quorum will not bear warranty card within 10 days to ensure unit or part. Call (817) 626-5483 - responsibility for any shipping damage. -
Page 3: Safety Rules
Mounting hardware (wire nuts, wood screws, machine screws, lock washers, spring washers, metal washers.) IF YOU FIND THAT PARTS ARE MISSING. CONTACT YOUR DEALER FOR REPLACEMENT, OR CALL QUORUM DIRECTLY AND WE WILL MAIL REPLACEMENTS TO YOU IMMEDIATELY. -
Page 4: Mounting Options
5. To hang the fan in locations where no 15º angle ceiling joist is available, a hanger support bar (with 4.5" Recessed may be required (Figure 4). Quorum downrod) outlet Boxes distributes approved hanger support bars and Outlet Boxes outlet boxes. -
Page 5: Hanging Your Fan
4. HANGING YOUR FAN WARNING - Turn off the power! Fig. 5 Fig. 8 DO NOT fasten the blades to the fan until it is assembled and hanging from the ceiling. Outlet box Hanger (j-box) bracket 1. If not already affixed to the hanger Hanger bracket bracket, place the rectangular rubber isolators between the hanger bracket and outlet box. -
Page 6: Electrical Connections
5. ELECTRICAL CONNECTIONS WARNING! SHUT OFF THE POWER WITH FUSE OR CIRCUIT BREAKER. 1. SAFETY PRECAUTIONS Fig. 9a • Disconnect electric power source by removing fuse or switching OFF circuit breaker. • Do not use with solid state fans. • Electrical wiring must meet all local and national electrical code requirements. •... -
Page 7: Completing The Installation
6. COMPLETING THE INSTALLATION 1. Make sure the wiring is safely inside the Fig. 12 Fig. 14b outlet box as instructed in Step 5 - Electrical Connections. Install the Hanger canopy by sliding up to hanger bracket bracket and place the key hole on the canopy over the screw on the hanger Canopy bracket, turn canopy until it locks in place... -
Page 8: Operating Your Transmitter
7. OPERATING YOUR TRANSMITTER Fig. 17 1. WALL AND FACE PLATES • This fan is supplied with two finish wall and face plates for the control - White and Almond. • Select finish plates and attach to the control after installing the battery and setting the frequency. - Page 9 8. FAN OPERATION AND CARE 3. Clean you fan periodically using only 1. A ceiling fan is an environmentally Fig. 18 a cloth dampened with a mild detergent smart choice to cool as well as to help solution for all hardware - never use warm your home or office.
-
Page 10: Troubleshooting
3. Be sure ON/OFF power switch on the the ceiling. cost directly form Quorum wall control is in ON position. International. Please call us at (817) 6. Check that all screws on the motor 626-5483.
