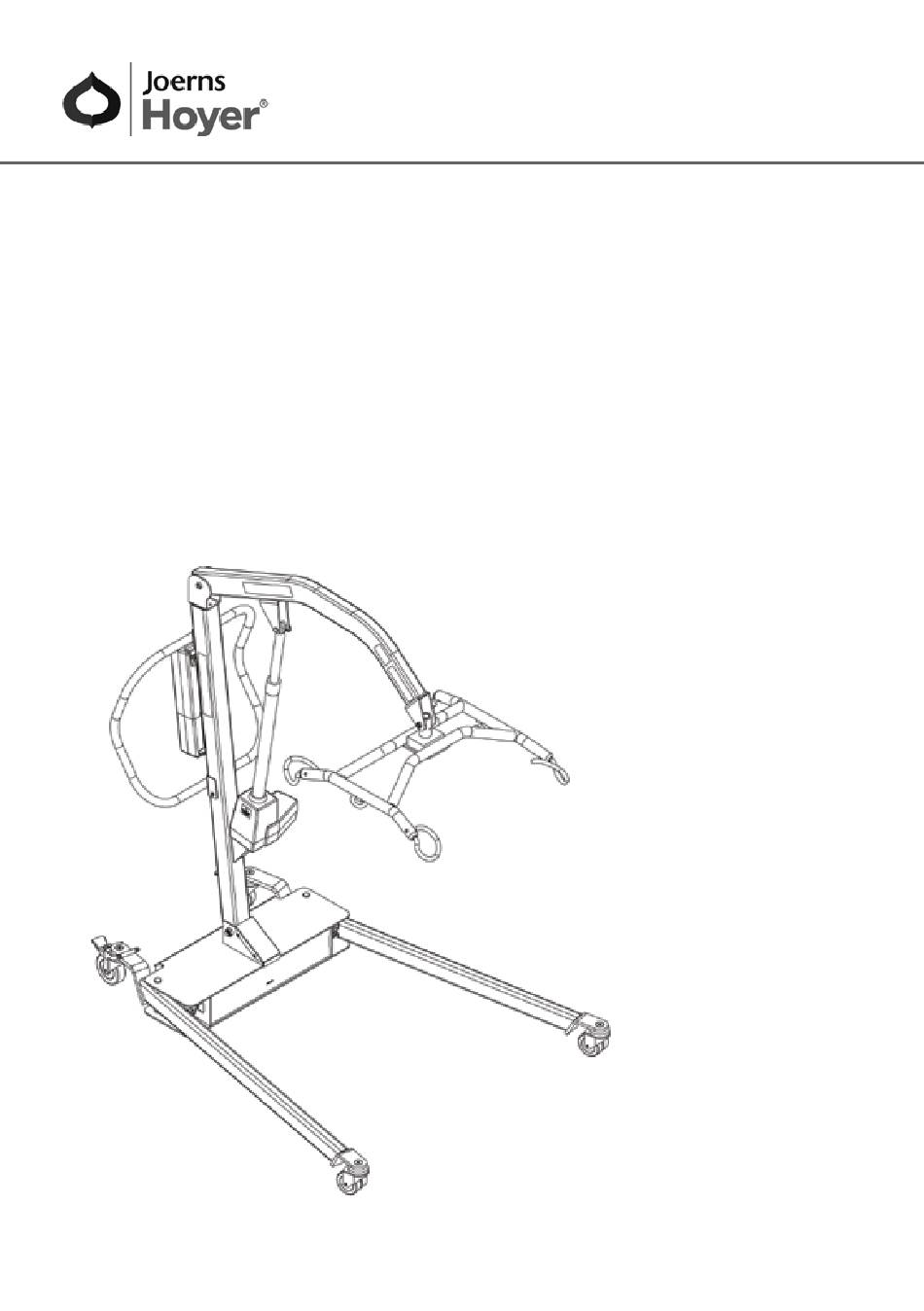

- Page 1 User Instruction Manual Hoyer HPL700 and HPL700WSC ® To avoid injury, read user manual prior to use.
-
Page 2: Table Of Contents
Hoyer ® English HPL700 and HPL 700WSC Contents 1. Introduction ........................3 2. Safety Precautions ......................4 3. Assembly and Commissioning Instructions ..............6 4. Standard Control Box & Handset .................. 10 5. Smart Monitor & Handset ....................11 6. Operating Instructions ....................15 7. -
Page 3: Introduction
If you have any questions regarding the safe use and/or assembly, maintenance or specifications of your patient lifter, you should call Joerns Healthcare toll-free at 800.826.0270. For service and repair, remember your authorized Hoyer dealer is able to provide the assistance you need. -
Page 4: Safety Precautions
Hoyer ® English HPL700 and HPL 700WSC 2. Safety Precautions Please read and follow the safety precautions listed below. The operation and use of Hoyer patient lifts is simple and straightforward. Following these few basic safety precautions will make lifting operations easy and trouble free. READ AND UNDERSTAND THE USER INSTRUCTION MANUAL BEFORE USING THE HOYER HPL700 LIFT WARNING: Important safety information for hazards that might cause serious injury. - Page 5 Hoyer ® English HPL700 and HPL 700WSC • NEVER force an operating/safety control. All controls are easy to use and do not require excessive force. • DO NOT park a loaded lift on ANY sloping surface. • DO NOT use electric lifts in a shower. •...
-
Page 6: Assembly And Commissioning Instructions
Hoyer ® English HPL700 and HPL 700WSC 3. Assembly and Commissioning Instructions WARNING The Hoyer HPL700 is heavy and will need to be lifted with care. You may need assistance ® to lift the Hoyer HPL700 from the carton. Carton Contents Place the carton in a clear working area and open carefully. - Page 7 Hoyer ® English HPL700 and HPL 700WSC Step 4 Step 5 Figure 3 Step 6 3. Lift the mast assembly from the base. The assembly needs to be rotated and positioned close to vertical so the handle is to the rear of the lift (Figure 3). WARNING Do not damage the cord that runs from the mast to the base.
- Page 8 Hoyer ® English HPL700 and HPL 700WSC Step 7 Steps 8, 9 Figure 5 Figure 4 Step 7 7. Attach the front and rear covers (Figures 4 and 5), using the screws provided. 8. Remove the key ring fastener from the boom actuator mounting bracket. Remove the pin (Figure 5).
- Page 9 Hoyer ® English HPL700 and HPL 700WSC Always Check the Following Before Operation • The mast is securely bolted into place per Steps 5 and 6. • The red emergency stop is located on the front of the control box. Twist clockwise for normal lift operation (on).
-
Page 10: Standard Control Box & Handset
Hoyer ® English HPL700 and HPL 700WSC 4. Standard Control Box & Handset Detachable Battery Pack Raise & Lower Buttons Legs Open / Emergency Stop Button Close Buttons Handset Emergency Raise & Lower Redundant Controls Actuator Handset Actuator Information Connection Connection Screen Socket... -
Page 11: Smart Monitor & Handset
Hoyer ® English HPL700 and HPL 700WSC 5. Smart Monitor & Handset Detachable Battery Pack Emergency Stop Button Smart Monitor Raise & Lower Buttons Emergency Raise & Lower Redundant Controls Legs Open / Close Legs Open / Redundant Controls Close Buttons Handset Actuator Actuator... - Page 12 Hoyer ® English HPL700 and HPL 700WSC Intended Use The Hoyer Smart Monitor is a control system for Hoyer lifts. The Smart Monitor stores useful servicing information about the lift that can be recalled when required. This servicing information includes: •...
- Page 13 Joerns Healthcare recommend that ALL routine daily checks are carried out on the lift prior to further use (for a list of daily checks, please refer to your lift user manual). Joerns Healthcare also recommend that you contact your authorised...
- Page 14 Hoyer ® English HPL700 and HPL 700WSC On-Board Redundant Controls On-board redundant controls enable the lift to be raised or lowered in the event of an emergency. If your lift incorporates powered leg positioning, there are redundant controls to both open and close the legs. Battery Information The display showing full battery means that the battery is fully charged and the lift is ready for use.
-
Page 15: Operating Instructions
Hoyer ® English HPL700 and HPL 700WSC 6. Operating Instructions Read carefully the “Important Precautions” section before attempting to use the lift. WARNING • The Hoyer lift is not intended to be a transport device. Patients in the lift should be ®... - Page 16 NOTE: For detailed fitting instructions, please refer to the user guide supplied with each sling. WARNING Joerns Healthcare recommends that slings be checked regularly and particularly before use for signs of fraying or damage. DO NOT use slings that are worn or damaged.
-
Page 17: Point Spreader Bar System
Hoyer ® English HPL700 and HPL 700WSC 7. 6-Point Spreader Bar System Follow these instructions exactly Your Hoyer HPL700 lift uses 6-point spreader bar. The removal of this system is completed easily ® by the use of a quick-release pin. This is done quickly and easily, but you must read the following safety instructions to ensure the spreader bar is safely locked into position before use. - Page 18 Hoyer ® English HPL700 and HPL 700WSC Figure 11 Once aligned in the boom slot reinsert the quick release pin fully into the sleeve until it locks into position (Figure 11). YOU MUST CHECK THAT THE PIN IS SECURELY FITTED. To do this, press your finger into the barbed end.
-
Page 19: Charging Instructions
Hoyer ® English HPL700 and HPL 700WSC 8. Charging Instructions When the power pack needs charging it is removed from the lift and fitted to an off board charging unit. 1. Remove the power pack from the lift. The pack is retained by a simple latch at the top of the power pack. -
Page 20: Maintenance Schedule And Daily Check List
- EXAMINE slings for fraying or other damage. DO NOT use any sling if damaged or if the sling shows signs of wear. MAINTENANCE Joerns Healthcare recommends regular inspection and maintenance. Please refer to the chart on the next page. -
Page 21: Lifter Maintenance Checklist
Hoyer ® English HPL700 and HPL 700WSC 10. Lifter Maintenance Checklist *THESE CHECKS SHOULD INCLUDE: = Recommended ü 1. SPREADER BAR: Check the spreader bar for freedom of rotation and swing. Check for wear on the central pivot. Check for firm attachment to the ü... -
Page 22: Specifications
Hoyer ® English HPL700 and HPL 700WSC 11. Specifications Safe Working Load ................. 700 lbs ....227kg Maximum Overall Length................56" ....1423mm Minimum Overall Length................55" ....1397mm Maximum Overall Height ................81" ....2058mm Minimum Overall Height ................57.75" ....1467mm Height at Maximum Reach ................ - Page 23 Hoyer ® English HPL700 and HPL 700WSC Electrical Specifications Batteries ..............2x12 volt Rechargeable sealed lead acid type Battery Capacity ....................3.2 Ampere Hours Charger Rated Input ..............110-240 VAC ....50/60Hz Charger Rated Output ................ 29.5 VDC ....19WMAX Electric Shock Protection Charger...........................
-
Page 24: Warranty
Joerns Healthcare’s obligation under this warranty is limited to supplying replacement parts, servicing, or replacing, at its option, any product which is found by Joerns Healthcare to be defective. Warranty replacement parts are covered by the terms of this warranty until the product’s original warranty period expires.
