Important Safety Instructions
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury, including the
following:
1.
Read and understand all instructions.
2.
Follow all warnings and instructions marked on the product.
3.
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4.
Do not use this product near water (for example, near a bath tub, kitchen
sink, or swimming pool).
5.
Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
6.
Slots and openings in the cabinet and the back or bottom are provided
for ventilation. To protect it from overheating, these openings must not
be blocked by placing the product on the bed, sofa, rug, or other similar
surface. This product should never be placed near or over a radiator or
heat register. This product should not be placed in a built-in installation
where proper ventilation is not provided.
7.
This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
8.
Do not allow anything to rest on the power cord. Do not locate this product
where the cord will be abused by persons walking on it.
9.
Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a risk of fire or electric shock. Never spill liquid of any kind on
the product.
10.
To reduce the risk of electric shock, do not disassemble this product.
Opening or removing cabinet parts other than specified access doors may
expose you to dangerous voltages or other risks. Incorrect reassembling
can cause electric shock when the appliance is subsequently used.
11.
Do not overload wall outlets and extension cords as this can result in the
risk of fire or electric shock.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sbc20-2432 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VTech sbc20-2432

Summary of Contents for VTech sbc20-2432

  • Page 1 Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product.

  • Page 2: Important Safety Instructions

    Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. Do not use the telephone to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS...
  • Page 3 Introduction The 20-2432 is an advanced cordless telephone that operates in the 2.4GHz frequency range. Your 20-2432 is capable of supporting up to a maximum of 8 Handsets. Using additional Handsets, several people can be using the cordless system at the same time. For example: •...

  • Page 4: Parts Check List

    Parts Check List Base Unit Handset AC Power Adapter Telephone Cords Batteries (2) Belt Clip Owner's Manual 2.5mm Headset...

  • Page 5: The Handset Layout

    The Handset Layout Antenna Message Waiting Indicator Earpiece Headset Jack (2.5mm) Scroll Keys Line 1 (Flash) Dialing Keys (0-9,*,#) Handsfree Speakerphone LCD Display 10. Select/OK 11. Off (Clear) 12. Line 2 (Flash) 13. Battery Compartment (back of Handset) 14. Billed Services Key 15.

  • Page 6: The Base Unit Layout

    The Base Unit Layout Message Waiting Indicator (Line1, Line2) Spare Battery Indicator Charge Indicator Charging Contacts Auto Callback Key 3-Way Calling Key Repeat Dialing Key Speakerphone Key Line 1 Key 10. Data Jack 11. Line 1 Jack 12. Line 2 Jack 13.

  • Page 7: Setup

    Base unit. Connecting to the telephone lines Your 2-Line 20-2432 will work fine even if you only have one telephone line. We recommend connecting the modular telephone cord to the jack labeled LINE 1 / L1 + L2, located on the bottom of the Base Unit. Here are steps for...

  • Page 8: Installation Of Battery In Handset

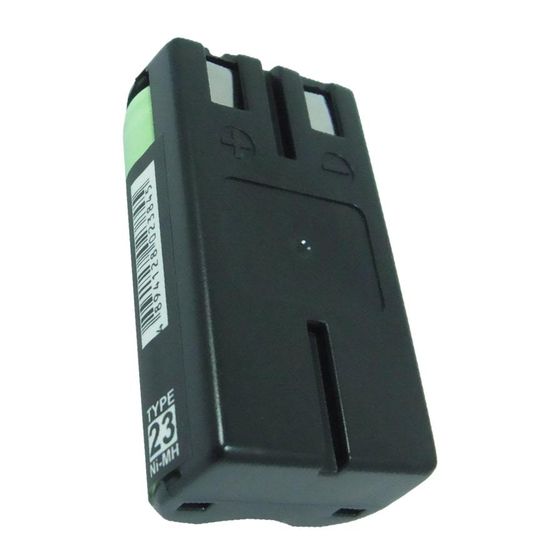

    Installation of Battery in Handset The original Handset that is shipped with your 20-2432 system will be automatically registered to the Base. This Handset is HANDSET 1. As you register additional Handsets to the system, they will be assigned extension numbers in the following order: HANDSET 2, HANDSET 3, HANDSET 4, etc.

  • Page 9: Charging Of Handset Battery

    Charging Of Handset Battery Charging of Handset Battery The Handset of your 20-2432 cordless telephone is powered by a rechargeable battery. It charges automatically whenever the Handset is in the Base Unit. You should charge the battery for 12 hours when you first receive your phone.

  • Page 10: Dial Tone

    3. In locations where there are multiple cordless telephones, separate base units as much as possible. 4. Install your telephone equipment away from heat sources and sunlight. 5. Avoid excessive moisture, dust or extreme cold. BEFORE USING YOUR HANDSET(S), CAREFULLY PEEL OFF THE PROTECTIVE...

  • Page 11: Spare Battery Charger/Power

    Spare Battery Charger/Power Backup Function The 20-2432 uses the spare battery charger in the Base Unit to provide operational backup in the event of a power failure. With a fully charged battery in the spare battery charger, you will still be able to place and receive calls from the Handset for up to one hour.

  • Page 12: Registration And Operation

    Registration and Operation Registration And Operation Of The 20-2422 Accessory Handset Your 20-2432 system can operate up to 8 Handsets. The accessory Handset consists of the following: Setup Of The 20-2422 Accessory Handset Plug the AC power adapter into an electrical outlet. Remove the Handset battery cover by pressing on the indent and sliding downward.
  • Page 13 Registration and Operation Enter Base ID Code After charging the Handset, remove it from its Charge Cradle; the screen will display: alternating with this screen: If, after charging the Handset, you see: Press NEW. You will now see the ENTER BASE ID screen as described in step 1.

  • Page 14: Handset And Base Indicators

    Handset and Base Indicators Handset and Base Icons Icon Description Line In Use indicator On steady with no number next to it when a parallel set is in use. On steady with one or more numbers next to it, indicating which extensions are using the line.
  • Page 15 Message Waiting • Lights when line is being used by the Line 1 • Flashes when another telephone on the same line (parallel Line 2 extension) is in use or when line is on hold. • Lights whenever the Handset is placed in the Base Unit Handset charging cradle.

  • Page 16: Soft Menu Functions

    Example of the idle mode display: RDL (Redial) Press RDL to display the last 5 telephone numbers dialed. The number on the top line is the most recent number dialed. • Use the scroll keys to select the desired the number.

  • Page 17: Call History (Caller Id)

    Call History (Caller ID) NOTES ABOUT CALLER ID & CALL WAITING CALLER ID These are subscription services, provided by most regional telephone service providers. You must subscribe to these services to get the benefits of these features. If you do not subscribe to Caller ID services, you can still use your 20-2432 and the other features it offers.

  • Page 18: Dial Option Shortcut

    Call History (Caller ID) To dial the displayed number, press the • desired LINE key (or HANDSFREE) on the Handset or SPEAKERPHONE on the Base. • If you need to dial the number differently than how it is displayed, press MENU. DIAL OPTION is highlighted.

  • Page 19: Save To Memory

    Handset and Base Settings SAVE TO MEMORY To save a displayed Caller ID record into the directory, press MENU. Scroll to SAVE TO MEM 7. Press OK. -OR- With the CID record displayed, press 7. The record has been stored in the directory.

  • Page 20: Low Batt Tone

    Handset and Base Settings • LOW BATT TONE (Handset only) Select this option to turn the Low Battery warning tone On or Off. Press the OFF or ON softkeys, to make your selection. Press OK to confirm your selection and return to the Handset Settings menu. When set to ON, the Handset will emit a warning tone when a Low Battery condition is detected.

  • Page 21: Enhanced Mode

    Handset and Base Settings ENHANCED MODE Your 20-2432 has an enhanced feature, designed to improve sound quality and range. If you are using your 20-2432 in an area with interference, the Enhanced Mode feature can help to improve both the sound quality and operating range.
  • Page 22 Handset and Base Settings Scroll to RENAME, then press SET. · · Using the dialing keys, enter the desired name. A guide to the letters and characters can be found in the section entitled Memory. The softkey will move the cursor to the right. Press MORE to give you the DEL (delete) and SPACE options.

  • Page 23: Register

    Register Use this option to register a Handset to the 20-2432 Base. You can register a total of eight Handsets to the 20-2432 Base. This process is activated automatically whenever a new handset is powered up in range of the 20-2432 Base.

  • Page 24: Memory

    Memory Memory The Base and each Handset can store up to 50 names/numbers in memory. Each memory location can hold up to 32 digits and up to 16 characters for the name. When prompted to ENTER NAME, use the digit keys to spell the name. Each press of a particular key causes characters to be displayed in the following order: Number Key Characters (in order)

  • Page 25: To Store A Number/Name

    Memory To Store a Number/Name: • Starting from the idle screen, enter the number you want to store in memory. If you make a mistake, press CLEAR to backspace. • Be sure to include long distance codes and pauses, (using the Pause softkey) if necessary.

  • Page 26: To Search For And Dial A

    Memory To Search For and Dial a Number/Name: • Starting from the idle screen, press the MEM softkey to review memory contents. • Using the scroll through the memory contents in alphabetical order. • Or, you can press the FIND softkey, enter the first few chararcters of the name and then press FIND to search.

  • Page 27: To Edit A Number/Name

    Memory • Press the DEL softkey. The Handset or the Base will display: • To delete this record, press THIS. • To delete all records, press ALL. To confirm the deletion of ALL records, press YES. To exit without deleting, press NO. To Edit a Number/Name •...
  • Page 28 Handset and Base Operation Redial From the Handset: Each system Handset and Base Unit will remember the last 5 phone numbers dialed. From the idle mode, press RDL. Scroll until the desired phone number is highlighted. Then press the appropriate LINE key to dial the number (follow the above instructions in Making Calls).

  • Page 29: Answering Calls

    Handset and Base Operation ERASE Press RDL. Scroll to the desired phone number, press SELECT, then press ERASE. SAVE Press RDL. Scroll to the desired phone number, press SELECT, then press SAVE. You'll then be prompted to ENTER NAME. Use the keypad to enter the letters of the name.

  • Page 30: Mute Function

    Handset and Base Operation If the Base is active on one line when the idle line rings, you will hear a special alert tone, signifying an inbound call. disruption of the call in progress. You can then: • Press SPEAKERPHONE (or HEADSET if you are using a Headset connected to the Base) to end the first call, then Press SPEAKERPHONE or HEADSET to answer the new call;...

  • Page 31: Intercom/Transfer Function

    Handset and Base Operation Adjusting Handset Volume NOTE: The Handset must be IN USE to adjust the volume. (also applies to the Handset Speakerphone) • Press the VOL key, located directly below the lower left corner of the display. • Use the keys directly below the symbols on the display to raise or lower the Handset volume.

  • Page 32: Transferring Calls

    Handset and Base Operation Highlight the desired destination of your intercom then press OK. Your screen will display CALLING HANDSET __ , CALLING BASE, or PERFORMING GLOBAL PAGE. The recipient's screen will display INTERCOM FROM HANDSET_, INTERCOM FROM BASE or GLOBAL CALL FROM HANDSET_, or GLOBAL CALL FROM BASE.
  • Page 33 Idle (on-hook) Handsets: During a call, the idle Handset(s) will display: When one or both lines are currently in use by a parallel set (a telephone device other than your 20-2432 system), all registered Handsets and Base will display: When both lines are in use at the same time, the L_EXTENSION IN USE message will alternate between 1 and 2.

  • Page 34: Message Waiting Indication

    Message Waiting Indication The 20-2432 is compatible with optional voicemail service provided by some local telephone companies. If you subscribe to this service, and you have new, unplayed messages in your voicemail, a Visual Message Waiting Indicator (VMWI) signal is transmitted by your local telephone company.
  • Page 35 If your party answers during the repeat dialing interval, your phone will ring to alert you. NOTE: It is likely that your local telephone company will assess charges to use custom features.You should check with your local service provider regarding which custom services are available in your area, and the associated costs for the intentional or unintentional use of Pay Per Use services.

  • Page 36: Belt Clip

    Your 20-2432 Handset is equipped with a 2.5mm Headset Jack for use with an optional accessory Headset for hands-free operation. If you choose to use the Headset option, you must obtain an optional accessory Headset, which is compatible with the 20-2432. Once you have a compatible 2.5mm Headset, locate the Headset Jack on the 20-2432 Handset.
  • Page 37 Avoid water Your telephone can be damaged if it gets wet. Do not use the Handset outdoors in the rain, or handle it with wet hands. Do not install your Base Unit near a sink, bathtub or shower.

  • Page 38: In Case Of Difficulty

    First check all the suggestions above. • If you still don't hear a dial tone, disconnect the Base Unit from the telephone jack and connect a different phone. If there is no dial tone on that phone either, the problem is in your wiring or local service. Contact your local telephone company.
  • Page 39 You Hear Other Calls While Using Your Phone • Disconnect your Base Unit from the telephone jack, and plug in a regular telephone. If you still hear other calls, the problem is probably in your wiring or local service. Call your local telephone company.

  • Page 40: Limited Warranty

    Limited Warranty The Manufacturer's Limited Warranty, to the original purchaser only, the mate- rial and workmanship of this product for ONE YEAR from the date of purchase. The Supplier will repair or replace, at our option, this product without charge should it fail due to a defect in material or workmanship within that time period.

  • Page 41: Fcc, Acta And Ic Regulations

    This equipment is compatible with inductively coupled hearing aids. For repair/warranty information. The telephone company may ask you to discon- nect this equipment from the line network until the problem has been cor- rected.
  • Page 42 The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most, but not all areas, the sum of all RENs should be five (5.0) or less.
  • Page 43 FCC, ACTA and IC Regulations Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned. 5. Hearing aid compatibility If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
  • Page 44 Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

  • Page 45: Technical Specifications

    Technical Specifications FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY 2401.056 - 2481.408 MHz RECEIVE FREQUENCY 2401.056 - 2481.408 MHz CHANNELS 94 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC. Actual operating range may vary according to environmental conditions at the time of use.
  • Page 46 91-000023-010-000 ISSUE 0...

  • Page 47: Table Of Contents

    Table Of Contents Important Safety Instructions Introduction Parts Check List The Handset Layout The Base Unit Layout Getting Started Setup Installation of Battery in Handset Charging Of Handset Battery Dial Tone Spare Battery Charger/Power Backup Function Registration and Operation 14. Basic Operation Handset and Base Indicators Soft Menu Functions RDL (Redial)
