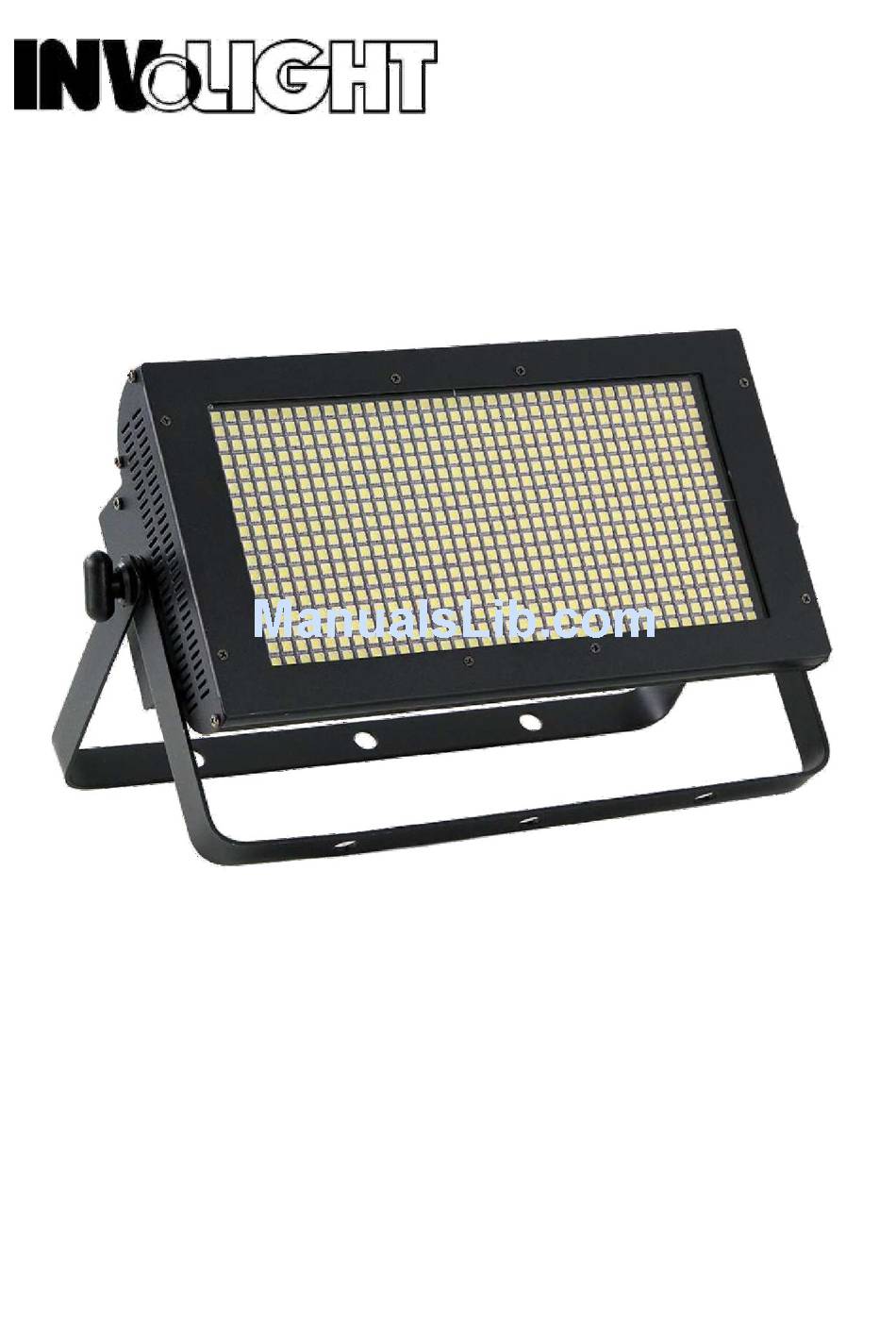

- Page 1 INVOLIGHT LED STROB500 USER MANUAL LED strobe panel, SMD5050 648*0.2W...
- Page 2 Our LED strobe panel offers many possibilities to achieve the effects which you want. It is suitable for DJs, bands, nightclubs and other performers who want LED stage light. Please read the manual before operation. A. SPECIFICATION 4 DMX512 channels Voltage: AC 100V/240V, 50Hz/60Hz Rated power: 125W SMD5050 LED: 648*0.2 white LED...
- Page 3 2. LED digit display menu instruction Display Function instruction d001 DMX address setting（001-512） A1.XX Effect 1，ABCD All strobe，Speed（00-99） A2.XX Effect 2，A->B->C->D Running-water strobe，Speed（00-99） A3.XX Effect 3，D->C->B->A Running-water strobe，Speed（00-99） A4.XX Effect 4，A->B->C->D->C->B->A Running-water strobe，Speed（00-99） A5.XX Effect 5，AC->BD Alternate strobe，Speed（00-99） A6.XX Effect 6，AB->BC->CD->DA Alternate strobe，Speed（00-99） A7.XX Effect 7，ABC->BCD->CDA->DAB Alternate strobe，Speed（00-99）...
- Page 4 4channels Function Dimmer Strobe Effect Speed 0-1 Back out 0-9 No strobe Dimmer Strobe speed 00slow 10slow 0-59 DMX512 60-79 Effect 1 80-99 Effect 2 100-119 Effect 3 120-139 Effect 4 140-159 Effect 5 160-179 Effect 6 180-199 Effect 7 200-219 Effect 8 220-255 Sound 255fast...
- Page 5 DMX address setting Each fixture must set a specific starting address. When receiving signal transmission, fixture will receive channel control signals which from the starting address. According to different requirements or easy to use, the user can set many value fixtures to the same address, also can set up a separate address for every device.
