STILLA
ASSEMBLY INSTRUCTIONS

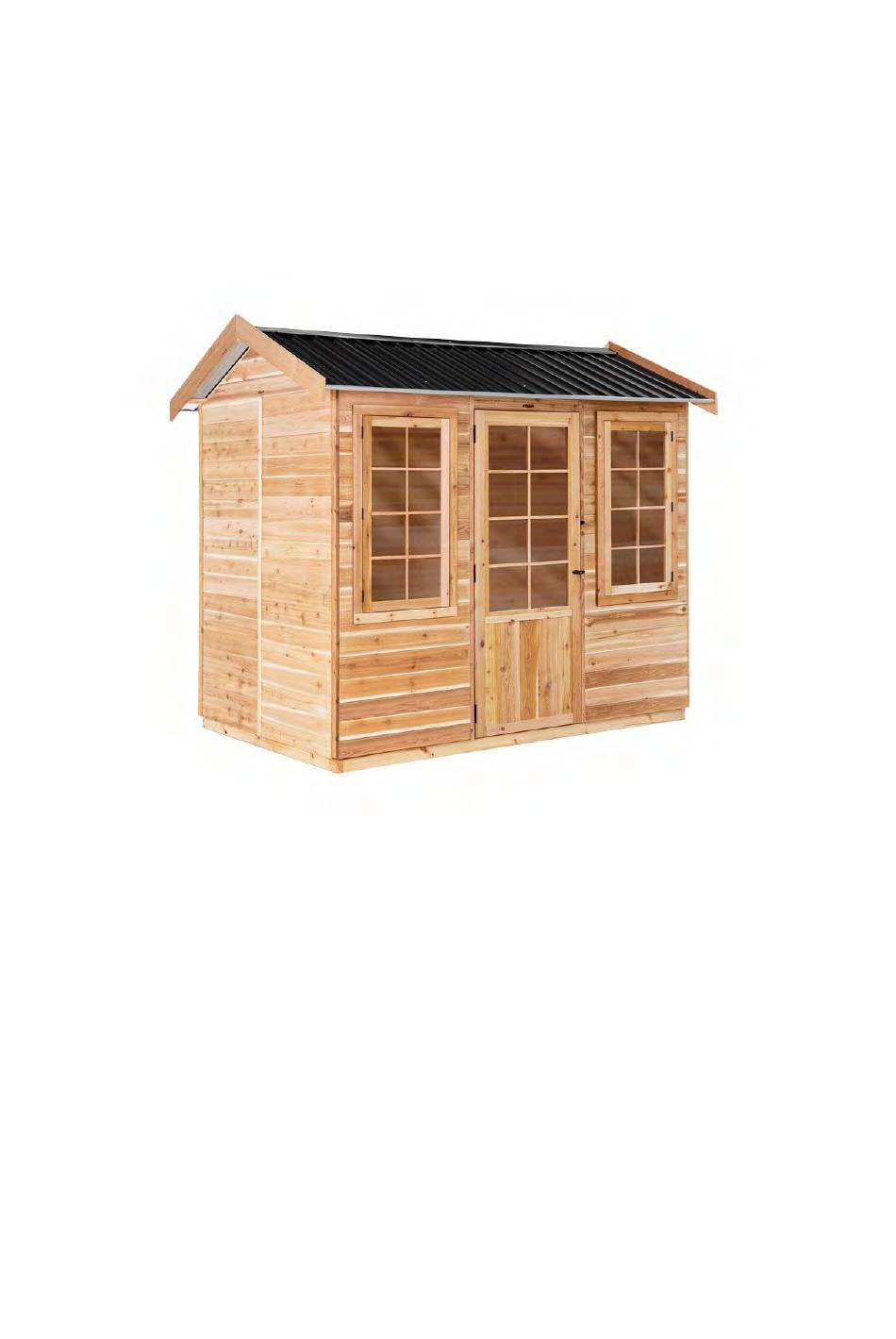

'Peppertree' 9x6
S3081
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Peppertree 9x6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STILLA Peppertree 9x6

Summary of Contents for STILLA Peppertree 9x6

  • Page 1 STILLA ASSEMBLY INSTRUCTIONS ‘Peppertree’ 9x6 S3081 Every part needed to construct your shed is included inside the pack; cedar panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully unpack all the parts & check against the parts checklist before contacting...
  • Page 2 • Review all instructions; continue to refer to instructions throughout assembly – step by step. Preparing your site • If you are installing your shed on the Stilla heavy duty floor, this can be placed on unlevelled surfaces and levelled up by using the 100x100 stumps provided. P a g e...
  • Page 3 24/10/2023 PEPPERTREE 9X6 PARTS CHECKLIST Part Code Checked Part Description Cedar Clad Ply Panel 900x2020mm (remove 2 if DD) Cedar Clad Ply Window Panel 930x2020mm Cedar Studio Window Assembly (add per additional WP) Single Colonial Door 825x1885mm 6ft Gable Cedar Clad Ply Front Panel 180x2020mm (add if DD option)
  • Page 4 24/10/2023 Floor Kit – Option (add screws) Floor Frame – 140x35 Part Code Checked Part Description End Plate 1884x140x38mm Double Joist 1280x140x38mm Single Joist 1280x140x38mm Logs 750mm 1798x800mm 1798x206mm Annex Kit – Option (add screws) 3020mm x 1450mm Part Code Checked Part Description Veranda Beam Joiner 700x70x45mm...
  • Page 5 24/10/2023 If no floor option was purchased, go to step 2.0 (Wall Assembly) SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL STEP 1.0 FLOOR KIT 1.0 – FLOOR KIT (1 of 2 floor frames) PART CODE QTY DESCRIPTION End Plate 1884mm Single Joist 1280mm Double Joist 1280mm...
  • Page 6 24/10/2023 STEP 1.1 FLOOR FRAME INSTALLATION The 9x6 floor frame comes in two parts. Install first floor frame in desired position at desired height and fasten to logs once level and square, then join and fasten next frame and repeat. 1.1 –...

  • Page 7: Floor Installation

    24/10/2023 STEP 1.2 FLOOR INSTALLATION 1.2 – FLOORING INSTALLATION PART CODE QTY DESCRIPTION Floor Board 1798x800mm Floor Board 1798x206mm 50PS 50mm Philips Screw 1.2– FLOORING INSTALLATION Fasten floor sheets to floor frame as shown in diagram below using 50PS. Bring Floor sheets in 47mm on two EP sides from the outside of the floor frame and 44mm from the two DJ sides as seen below.
  • Page 8 24/10/2023 STEP 2.0 SINGLE DOOR WALL PANEL LAYOUT The 9x6 Peppertree comes standard with a single door in the non-gable end of the shed with two window panels either side, as seen in the plan below. Follow the steps outlined in the following pages to assemble this plan in the correct order.

  • Page 9: Wall Assembly

    24/10/2023 STEP 2.1 WALL ASSEMBLY 2.1 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE DESCRIPTION 930mm Window Panel 900mm Panel 65HHS 65mm Hex head screw 2.1 - ASSEMBLY – WALL ASSEMBLY Screw through WP into P (top, centre & bottom) using 3 x 65HHS*. Cedar strip on FWP or FP should be on the door side.
  • Page 10 24/10/2023 STEP 2.2 WALL ASSEMBLY 2.2 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.2 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 11 24/10/2023 STEP 2.3 WALL ASSEMBLY 2.3 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.3 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 12 24/10/2023 STEP 2.4 WALL ASSEMBLY 2.4 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.4 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 13 24/10/2023 STEP 2.5 WALL ASSEMBLY 2.5 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.5 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 14 24/10/2023 STEP 2.6 WALL ASSEMBLY 2.6 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.6 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 15 24/10/2023 STEP 2.7 WALL ASSEMBLY 2.7 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 900mm Panel 65HHS 65mm Hex head screw 2.7 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (top, centre & bottom) using 3 x 65HHS*. * It helps to have one person adjusting from the outside and one person screwing on the inside.
  • Page 16 24/10/2023 STEP 2.8 WALL ASSEMBLY 2.8 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 930mm Front Window Panel 65HHS 65mm Hex head screw 2.8 - ASSEMBLY – WALL ASSEMBLY Screw through WP into P (top, centre & bottom) using 3 x 65HHS*. Cedar strip on FWP or FP should be on the door side.
  • Page 17 24/10/2023 STEP 2.9 DOOR HEAD INSTALL (Non-Gable end) 2.9 - ASSEMBLY PARTS – DOOR HEAD INSTALL PART CODE QTY DESCRIPTION 840x123x45mm Double Door Head Mending Plate 32PS 32mm Phillips Screw 2.9 - ASSEMBLY – DOOR HEAD INSTALL 1. Mark 75mm either side on top of door head (tongue is on top). 2.
  • Page 18 24/10/2023 STEP 3.0 DOOR HEAD INSTALL (non-Gable End) 3.0 - ASSEMBLY PARTS – DOOR HEAD INSTALL PART CODE QTY DESCRIPTION 100BS 100mm batten screw 3.0 - ASSEMBLY – DOOR HEAD INSTALL Secure Door Head by screwing 1x 100BS through front panel into bottom of Door Head, as seen below*.
  • Page 19 24/10/2023 STEP 3.1 DOOR SURROUND INSTALL 3.1 - ASSEMBLY PARTS – DOOR SURROUND INSTALL PART CODE QTY DESCRIPTION SDSS Double Door Surround Set – 2@ 840mm, 2@ 1870mm (DD option) 40mm Nail 3.1 - ASSEMBLY – DOOR SURROUND INSTALL 1. Nail top 1440mm Door Surround to bottom of door head (flush with back) using 4x 40N. 2.
  • Page 20 24/10/2023 STEP 3.2 GABLE INSTALL 3.2 - ASSEMBLY PARTS –GABLE INSTALL (1 of 2 Gables) PART CODE QTY DESCRIPTION 6ft Gable 65HHS 65mm Hex head screw 3.2 - ASSEMBLY –GABLE INSTALL (1 of 2 Gables) Carefully place gable on back wall, ensuring groove on gable slots into the tongue on the wall, as seen below.
  • Page 21 24/10/2023 STEP 4.0 ROOF FRAME ASSEMBLY 4.0 - ASSEMBLY PARTS – ROOF ASSEMBLY (REPEAT TWICE) PART CODE QTY DESCRIPTION Roof End Plate 1304x70x45mm Roof Rafter 870x70x45mm Joining Plate 812x70x45mm 75BS 75mm Batten Screw 4.0 - ASSEMBLY – ROOF ASSEMBLY (1 of 2 frames) It helps to find a flat, level surface to complete this process on.
  • Page 22 24/10/2023 STEP 4.1 ROOF INSULATION INSTALL If you did not purchase this option please skip this step 4.1 - ASSEMBLY PARTS – ROOF INSULATION INSTALL (REPEAT TWICE) PART CODE QTY DESCRIPTION RI (option) Roof Insulation 2700x1300mm 40mm Nail 4.1 - ASSEMBLY – ROOF INSULATION INSTALL (REPEAT WITH SECOND FRAME) It helps to find a flat, level surface to complete this process on.

  • Page 23: Roof Assembly

    24/10/2023 STEP 4.2 ROOF ASSEMBLY 4.2 - ASSEMBLY PARTS – ROOF ASSEMBLY (ROOF SHEETS) PART CODE QTY DESCRIPTION 1120mm roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 4.2 - ASSEMBLY – ROOF ASSEMBLY (ROOF SHEETS) It helps to find a flat, level surface to complete this process on. Position roof sheets (RS) at either end of roof frame and fasten in place as indicated in diagrams.
  • Page 24 24/10/2023 STEP 4.3 ROOF ASSEMBLY 4.3 - ASSEMBLY PARTS – ROOF ASSEMBLY (ROOF SHEETS) PART CODE QTY DESCRIPTION 1120mm roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 4.3 - ASSEMBLY – ROOF ASSEMBLY (ROOF SHEETS) Complete laying roof sheeting out on frame. Fasten roof sheets to battens in sequence shown.
  • Page 25 24/10/2023 STEP 4.4 ROOF ASSEMBLY 4.4 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 40RS 40mm Roof screw 25RS 25mm Roof screw 4.4 - ASSEMBLY – ROOF ASSEMBLY Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top is complete screw bottom off using 1 x 40RS through every rib.
  • Page 26 24/10/2023 STEP 4.5 CHANNEL ASSEMBLY If you purchased the Lean-To/Annex, leave the channel off the side you will be installing your Lean-To/Annex 4.5 - ASSEMBLY PARTS – CHANNEL ASSEMBLY PART CODE QTY DESCRIPTION 12mm self-tapping screw 1520mm Roof Channel 4.5 - ASSEMBLY – CHANNEL ASSEMBLY Slide Roof channel onto end of roof sheeting overhang.
  • Page 27 24/10/2023 STEP 4.6 ROOF END PIECE 4.6 - ASSEMBLY PARTS – RIDGE BEAM BRACKET PART CODE QTY DESCRIPTION Roof End Piece 203x70x30mm 65BS 65 Batten Screws 4.6 - ASSEMBLY – ROOF END PIECES TO GABLES Standing inside shed on ladder, screw roof end pieces to top of gable in required positions using 1x 65BS per piece.

  • Page 28: Roof Installation

    24/10/2023 STEP 4.7 ROOF INSTALLATION 4.7 - ASSEMBLY PARTS – ROOF INSTALLATION PART CODE QTY DESCRIPTION Completed roof panels 75BS 75mm Batten Screw 125BS 125mm Batten Screw 4.7 - ASSEMBLY – ROOF INSTALLATION Slide roof frame into position. Ensure point of roof frame is flush with middle of gable as seen below.
  • Page 29 24/10/2023 STEP 4.8 ROOF INSTALATION 4.8 - ASSEMBLY – ROOF INSTALLATION PART CODE QTY DESCRIPTION 40RS 40mm Roof Screws 25RS 25mm Roof Screws 4.8 – ASSEMBLY – ROOF INSTALLATION Fully fasten down the roof sheeting onto the Roof End Pieces (E) as seen below. Use 2x 25RS to screw into the top E of each side and 2x 40RS to screw into the bottom E of each side.
  • Page 30 24/10/2023 STEP 4.9 COLLAR TIE INSTALLATION 4.9 – ASSEMBLY PARTS – COLLAR TIE INSTALLATION PART CODE QTY DESCRIPTION Collar tie 40RS 40mm Roof Screw 75BS 125mm Batten Screw 4.9 - ASSEMBLY – COLLAR TIE INSTALLATION Holding Collar tie tight and level in position screw through CT into Roof Rafters in predrilled holes, using 6x 40RS per collar tie.
  • Page 31 24/10/2023 STEP 5.0 SINGLE DOOR HINGE ASSEMBLY 5.0 - ASSEMBLY PARTS – SINGLE DOOR HINGE ASSEMBLY PART CODE DESCRIPTION Butt Hinge Hinge Screw Single Colonial Door 5.0 - ASSEMBLY – SINGLE DOOR HINGE ASSEMBLY 1. Place door on side and measure out hinge positions as seen below. 2.
  • Page 32 24/10/2023 STEP 5.1 SINGLE DOOR INSTALLATION 5.1 - ASSEMBLY PARTS – SINGLE DOOR INSTALLATION PART CODE DESCRIPTION Single Colonial Door Hinge screw 5.1 - ASSEMBLY – SINGLE DOOR INSTALLATION Mark top door hinge placement on side panel, 105mm from bottom of door head. (so door sits 5mm down from top).

  • Page 33: Door Handle Assembly

    24/10/2023 STEP 5.2 DOOR HANDLE ASSEMBLY 5.2 - ASSEMBLY PARTS – DOOR HANDLE ASSEMBLY PART CODE QTY DESCRIPTION T Handle 5.2 - ASSEMBLY – DOOR HANDLE ASSEMBLY 1. Find suitable height for T Handle (generally 1050mm up door). 2. Mark and drill 12mm centre hole in position, 40mm in from door edge. 3.
  • Page 34 24/10/2023 STEP 5.3 DOOR HANDLE ASSEMBLY 5.3 - ASSEMBLY PARTS – DOOR HANDLE ASSEMBLY PART CODE QTY DESCRIPTION D-Handle Leaver 5.3 - ASSEMBLY – DOOR HANDLE ASSEMBLY Holding door in closed position, flush with VJ cladding on front - slide leaver onto T Handle and tighten using a 4mm alan key once hitting on wall stud beside door.
  • Page 35 24/10/2023 STEP 5.4 WINDOW ASSEMBLY INSTALLATION 5.4 - ASSEMBLY PARTS – WINDOW ASSEMBLY INSTALLATION PART CODE QTY DESCRIPTION Studio Window Assembly 32PS 32mm Phillips screw 5.4 - ASSEMBLY – WINDOW ASSEMBLY INSTALLATION Fit Window Assembly into hole in Window Panel*. Ensuring the window frame is square, fasten to Window Panel by screwing through perimeter of Window Panel hole into SWA**.
  • Page 36 24/10/2023 STEP 5.5 IINTERNAL WINDOW STRIP ASSEMBLY 5.5 - ASSEMBLY PARTS – INTERNAL WINDOW STRIP ASSEMBLY PART CODE QTY DESCRIPTION SIWS Studio Internal Window Strip Set- 2@ 770mm, 2@ 1240mm 40mm Nail 5.5 - ASSEMBLY – INTERNAL WINDOW STRIP ASSEMBLY 1.
  • Page 37 24/10/2023 STEP 6.0 CORNER POST ASSEMBLY 6.0 - ASSEMBLY PARTS – CORNER POST ASSEMBLY PART CODE QTY DESCRIPTION 2015mm Corner Post 40mm Nail 6.0 - ASSEMBLY – CORNER POST ASSEMBLY Hold corner post (CP) in position, nail through CP into wall stud using 6x 40N evenly spaced along CP.
  • Page 38 24/10/2023 STEP 6.1 COVER STRIP ASSEMBLY 6.1 - ASSEMBLY PARTS – COVER STRIP ASSEMBLY PART CODE QTY DESCRIPTION 2015mm Cover Strip 40mm Nail 6.1 - ASSEMBLY – COVER STRIP ASSEMBLY Hold cover strips (CS) over joins in walls, nail through CS into wall panel using 6x 40N evenly spaced per CS.
  • Page 39 24/10/2023 STEP 6.2 FASCIA ASSEMBLY 6.2 - ASSEMBLY PARTS – FASCIA ASSEMBLY PART CODE QTY DESCRIPTION 6ft Studio Fascia – 140x20 40mm Nail 6.2 - ASSEMBLY – FASCIA ASSEMBLY Hold fascias in position, parallel with Ends and join evenly at top. Nail 2x 40N through fascia into End pieces to fasten.
  • Page 40 24/10/2023 STEP 6.4 EXTERNAL FIXED WINDOW STRIP ASSEMBLY If you did not purchase a fixed window panel, please skip this step. 6.4 - ASSEMBLY PARTS – COVER STRIP ASSEMBLY PART CODE QTY DESCRIPTION 2015mm Cover Strip (per fixed window) 40mm Nail (per fixed window) 6.4 - ASSEMBLY –...
  • Page 41 24/10/2023 STEP 6.5 6.5 - ASSEMBLY PARTS – FIXING TO BASE PART CODE QTY DESCRIPTION 65HHS 65mm Hex Head Screw 6.5 - ASSEMBLY – FIXING TO BASE Once shed is in desired position and doors are sitting evenly you can now fix your shed to the base.
  • Page 42 24/10/2023 STEP 7.0 ANNEX FRAME ASSEMBLY If you did not purchase this option please skip this step 7.0 - ASSEMBLY PARTS – ANNEX FRAME PART CODE QTY DESCRIPTION Veranda Beam 1510x70x45mm Veranda Beam Joiner 700x70x45mm Veranda Outer Beam 1510x140x35mm VOBJ Veranda Outer Beam Joiner 700x140x35mm Veranda Rafter 1320x70x45mm 65BS...
  • Page 43 24/10/2023 42 | P a g e...
  • Page 44 24/10/2023 STEP 7.1 ANNEX ROOF 7.1 - ASSEMBLY PARTS – ANNEX ROOF PART CODE QTY DESCRIPTION 1450mm Veranda Roof Sheet 40RS 40mm roof screw 25RS 25mm roof screw 7.1 - ASSEMBLY – ANNEX ROOF It helps to find a flat, level surface to complete this process on. Position veranda roof sheets (VRS) at either end of roof frame and fasten in place as indicated in diagrams.
  • Page 45 24/10/2023 STEP 7.2 ANNEX ROOF 7.2 - ASSEMBLY PARTS – ANNEX ROOF PART CODE QTY DESCRIPTION 1450mm veranda roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 7.2 - ASSEMBLY – ANNEX ROOF Complete laying roof sheeting out on frame. Fasten roof sheets to beams in sequence shown.
  • Page 46 24/10/2023 STEP 7.3 ANNEX ROOF 7.3 - ASSEMBLY PARTS – ANNEX ROOF PART CODE QTY DESCRIPTION 40RS 40mm Roof screw 25RS 25mm Roof screw 7.3 - ASSEMBLY – ANNEX ROOF Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top is complete screw bottom off using 1 x 40RS through every rib.
  • Page 47 24/10/2023 46 | P a g e...
  • Page 48 24/10/2023 STEP 7.5 ANNEX ROOF INSTALATION 7.5 - ASSEMBLY PARTS – ANNEX ROOF INSTALLATION PART CODE QTY DESCRIPTION Veranda Posts 2400x90x90mm 100BS 100mm batten screw 200PB 200mm M12 Post Bolt M12 Washer 7.5 - ASSEMBLY – ANNEX ROOF INSTALLATION 1. Using at least 3 people, butt the veranda roof hard up under shed roof as seen below. Support front of veranda roof while fastening through frame into shed wall studs, using 4x 100BS.
  • Page 49 24/10/2023 STEP 7.6 ANNEX FASCIA 7.6 - ASSEMBLY PARTS – ANNEX FASCIA PART CODE QTY DESCRIPTION Veranda fascia 1350x75x20mm block cedar 40mm nail 7.6 - ASSEMBLY – ANNEX FASCIA Once fascia’s are on shed, trim annex fascia to butt in and finish correctly. Nail through fascia using 4 x 40N per fascia.
  • Page 50 24/10/2023 FLOOR 49 | P a g e...
  • Page 51 24/10/2023 50 | P a g e...
  • Page 52 24/10/2023 51 | P a g e...
  • Page 53 24/10/2023 52 | P a g e...
  • Page 54 24/10/2023 53 | P a g e...

  • Page 55: Product Maintenance

    24/10/2023 TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.stilla.com.au/warranty and complete the online form. We recommend that you complete this step once you have finished installing your product.
  • Page 56 24/10/2023 SHOW US YOUR SHED We would love to see a photo of your STILLA product installed in your backyard. Please upload this image when completing the warranty registration. Alternatively, you can send the photos by email to sales@stilla.com.au. If you require any assistance, please feel free to call or email.
