STILLA PADDINGTON User Manual

8x6
Hide thumbs

Advertisement

Quick Links

Download this manual

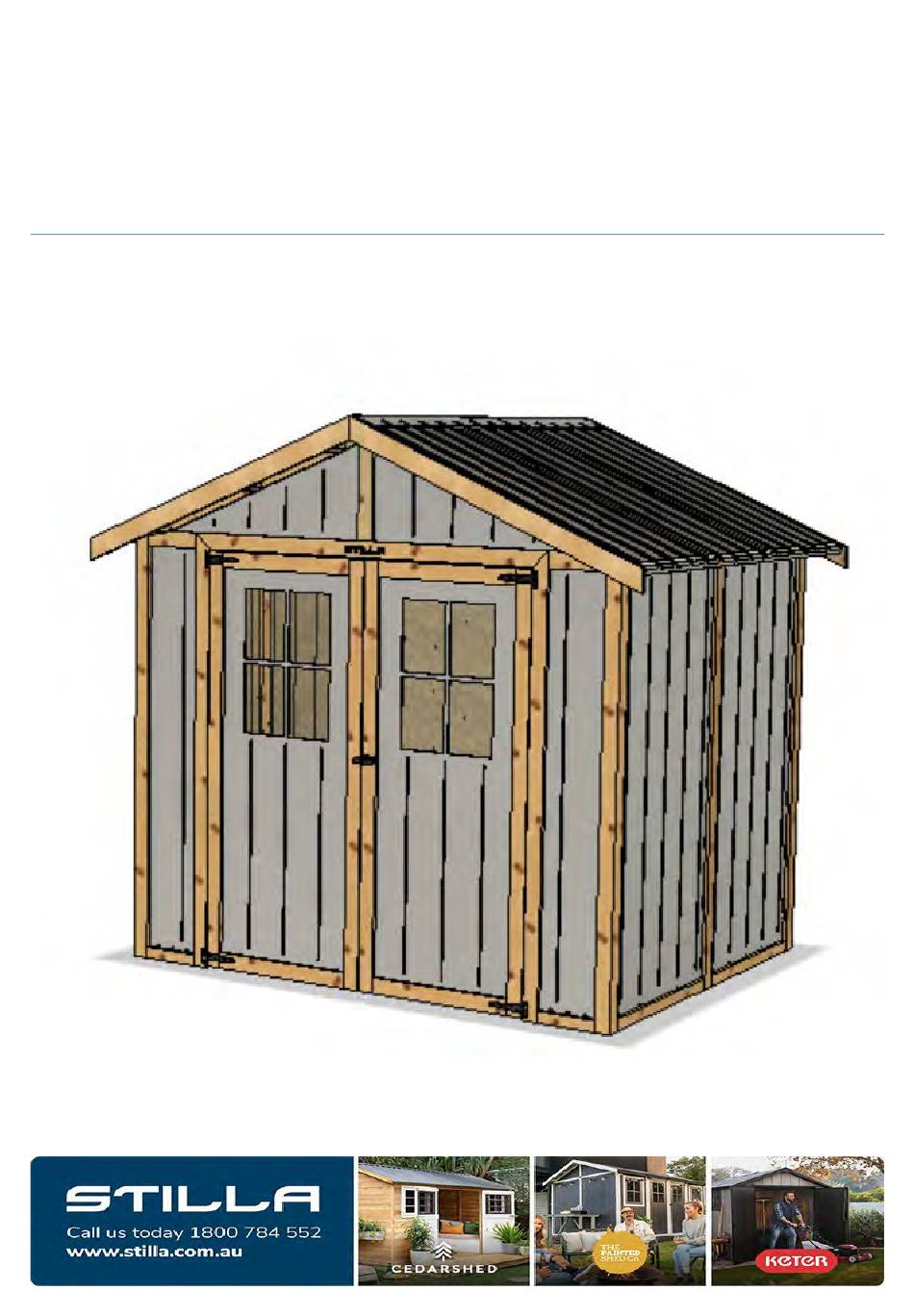

PADDINGTON [8x6]
USER MANUAL
IMPORTANT
Read carefully. Retain for future refence
1
PADDINGTON [8x6]
V4—2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the PADDINGTON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STILLA PADDINGTON

Summary of Contents for STILLA PADDINGTON

  • Page 1 PADDINGTON [8x6] USER MANUAL IMPORTANT Read carefully. Retain for future refence PADDINGTON [8x6] V4—2023...
  • Page 2 & roong. Fully unpack all the parts & check against the parts checklist, that follows. Please contact customer service about anything you believe may be missing or damaged. Thank-you Protect Painted surfaces when laid down for processing. PADDINGTON [8x6] V4—2023...
  • Page 3 Light coloured crayon/chinagraph pencil white/yellow. Phillips Bit (PH2), Baen Screw Bit, Phillips Bit #2, 5/16” Hex driver, Drill Bits 3mm & 4mm, Countersink Bit (or Combina- on.) This product requires a minimum of 2 persons to assemble. PADDINGTON [8x6] V4—2023...
  • Page 4 DG1217A1 Pine, 70mm x 45mm x 1217mm, Double Groove, Apex Angle top. SG1926A1 Pine 70 x 45 x 1926mm, Single Groove. Miter Top [160 ] DG1926 Pine 70x45x1926mm, Double Groove Plain ends PS32CSK, Phillips Screw #6 x 32mm, Countersunk. Panel Fixing to Frame PADDINGTON [8x6] V4—2023...
  • Page 5 Phillips Screw #6 x 32mm, Countersunk. Panel Fixing angle cut to Door Frame GPL, Gable Panel Le, 1095 x 454 x 9.5mm, 22.5 Degree Pitch GPR, Gable Panel Right, 1095 x 454 x 9.5mm, 22.5 Degree Pitch PADDINGTON [8x6] V4—2023...
  • Page 6 , Sch Screw #6 x , Door Stop Top, Weathertex 1800 x 83mm 20mm, Flat Buon Head, DS Fixing to plus Hinge Screws [12] Door (x8) MISCELLANEOUS TU MO/SM, Paint Touchup Sil-MO/SM, Silicone sealant 300ml – coloured Monument / Surfmist 500ml PADDINGTON [8x6] V4—2023...
  • Page 7 nished shed. PRE-DRILL - 3mm CP1926 [4] DG1926 [2] SG1926A [2] Drill internal webs only DG1130 [1] DG1217A [1] SG1740A2 [1] SG877A2 [4] DG295T2 [2] PADDINGTON [8x6] V4—2023...
  • Page 8 Wall Panels Top / Boom Plates [12] FS1130 FB20 MO/SM FS877T2 [24] SG877T2 P1130x1824 P877x1824 PS32CSK DG1130T2 FB20, [2] PS32CSK, 8 x 18mm 4 x Single Groove Top plate [877 Panels] 2 x Double Groove Top plate [on 1130 Panels] PADDINGTON [8x6] V4—2023...
  • Page 9 If to be placed in side walls SG877T2 is required Back Overall height of panels should be equal to vercal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. PADDINGTON [8x6] V4—2023...
  • Page 10 Note: Front Panel Groove is oset. Check FB20 MO/SM [6] Overall height of panels should be equal to vercal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. PADDINGTON [8x6] V4—2023...
  • Page 11 Fit Corner Post [1] 877 Panel Assy Or WP Assy CP1924 PS32CSK 2mm Gap 18mm Note: Layout Lines Construct a panel with Corner post on Right Rear face [as per image >] With SG top Rail [for Side wall] PADDINGTON [8x6] V4—2023...
  • Page 12 First Corner [1] 1130 Panel Assy + DG Top +CP PS32CSK 877 Panel Assy + SG Top 877mm SG Top 1130mm DG Top PADDINGTON [8x6] V4—2023...
  • Page 13 Back Wall DG1130 DG1217A1 PS32CSK 1130mm Panel Assy [DG Top] CP1924 Angle cut to TOP FB32CSK [4] PADDINGTON [8x6] V4—2023...
  • Page 14 PS32CSK [4] PADDINGTON [8x6] V4—2023...
  • Page 15 Side Walls 877mm Panel Assy [SG Top] CP1924 PS32CSK FB32CSK [6] Mirror assembly for other side wall. PADDINGTON [8x6] V4—2023...
  • Page 16 PADDINGTON [8x6] V4—2023...
  • Page 17 Front Panel Assy PS32CSK PS32CSK Rear panels hidden for clarity PADDINGTON [8x6] V4—2023...
  • Page 18 Door Head [14] SG1740A2 FB20MO/SM DST1800 FB20MO/SM [13] PADDINGTON [8x6] V4—2023...
  • Page 19 CHECK structure for Square, once conrmed, t remaining Screws to panels FB20MO/SM x 24 PS32CSK x 100 PADDINGTON [8x6] V4—2023...
  • Page 20 GABLES—Preparaon SG1299A2 DG451A1 [12] [12] BS100 FB112 PRE-DRILL - 3mm SG1299A2 DG451A2 18mm 18mm PADDINGTON [8x6] V4—2023...
  • Page 21 GABLE Angle—Addional Drilling for Facia Block DRILL 4mm—Through Hole required SG1299A2 [4] DRILL 4mm—Minimum Depth 50mm FB112 [12] BS100 [3] PADDINGTON [8x6] V4—2023...
  • Page 22 GABLES—Assembly [46] SG1299A2 PS32CSK DG421A2 PADDINGTON [8x6] V4—2023...
  • Page 23 Check Gable posion is correct before Fixing in place with screws. PS32CSK PADDINGTON [8x6] V4—2023...
  • Page 24 GABLE—Door Side PADDINGTON [8x6] V4—2023...
  • Page 25 PADDINGTON [8x6] V4—2023...
  • Page 26 ROOF— Half Roof assembly [2] RF1797 RF1125 RS1400 MO / SM CH1200 MO / SM [84] [48] [16] RS50 MO / SM BS75 RD-AS2 MO / SM PADDINGTON [8x6] V4—2023...
  • Page 27 BS75 [6] BS75 [6] PADDINGTON [8x6] V4—2023...
  • Page 28 ROOF— Sheeng Top of Roof sheet has material folded upwards. PADDINGTON [8x6] V4—2023...
  • Page 29 Sheets 1/2 overlap 2. Overlap 2 Sheets 2/3 overlap 1. PADDINGTON [8x6] V4—2023...
  • Page 30 Align Top sheet and x Top Corners rst. Lower Roof Screws placed in Peaks of Sheet. Do not Overghten. PADDINGTON [8x6] V4—2023...
  • Page 31 PADDINGTON [8x6] V4—2023...
  • Page 32 RS50 MO/SM [6] Lower Roof Screws placed in Peaks of End Fixings placed in Valley nearest to end of Sheet. Do not Overghten. Frame. PADDINGTON [8x6] V4—2023...
  • Page 33 4 Peaks 4 Peaks RD-AS2 MO / SM [6] PADDINGTON [8x6] V4—2023...
  • Page 34 BS75 [10] per roof Half Align Base of Roof frame with Boom of Gable Frame PADDINGTON [8x6] V4—2023...
  • Page 35 ROOF— Fix Sheeng To Facia Block RS50 MO/SM [3] x [4] PADDINGTON [8x6] V4—2023...
  • Page 36 Gable assembly [24] F1500 PS32CSK PS32CSK [6] PADDINGTON [8x6] V4—2023...
  • Page 37 Make sure peak of ridge cap is in line with peak of fascia's. Screw through ridge cap into 2nd and 8th Ribs, from each end of the roof. Drive these screws through and into roof frame. PADDINGTON [8x6] V4—2023...

  • Page 38: Door Hanging

    Door Hanging Door Assy [L & R] TH150B 2mm > Le Hand shown—Right Mirrored. PADDINGTON [8x6] V4—2023...
  • Page 39 Hinge Screws [3] Top Hinge Shown—Boom similar. PADDINGTON [8x6] V4—2023...
  • Page 40 PADDINGTON [8x6] V4—2023...
  • Page 41 Door Furniture DS1820x90 BB100S THB [Fixings Kit] DS115x90 FB20 MO/SM PADDINGTON [8x6] V4—2023...
  • Page 42 BH20 MO/SM [5] PADDINGTON [8x6] V4—2023...
  • Page 43 Lock Posion 12mm and 2 x 6mm Note—Clearance Hole in Door Stop required PADDINGTON [8x6] V4—2023...
  • Page 44 PADDINGTON [8x6] V4—2023...
  • Page 45 Oponal: Trim excess length o Lock Square sha. PADDINGTON [8x6] V4—2023...
  • Page 46 Lower drop bolt posion PADDINGTON [8x6] V4—2023...

  • Page 47: Anchor Kit

    Anchor Kit [14] BKT6040G SB650 RS25 Bracket Posions PADDINGTON [8x6] V4—2023...
  • Page 48 Masonry Drill 5mm, 50mm Deep PADDINGTON [8x6] V4—2023...

  • Page 49: Finishing Touches

    Once paint is dry, seal boom and sides of panels with supplied Silicone sealant. TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.slla.com.au/warranty and complete the online form.
  • Page 50 Oponal—Opening Window [12] Opening Window Assembly FB20 MO/SM BH20 [12] PADDINGTON [8x6] V4—2023...
  • Page 51 Paddington INSTALLATION GUIDE HEAVY FLOOR [8x6] 8x6 Floor V3 - 2022...
  • Page 52 SAFETY & CARE GUIDELINES Take care when liing and moving components. Flooring sheets and assembled frames require a minimum of 2 per- sons to li safely. Team liing of heavy items is recommended to avoid injury. Ensure you fully understand the use of power tools recommended for use in assembling this oor. Eye protecon should be worn when necessary, when operang power tools.
  • Page 53 Floor Frame Dimensions 8x6 Floor V3 - 2022...
  • Page 54 Kit Contents L750 SJ11818 Log 100x100x750mm,H4 Suitable for uneven ground. It is recommended that the posts Single Joist 140x38x1707mm are concreted 400-500mm in the ground. DJ1818 EP1200 Double Joist 140x38x1818mm End Plate [Drilled] 140x38x1200mm YT505198 YT1798198 Floorboard 1798 x 198mm Floorboard 505 x 339mm.
  • Page 55 Assemble Sub Frames [4] Qty listed per Frame [Qty] DJ1818 EP1200 [18] BS100 SJ1818 Assemble Frames: Assemble individual frames rst. Screw through predrilled holes in End Plate (EP) into Single and Double Joists (DJ & SJ) using 100mm baen screws (100BS). Assemble the 4 frames. The frames are used to mark out the post locaons for the oor.
  • Page 56 BS100 [3] BS100 [2] 8x6 Floor V3 - 2022...
  • Page 57 BS100 [8] 8x6 Floor V3 - 2022...

  • Page 58: Sub Frame

    Sub Frame Floor Nogs [F350] are ideal for use as Joist spacer. Sub Frame [2] 8x6 Floor V3 - 2022...
  • Page 59 Posion 1st frame Qty listed per Frame [Qty] L750 [16] BS100 Sub. Frame Lay Frame in installaon locaon. Mark inside of frame posions, on ground. [Red doed circle on diagram below]. Remove material to achieve level frame It is recommended that the posts are concreted 400-500mm in the ground. Note: Double Joist (DJ ) should be orientated to the outside of the Floor Frame Structure.
  • Page 60 Secure Posts to Frame: Predrill [post] screw posion prior to ng screws, four per post. Stagger the alignment of the Screw to avoid interference of the screws Posts and xings arrangement. NOTE: L750 sits under DJ extension 8x6 Floor V3 - 2022...
  • Page 61 Levelling and lling in: Once posts are ed and secured, move frame to prepared locaon, level the posts and frames. A level frame is essenal Concrete / Backll each post into locaon, Check and adjust level and square before concrete sets up / Tamping in. 8x6 Floor V3 - 2022...
  • Page 62 Posion 2nd frame Sub Frame L750 BS65 BS100 Note: DJ’s to outside edge of frame assembly. Lay Frame in installaon locaon. Mark inside of frame posions, on ground. [Red doed circle on diagram above]. Remove sucient material to achieve level frame 8x6 Floor V3 - 2022...
  • Page 63 BS65 [4] Fix Frames together BS100 [8] 8x6 Floor V3 - 2022...
  • Page 64 Floor Nogs [12] FN350 BS100 Flooring Long length runs this way >> [4] BS100 per Nog. Fixing the top of Nog ush with top of the frame will assist with oor level. Final check for frame/s level should be made before Flooring is ed. Please ensure posts and frames are level before nalizing Concreng or Tamping in of posts.
  • Page 65 Flooring YT1798198 YT1798800 YT505800 [50] YT505198 PS50CSK 8x6 Floor V3 - 2022...
  • Page 66 Note: There are crosses printed on the Floorboard surface. These are used for manu- facturing control and not alignment points for xings. PS50CSK—[3] per Joist PS50CSK—[ 2] covering Nogs 8x6 Floor V3 - 2022...
  • Page 67 8x6 Floor V3 - 2022...
  • Page 68 8x6 Floor V3 - 2022...
  • Page 69 8x6 Floor V3 - 2022...
  • Page 70 Anchoring of Shed to Floor PRE—DRILL Frame Sills in posions indicated below PS75 85˚ toward centre of Frame sill. 8x6 Floor V3 - 2022...
  • Page 71 PS75 [2] 85˚ 8x6 Floor V3 - 2022...
  • Page 72 TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.slla.com.au/warranty and com- plete the online form. We recommend that you complete this step once you have nished installing your product.
