9. Capacitance
Accuracy±(a% of
Range
Resolution
reading +b digit)
1000nF
1nF
10.00µF
0.01µF
±(1.9%+5)
100.0µF
0.1µF
1µF
10000µF
±2.5%+5)
* Auto range (Least significant digit is allowed to be 50 under open circuit.)
* Range to ensure accuracy: 1%~100% of range
* It is recommended to measure in REL mode if measured capacitance is
≤100nF.
* "OL" is displayed if the input capacitance is ≥10000uF.
10. Continuity
Accuracy±(a% of
Range
Resolution
reading +b digit)
Circuit open: The buzzer
keeps silent with the
resistance set at about ≥50Ω.
600.00Ω
0.01Ω
Circuit connected: The
buzzer sounds with the
resistance set at about ≤20Ω.
* Open circuit voltage: About 2V
* The buzzer may sound if the resistance of circuit is 20Ω~250Ω.
* The buzzer sounds with LED light flashing.
11. Diode
Accuracy±(a% of
Range
Resolution
reading +b digit)
6.0000V
0.0001V
±(0.5%+10)
* If the measured value is less than 0.1200V, the red light is lit up and the
buzzer makes a long beep.
* Least significant digit is allowed to be about 5 under short circuit.
23
12. Current probe measurement (ACA/DCA)
Overload
protection
Function
600V AC/DC
* Frequency response: 45Hz~400Hz (Sinusoidal wave; frequency response
refers to the intrinsic frequency response of MP731065)
* Current probe measurement is an input mode of analogue voltage, the
conversion ratio is 1mV/1A, and the accuracy specified is the intrinsic
accuracy of MP731065 (eliminate the error of current probe).
* Least significant digit is allowed to be about 5 under short circuit.

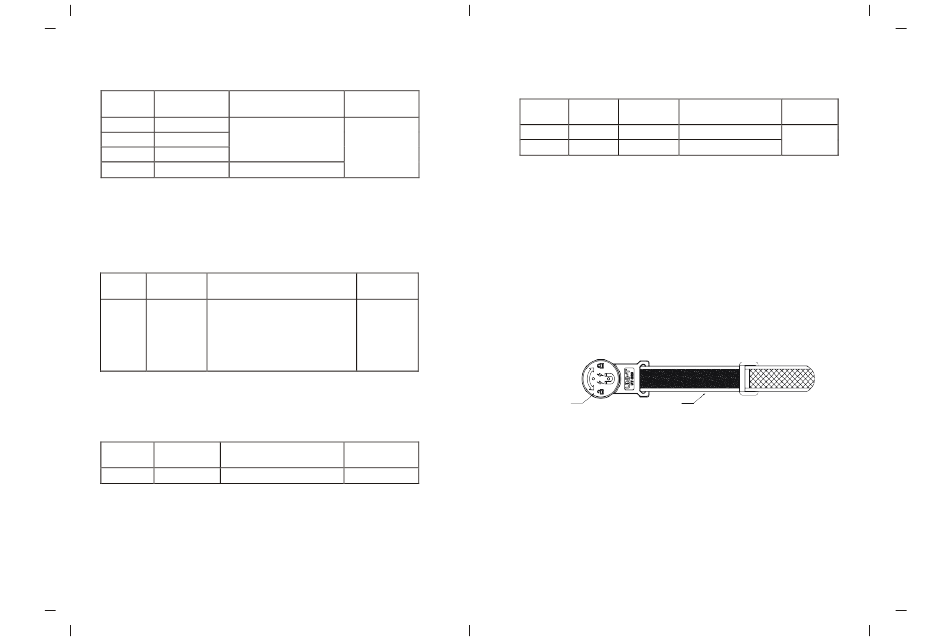

XIV. Use of magnetic hanger
Overload
1. Overview and features
protection
Magnetic hanger, composed of magnet and hanging strap, can be used to
hang onto power distribution cabinet, photovoltaic combiner box,
automobile bodywork etc, allowing for hands-free measurement and
helping in positioning of meter.
600V AC/DC
Magnet
2. Installation
Overload
protection
Select appropriate installation way (install from right or left side, as shown
on P28), grip the magnet by hand, put the magnet into plastic housing,
600V AC/DC
and rotate the magnet in a suitable direction. The magnet is held tightly
due to the housing structure and the magnet construction.
Accuracy±(a% of
Range
Resolution
reading +b digit)
ACA
600.0A
0.1A
±(1.8%+3)
DCA
600.0A
0.1A
±(0.8%+2)
Hanging strap
Overload
protection
600V AC/DC
24
