2023 V1.0

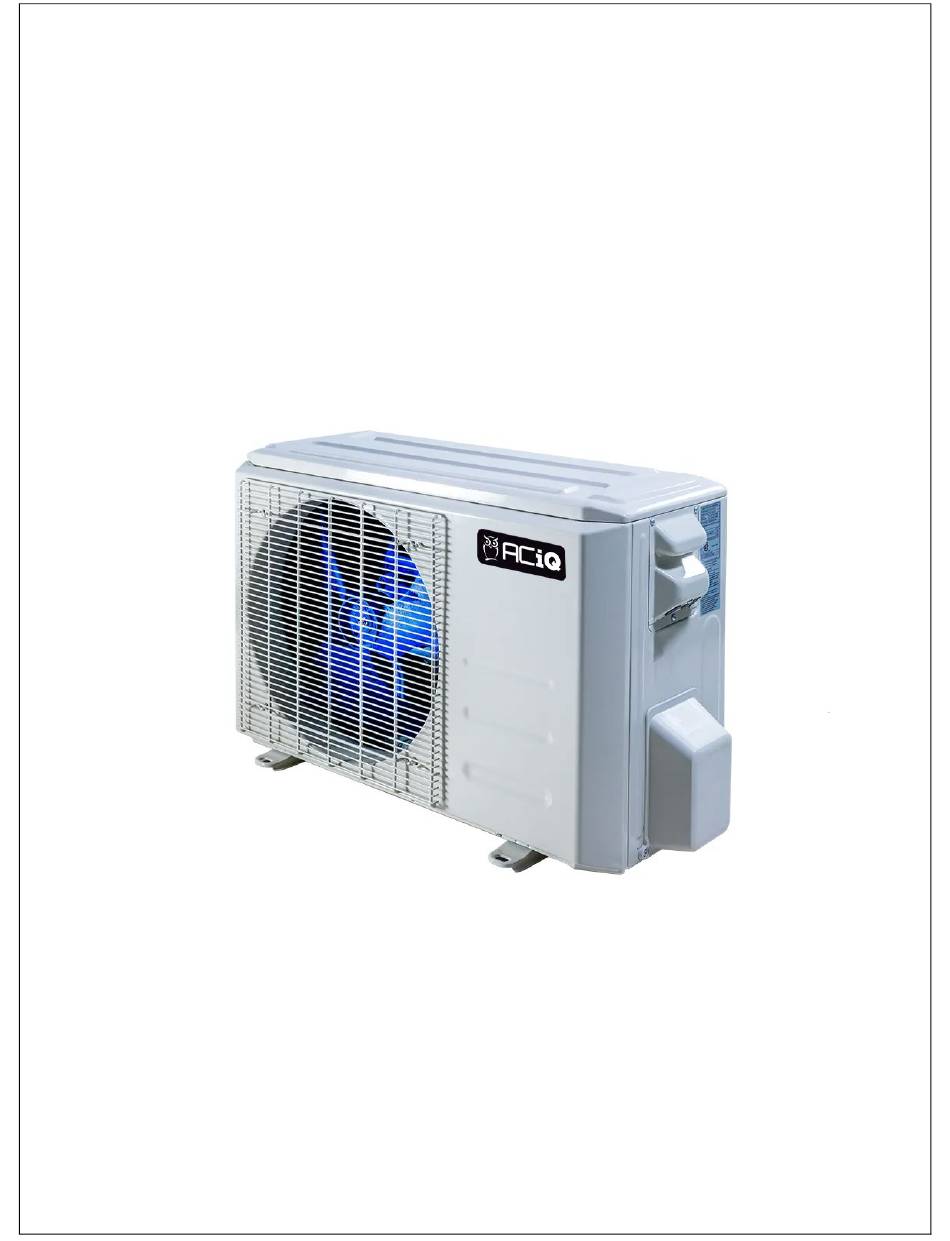

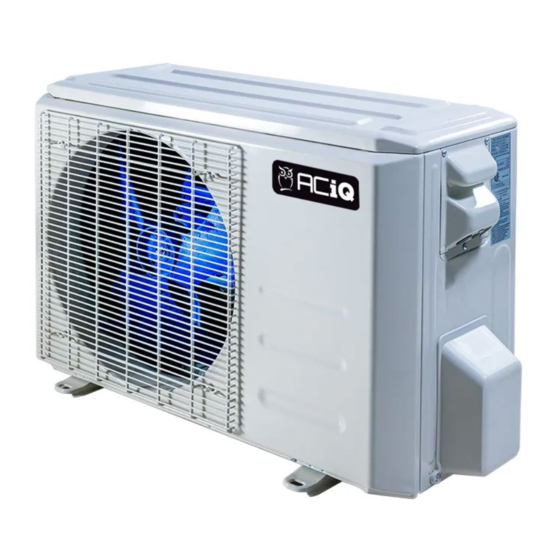

ACiQ Next Gen Heat Pump Condenser

ACiQ-24-HPB

ACiQ-36-HPB

ACiQ-48-HPB

ACiQ-60-HPB

Dual Fuel System - ACiQ Heat Pump or AC, 3rd Party Furnace, 3rd Party

Congratulations on purchasing an ACiQ Next-Generation heat pump condenser. Using this

system in a dual fuel application will dramatically reduce your heating costs in the winter

compared to a standard system setup. The heat pump will provide heat in most conditions and

Quick Start Guide

the furnace will provide backup heat at extreme low temperatures.

Dual Fuel

ACiQ-24-EHPB

ACiQ-36-EHPB

ACiQ-48-EHPB

ACiQ-60-EHPB

Coil

ACiQ-18-AC

ACiQ-24-AC

ACiQ-30-AC

ACiQ-36-AC

ACiQ-48-AC

Table of Contents

Need help?

Do you have a question about the ACiQ-24-EHPB and is the answer not in the manual?

Page 1 ACiQ-60-EHPB ACiQ-36-AC ACiQ-48-AC Dual Fuel System - ACiQ Heat Pump or AC, 3rd Party Furnace, 3rd Party Coil Congratulations on purchasing an ACiQ Next-Generation heat pump condenser. Using this system in a dual fuel application will dramatically reduce your heating costs in the winter compared to a standard system setup.
Page 2 2023 V1.0 Requirements 1. The indoor coil (often referred to as the evaporator coil or A-Coil) must have a heat pump compatible Thermostatic Expansion Valve (TXV). 2. The indoor coil must be sized correctly. At a minimum it must match the nominal BTU capacity of the selected outdoor unit. It is permissible to oversize the indoor coil by up to 1 ton (12,000 BTU/H).
Page 3 2023 V1.0 Thermostat Wiring IMPORTANT – Every thermostat is different. Modern thermostats will have an “Installer Setup” or “Advanced Options” mode. A dual fuel setup requires a heat pump compatible thermostat, which will call on the furnace only as backup heat at extreme low temperatures.
