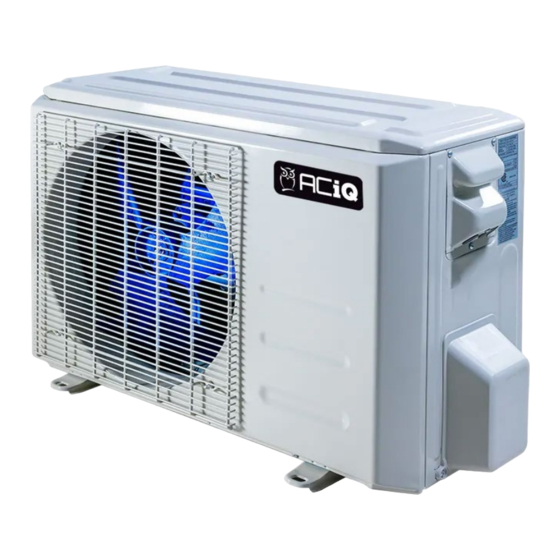

Next gen heat pump condenser dual fuel
Hide thumbs Also See for ACiQ-24-HPB:

Advertisement

Quick Links

2023 V1.0

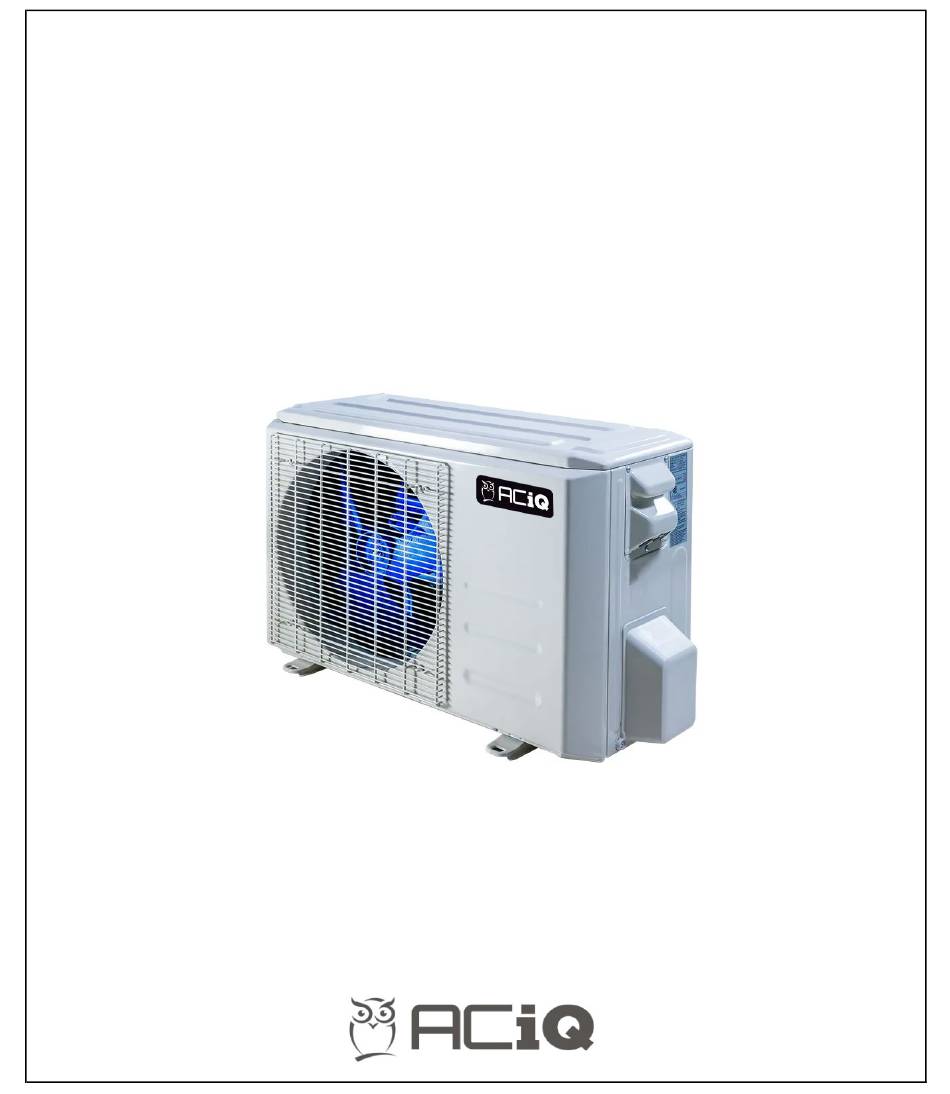

Quick Start Guide
ACiQ Next Gen Heat Pump Condenser
Dual Fuel
ACiQ-24-HPB
ACiQ-36-HPB
ACiQ-48-HPB
ACiQ-60-HPB
Dual Fuel System – ACiQ Heat Pump, 3rd Party Gas Furnace, 3rd Party Coil
Congratulations on purchasing an ACiQ Next-Generation heat pump condenser. Using this system in a dual fuel
application will dramatically reduce your heating costs in the winter compared to a standard system setup. The heat
pump will provide heat in most conditions and the furnace will provide backup heat at extreme low temperatures.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACiQ-24-HPB and is the answer not in the manual?

Questions and answers

Summary of Contents for ACIQ ACiQ-24-HPB

  • Page 1 Dual Fuel System – ACiQ Heat Pump, 3rd Party Gas Furnace, 3rd Party Coil Congratulations on purchasing an ACiQ Next-Generation heat pump condenser. Using this system in a dual fuel application will dramatically reduce your heating costs in the winter compared to a standard system setup. The heat...
  • Page 2 2023 V1.0 Requirements 1. The indoor coil (often referred to as the evaporator coil or A-Coil) must have a heat pump compatible Thermostatic Expansion Valve (TXV). 2. The indoor coil must be sized correctly. At a minimum it must match the nominal BTU capacity of the selected outdoor unit.
  • Page 3 2023 V1.0 System Setup Reference Guides SET DIP SWITCHES AS SHOWN Wired To Line Voltage Power - Must Also Connect Outdoor Ground Wire Disconnect 24 Volt Hot (Power) 24 Volt Common Heat/Cool Stage 1 Wired To Heat/Cool Stage 2 (High Demand) Selected Reversing Valve (Energized In Heating) Indoor Unit...
  • Page 4 2023 V1.0 Thermostat Wiring IMPORTANT – Every thermostat is different. Modern thermostats will have an “Installer Setup” or “Advanced Options” mode. A dual fuel setup requires a heat pump compatible thermostat, which will call on the furnace only as backup heat at extreme low temperatures. Here are general guidelines –...
