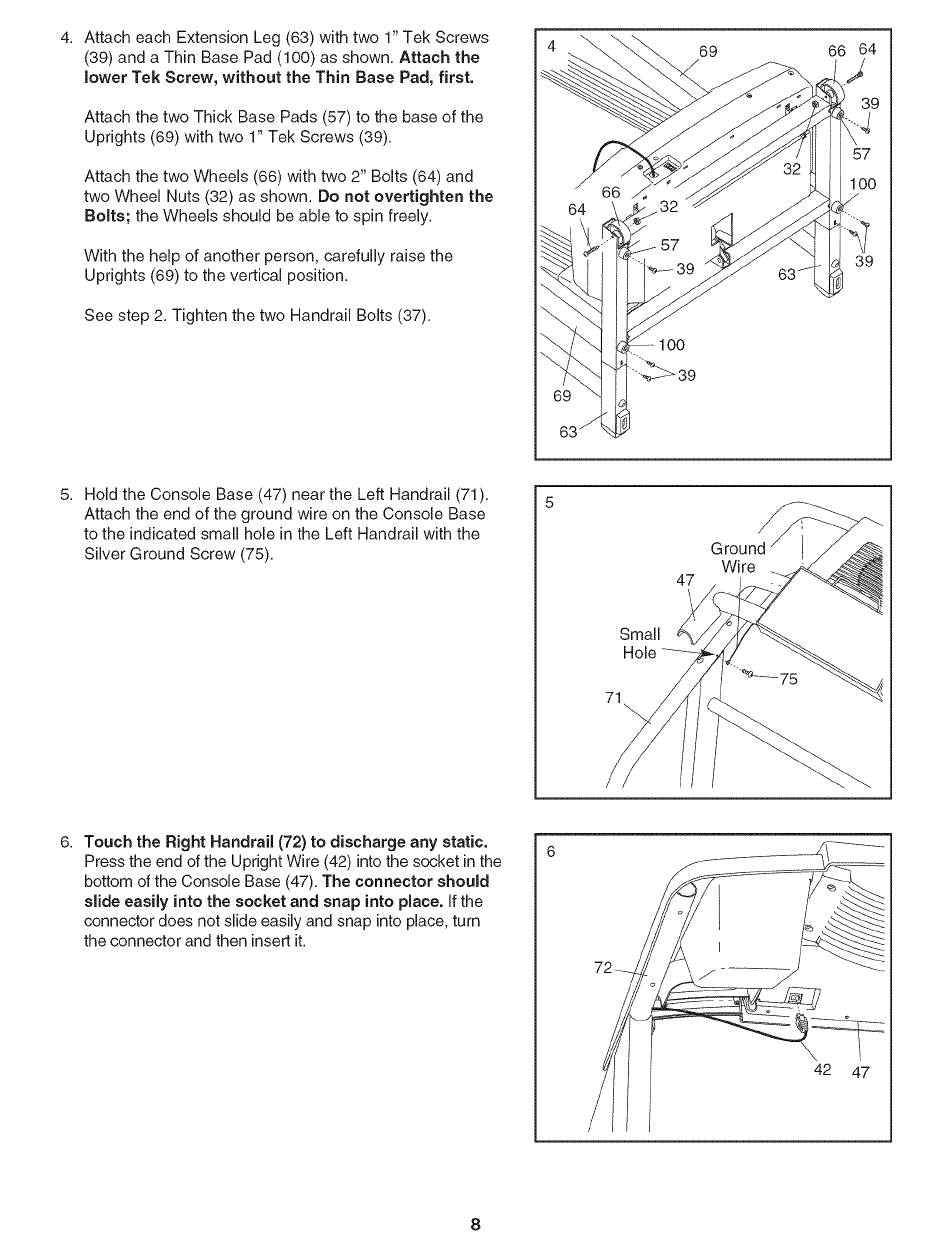

AttacheachExtension L eg(63)withtwo1"TekScrews
(39)anda ThinBasePad(100)asshown. A ttachthe
lower
Tek Screw, without
the Thin Base Pad, first.
Attach the two Thick Base Pads (57) to the base of the
Uprights (69) with two 1" Tek Screws (39).
Attach the two Wheels (66) with two 2" Bolts (64) and
two Wheel Nuts (32) as shown. Do not overtighten
the
Bolts; the Wheels should be able to spin freely.
With the help of another person, carefully raise the
Uprights (69) to the vertical position.
See step 2. Tighten the two Handrail Bolts (37).
4
64
69
100
.... _ 39
66 64
Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
Silver Ground Screw (75).
Small
71
47
Ground
Wire
Touch the Right Handrail (72) to discharge any static.
Press the end of the Upright Wire (42) into the socket in the
bottom of the Console Base (47). The connector
should
slide easily into the socket and snap into place. If the
connector does not slide easily and snap into place, turn
the connector and then insert it.
42
47
