Mounting Without Carrier Plate; Mounting With Carrier Plate (Option) - EWM T drive 4 Rob 2 Operating Instructions Manual

Design and function
Installation
5.2.1

Mounting without carrier plate

• The rubber feet have M8 internal threads.
• Screw in four screws with a length of between 10 and 15 mm!
5.2.2

Mounting with carrier plate (option)

• Screw the carrier plate into the rubber feet using 4 x M8 countersunk head screws (supplied).
• Affix strain relief using 2 x M5 x 16 self-tapping screws (from above) and M5 ratchet nuts (from below)
to the WF support.
20
M8 x 10 mm

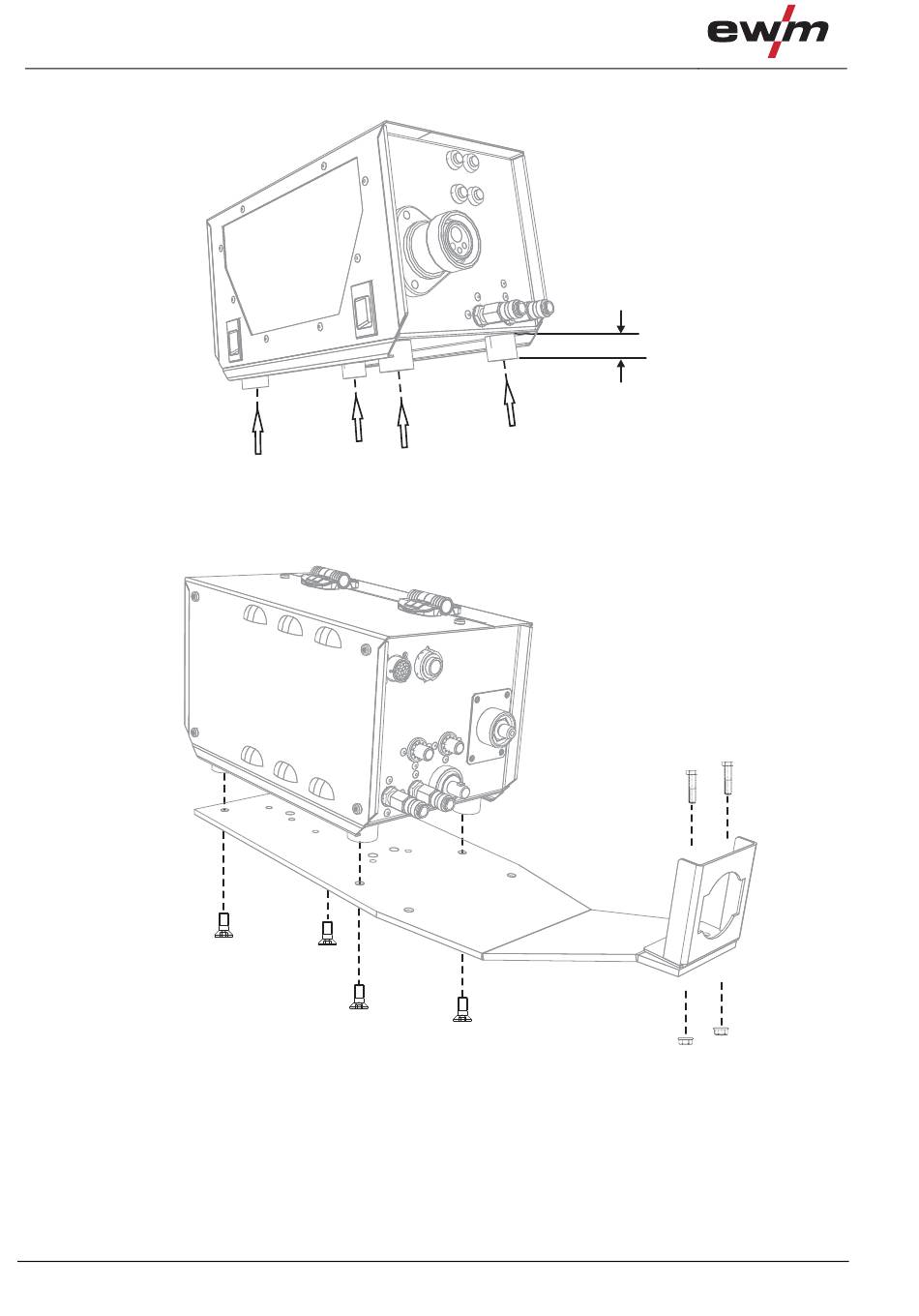

Figure 5-1
Figure 5-2
min 10 mm
max 15 mm
M5 x 16 mm
M5
