ASSEMBLY INSTRUCTIONS

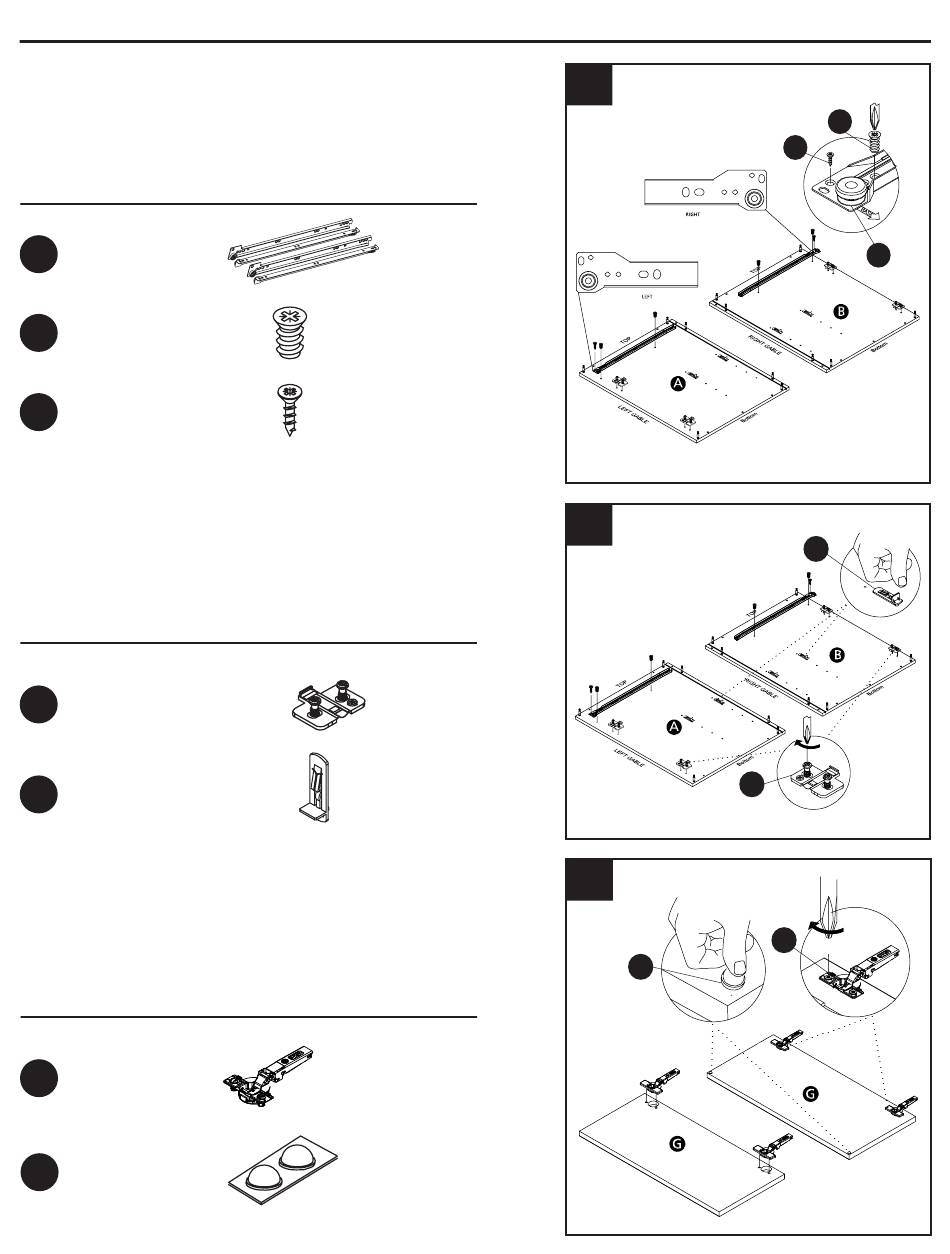

4. Place the epoxy runner in the correct position as
per the illustration. Use the euro and csk screws
as shown. Ensure the left & right hardware slides
are placed on the correct panels.
Hardware Used
CC
Epoxy runner
LL Euro screw 1/2"
CSK screw 5/8"
HH
5. Using a phillips head screwdriver, attach the
mounting plate as shown in the illustration.
Insert the shelf support hardware on the
required hole
Hardware Used
FF Hinge mounting plate
MM Shelf support clear
6. Insert the hinge in the bore hole. Using a phillips
head screwdriver, turn the pre-installed screws
clockwise to lock into place.
Place the bumper on the door as shown.
Hardware Used
105 Hinge
GG
o
Bumper 2MM
KK
4
x 1
x 4
x 2
5
x 4
x 4
6
x 2
x 4
7
HH
MM
FF
GG
KK
LL
CC
