AVerMedia D315 series
®
Applies to NVIDIA
Jetson AGX Orin 32G/64G module
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing: Contact
Technical Support: Professional User
0
D315 User Manual
AVerMedia Technologies, Inc www.avermedia.com
Advertisement
Table of Contents
Related Manuals for Avermedia D315AOP
Summary of Contents for Avermedia D315AOP
- Page 1 Applies to NVIDIA Jetson AGX Orin 32G/64G module AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842 Sales and Marketing: Contact Technical Support: Professional User D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 2: Table Of Contents
2.10 10 Gigabit Ethernet Connector ____________________________________ 21 2.11 40-Pin expansion header ___________________________________________ 22 2.12 Audio pin header ___________________________________________________ 24 2.13 Gigabit Ethernet Connector _______________________________________ 24 2.14 Micro SIM Card Socket ____________________________________________ 25 2.15 Mini card socket ____________________________________________________ 25 D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 3 3.1 BSP Setup Instructions _______________________________________________ 33 4.0 Software ....................34 5.0 Force Recovery Mode ................38 6.0 Power Consumption ................39 7.0 Accessory Drawings ................40 7.1 Fan Module/ Adapter/ Power Cord __________________________________ 40 D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 4: Preface
For more information of our products, pricing, and order placement, please fill in our inquiry form here, we will contact you within 24 hours. Download User Manual Please click the link here to download the file of this user manual from AVerMedia website. D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 5: Revision History
1.1Temperature/Dimensions add on D315AOP 1.1Expansion Header 1x mPCIE updated 1.1Thermal Solution updated 6.0 Power Consumption add on D315AOP-32G/64G Page.45-46 add on D315AOP 2D drawing V1.3 Dec 27, 2023 Update 2.27 Switch Button pinout setting Update 1.4 Carrier Board Interface V1.4... - Page 6 AVerMedia Global Offices https://www.avermedia.com/professional/contact D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 7 AVerMedia provides the one-year product warranty. Should this product, in AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
- Page 8 ESD Warning Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When handling any circuit board assemblies including AVerMedia products, it is highly recommended that ESD safety precautions can be observed. ESD safe best practices can include, but are not limited to the following ones.
- Page 9 5. Do NOT leave this device in an un-controlled environment with temperatures beyond the device’s permitted storage temperature to avoid damage. 6. All adaptors and cables supplied by AVerMedia are verified. Do NOT use any others not supplied by AVerMedia to avoid any malfunction or fires.
-
Page 10: Introduction

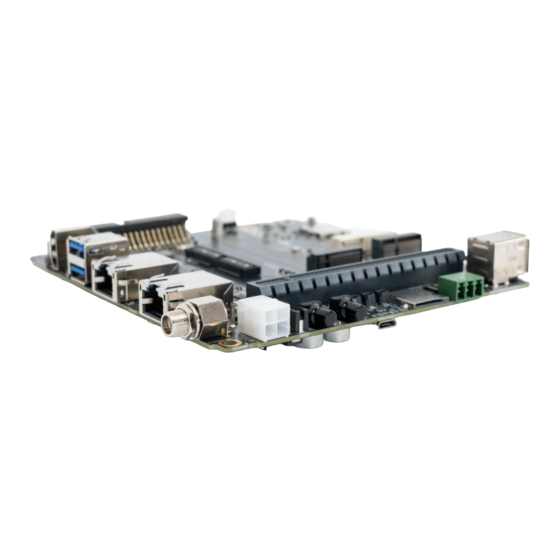

NVIDIA Jetson AGX Orin 32G/64G modules. D315/D315AO/D315AOB/D315AOP provide multiple I/O include one HDMI video output, two USB 3.2 ports, one GbE, one 10G RJ-45 port, 40-pin expansion, one M.2 Key E, one M.2 key ®... -
Page 11: Product Specifications
1x micro-SD card slot Storage • 40-pin (1x UART, 1x SPI, 1x CAN, 2x I2C, 1x I2S, 5x GPIOs) • 1x M.2 M key (for SSD or AVerMedia capture card: CN311-H, CN312SW, CN312MW) • 1x Micro SIM socket • 1x mPCIe (for 4G LTE module or 5G module via adapter card) (D315AOP doesn’t support 1x mPICE feature.) - Page 12 , weight: 1.5kg • D315AOP: 160mm(W)*136.9(L)*65mm(H), weight: 1.6kg CE, FCC, KC Certifications D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 13: Product Overview
1.2 Product Overview Block Diagram Orin D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 14 Front View and Back View of Carrier board D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 15: Connector Summary
USB 2.0 Gen1 Dual Port Type A Connector DC 12V connector for daughter board PCIE x16 socket 120-pin high speed board to board connector (to Camera board) CAN bus 3-pin terminal block with transceiver D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 16: Carrier Board Interface
1.4 Carrier Board Interface Top View Interface 699-pin high-speed/high-density connector Fan Wafer External RTC Battery wafer USB 2.0 Micro B Connector D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 17 Audio 9pin header Gigabit Ethernet Connector w/LEDs Micro SIM card socket (Push-Push) Mini card socket OOB board connector (5V) OOB board connector (Reset) OOB board connector (Power) 54V DC power Jack with Lock BSW3 BSW1 D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 18 PCIE X16 connector 2x60 pin high speed board to board connector (to Camera board) CAN bus 3-pin terminal block with transceiver Debug port Switch Button BSW1 Power Button w/LEDs BSW3 Recovery Button w/LEDs BSW3 BSW1 D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 19: Feature Description
Location WAFER_1*4PIN_1.25 ㎜_90° Type Description Manufacturer ACES 50271-0040N-001_BLACK and Part Number Mating ACES 50276-004H0H0-001 Connector Pin # Description PIN 1 Pinout PIN 2 +12V Power PIN 3 FAN_TACH PIN 4 FAN_PWM Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 20: Rtc Battery Connector
Type Description connector 冠泰 Champway Manufacturer and Part Number CU3B-AFR15U-096H Any USB 3.2 Gen 2 standard Type-A Mating Connector interface cable or device. Pinout Please refer to USB 3.2 Gen 2 standard. Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 21: E Key 2230
Type Description USB micro-type B female connector 褔軒 Manufacturer Fullglory and Part Number FG-MCB-111440 Mating Any USB standard Micro-type interface Connector cable or device. Pinout Please refer to USB Micro-type standard. Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 22: Micro Sd Card Slot
Location Type Description RJ45 with integrated magnetics 志展 Compupack(CPC) Manufacturer and ACNRJJA0001-006 Part Number 10G-LEFT(G/Y)+RIGHT(Y)-UP Any standard 10Gb Ethernet mating Mating Connector connector can be applicable. Pinout Comply with Ethernet standards. Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 23: 40-Pin Expansion Header
2.11 40-Pin expansion header Function General-purpose input/output Location HEADER_BOX_2*20PIN_2.54 ㎜_90°_SMD Type Description 志展 Compupack(CPC) Manufacturer and Part Number ACNBH420029-040 Mating Connector Any 2.54mm pitch standard interface female [PCB Ver.A] Pinout D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 24 [PCB Ver.A1/Ver.B] Note None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 25: Audio Pin Header
Location Type Description RJ45 with integrated magnetics 志展 Compupack(CPC) Manufacturer and ACNRJGA0029-006 Part Number 1G-LEFT(G/Y)+RIGHT(Y)-UP Any standard 1Gb Ethernet mating Mating Connector connector can be applicable. Pinout Comply with Ethernet standards. Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 26: Micro Sim Card Socket
Mini Card (PCIe) interface Location Type SOCKET_MINI PCIE_52PIN Description Manufacturer FOXCONN, and Part AS0B221-S68Q-7H_H=6.8MM-062AL6 Number Mating Any Mini Card standard interface device. Connector Please refer to Mini Card standard for the Pinout pinout details. Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 27: Oob Board Connector
J26, J27, J28 WAFER_1*2PIN_1 ㎜_180°_SMD Type Description Manufacturer 宏致 ACES and Part 50228-00271-001_WTB Number 宏致 ACES Mating 50233-002H0H0-001 Connector Description PIN1 +5V Power PIN2 Description Pinout PIN1 Reset PIN2 Description PIN1 Power PIN2 Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 28: Dc Power Jack
2.18 ATX 4P Function ATX 4P Location Type WAFER_2*2PIN_4.2 ㎜_90°_DIP Description Manufacturer 褔軒 Fullglory and Part FPWD-42R2-04NAT Number Mating Follow ATX 4pin power standard Connector Pin Number Description Pinout 12-54V Power 12-54V Power Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 29: Usb 2.0 Gen 1 Type-A Connector #1 , #2
Function 12V power output connector Location WAFER_1*5PIN_2 ㎜_180°_SMD Type Description 宏致 ACES Manufacturer 50310-0057N-001_WTB HEADER-H6.5mm and Part Number 宏致 ACES Mating 50389-005H0H0-001 Connector Pin Number Description +12V Power +12V Power Pinout Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 30: Pcie X16 Socket
2.22 Board to board connector (to Camera board) Function Board to board connector Location WAFER_2*60PIN_0.5 ㎜_180°_SMD Type Description SAMTEC Manufacturer and QSH-060-01-L-D-A-K-TR Part Number BTB-RECEPTACLE SAMTEC Mating Connector QTH-060-03-H-A-D BTB-PLUG QTH-060-04-H-A-D BTB-PLUG Pinout Comply with NVIDIA Devkit pinout. Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 31: Can Bus 3-Pin Terminal Block With Transceiver
2.24 Debug port Function Debug port Location HEADER_PIN_1*4PIN_2.54 ㎜_180°_SMD Type Description 宏致 ACES Manufacturer and Part Number 60240-00471-001 Mating Connector Any 2.54mm pitch standard interface female Pin # Description +3.3V Power Pinout Remarks None D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... -
Page 32: Switch Button
OFF=>CAN W/O Terminal ON=>CAN W/ Terminal Remark 2.26 Power &Recovery Button Function Power & Recovery control button Location BSW1, BSW3 Type Description Button 冠泰 Champway Manufacturer and LS67AK-NBR-A-R2KA9 Part Number RGB-CAP(BLACK) Pinout None Remark D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 33 Other Switches and Jumpers Other switches and jumpers listed on the boards but not mentioned in this manual are reserved for the internal use by AVerMedia. They are not open to the client application. D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 34: Installation
If you want to get the BSP download link, Please contact with AVerMedia FAE. Default login username/password of the BSP is nvidia/nvidia If you have difficulties to access the BSP download link, please visit AVerMedia website at https://www.avermedia.com/professional/download, or contact technical support at https://www.avermedia.com/professional/technical_support or e-mail us at... -
Page 35: Software
$ sudo avt_tool -a | grep -oP "AIN5.*\[\K[^\]]*" Fan Speed The following commands can get PWM fan information. # get current speed setting of PWM Fan (0 ~ 255) $ cat /sys/devices/platform/pwm-fan/hwmon/hwmon2/pwm1 # get Fan RPM value $ cat /sys/devices/platform/39c0000.tachometer/hwmon/hwmon1/rpm D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 36 $ sudo ip link set can0 up (2) Receive and Send # Receive $ candump can0 # Send $ cansend can0 <can_frame> * where: <can_frame> is CAN Bus frame message, see `cansend --help` for more detail. D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 37 $ cat /sys/kerne/debug/gpio | grep 483 gpio-483 (PZ.05 $ gpio_index=PZ.05 $ echo out > /sys/class/gpio/$gpio_index/direction $ echo 1 > /sys/class/gpio/$gpio_index /value # HIGH $ echo 0 > /sys/class/gpio/$gpio_index /value # LOW (2) Input $ sudo su D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 38 $ gpio_id=483 $ echo $gpio_id >/sys/class/gpio/unexport For L4T (Linux for Tegra) BSP support and the other software support associated with NVIDIA® Jetson AGX Orin , please visit AVerMedia website to contact our technical support function. (https://www.avermedia.com/tw/support/contact) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
-
Page 39: Force Recovery Mode
Please use a native setup (no virtual machine) installation file in the following steps. You will also need a high-quality standard USB. Type A to micro-USB cable Download installation file from Avermedia. Connect carrier board to host PC Connect the system to the Linux host PC. -
Page 40: Power Consumption
Power Consumption of D315AOB-32G: 11.5W(*1) to 64W (*2) Power Consumption of D315AOB-64G: 13.5W(*1) to 66W (*2) Power Consumption of D315AOP-32G: 11.5W(*1) to 64W (*2) Power Consumption of D315AOP-64G: 13.5W(*1) to 66W (*2) Theoretical Normal Mode and... -
Page 41: Accessory Drawings
Operating Voltage Range: 11.4V~12.6V Rated Speed: 4200±10% RPM (Testing Speed After Continuous 3Minute Operation At Ambient Temperature Of 25 ℃) Life Expectancy: 50,000hours at 40℃ (5 TO 90% RH) Bearing Type: Two Ball D315 User Manual AVerMedia Technologies, Inc www.avermedia.com... - Page 42 Power Adapter 041318GOUANL 64APOWERBRX-IPD (TW version) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 43 064APOWERBR2-IPD (US version) 064APOWERBRW-IPD (UK version) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 44 064APOWERBR5-IPD (EU version) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 45 064APOWERBSL (JP version) 064APOWERBR4-IPD (CN version) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 46 D315AOP (2D Drawing) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
- Page 47 D315AOP (2D Drawing) D315 User Manual AVerMedia Technologies, Inc www.avermedia.com...
