USB-1208HS-2AO User's Guide
Functional Details

Screw terminals

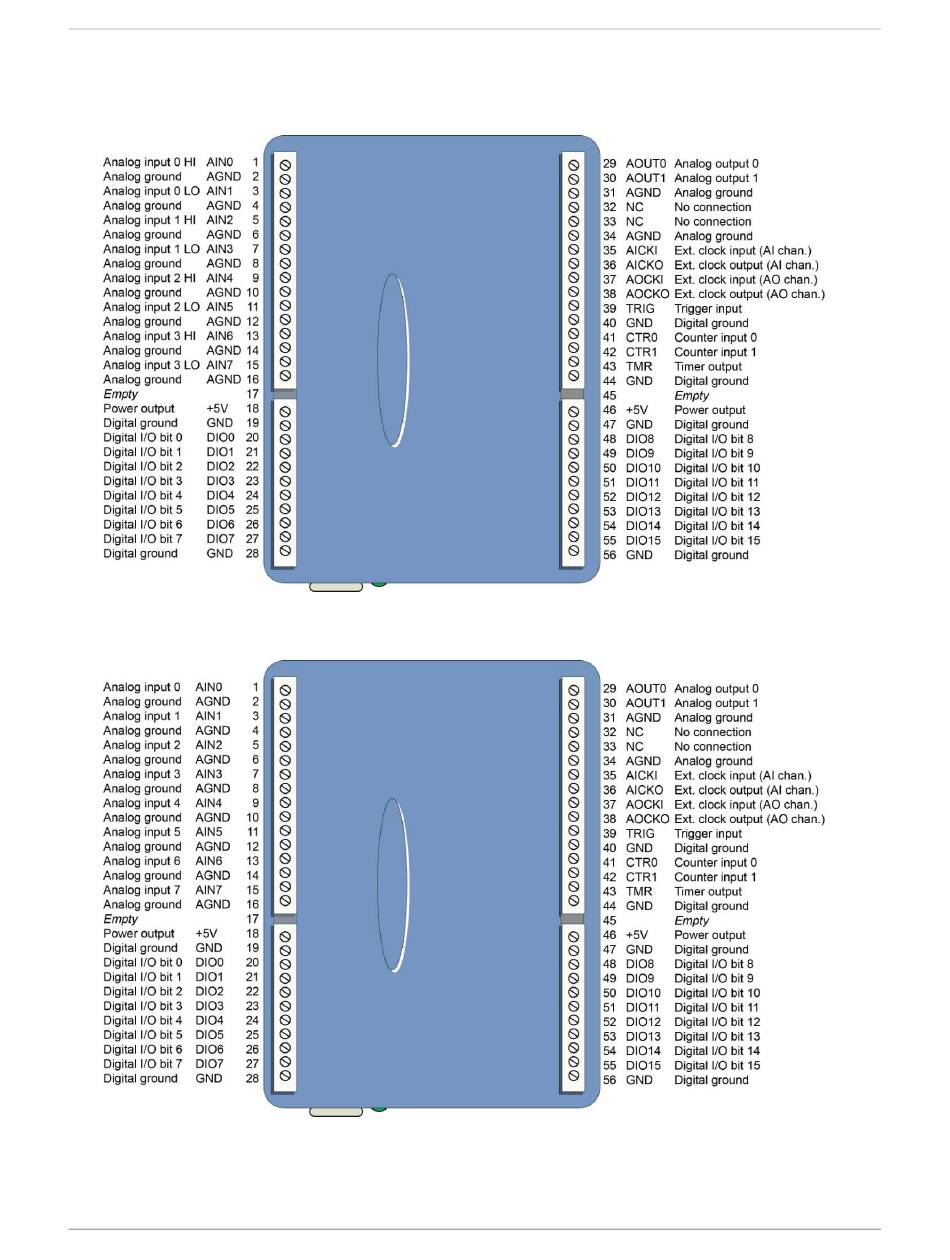

The differential mode pinout is shown in Figure 3.
Figure 3. Differential mode pinout
The single-ended mode pinout is shown in Figure 4.
Figure 4. Single-ended mode pinout
Use 16 AWG to 30 AWG for signal connections.
10
