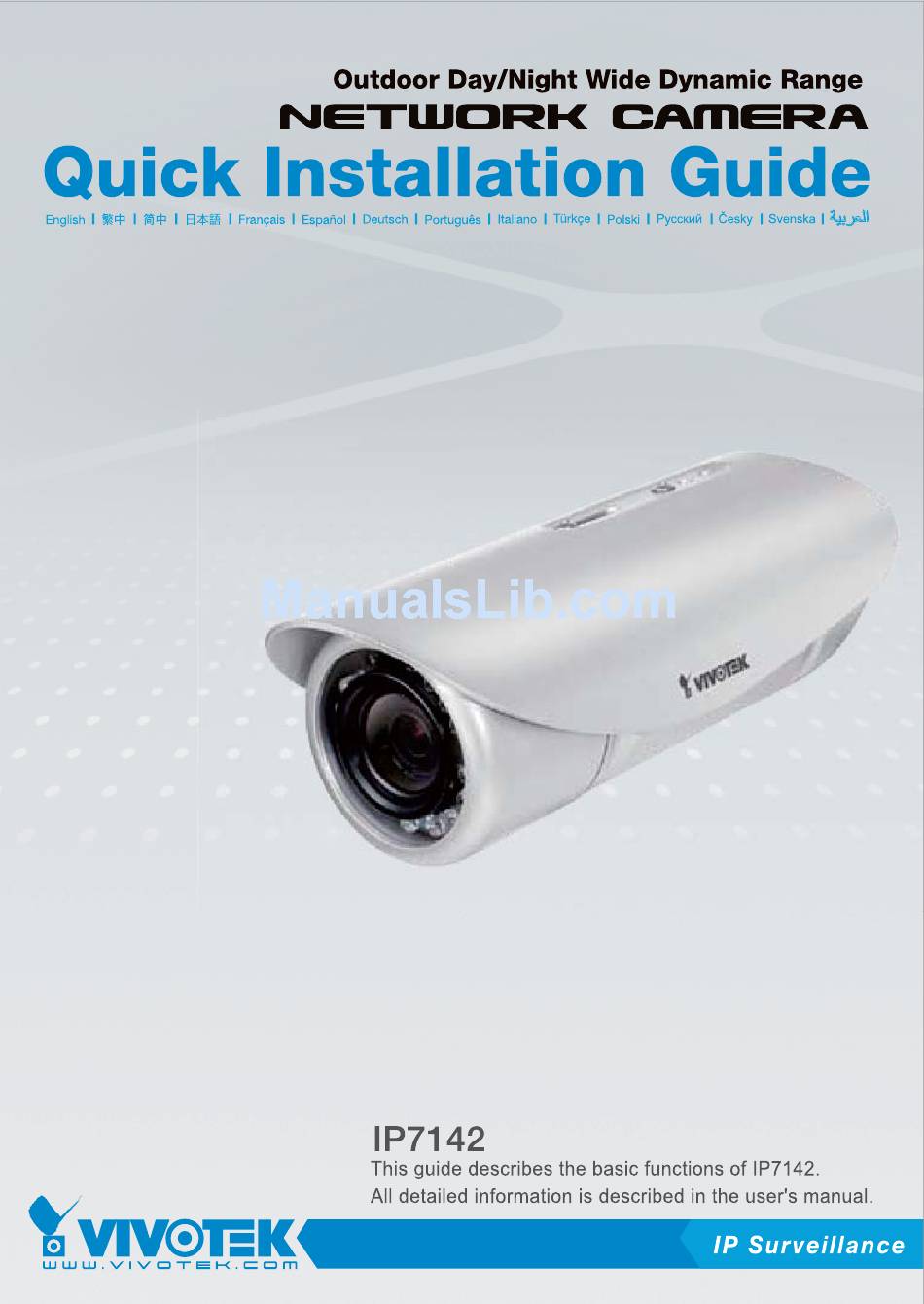

Vivotek IP7142 Quick Installation Manual
Vivotek IP7142 Quick Installation Manual

Vivotek IP7142 Quick Installation Manual

Outdoor day/night wide range dynamic range network camera
Hide thumbs Also See for IP7142:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP7142 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivotek IP7142

  • Page 2 Contact your distributor in the event of occurrence. EN-1...
  • Page 3 EN-2...
  • Page 4 Light Sensor Lens IR LED Reset Button Status LED General I/O Terminal Block Ethernet 10/100 RJ45 Plug Audio Out (green) Microphone In (pink) Power Cord Socket (black) Ground EN-3...
  • Page 5 1. Open the lens cover. 2. Secure the Network Camera to the wall/ceiling by the supplied camera stand. EN-4...
  • Page 6 1. If you have external devices such as sensors and alarms, connect them to the general I/O terminal block. N . C . : No Connector 4 8 5 B : RS485- 4 8 5 A : RS485+ AC24V: Power in AC 24V AC24V: Power in AC 24V G N D : Ground : Digital Input...
  • Page 7 The Network Camera is PoE-compliant, allowing transmission of power and data via avsingle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.
  • Page 8 "Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the side of the camera lens or S/N number on the label of carton to connect the Internet Explorer to the Network Camera.
  • Page 9 1. Access the Network Camera from the Internet. 2. Retrieve live video through web browsers or recording software. For further setup, please refer to the user's manual on the software CD. 3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller.
  • Page 10 5. Tear down the aluminum foil vacuum bag and take out the silica gel. Attach the silica gel to the inner side of the Network Camera, then tighten the lens cover. (Please replace the silica gel with a new one if you open the back cover after installation.) Note Ceiling Mount Wall Mount...
