Dynamic Water Pressure
Max: 5.0 bar
Min: 0.2 bar
2.0
3.0
1.0
4.0
0
5.0
Pressure
BAR
Maximum Static Pressure: 10.0 bar
Pack Contents
Rubber
Washers
Metal Backnuts
All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and
receive regular maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water
Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014.
For full Installation Requirements & Notes (IRN) please visit www.wrasapprovals.co.uk/approvals-directory
Isolation valves must be fitted to the inlet water supplies to ensure ease of future maintenance.
Before installing this product the water supply must be thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/servicing purposes.
This product must not be modified in any way as this will invalidate the guarantee.
Specifications
Inlet Water Temperature
Maximum Hot 60°C
x2 Tap Bodies
Tools Required for Installation/ Maintenance
x2
x2
Prior to Installation
Installation Instructions
Please leave these instructions
Inlet Connections
60°C
1/2" BSP
Operation
HOT
ON
24mm
17mm Socket
Adjustable
Box Spanner
Spanner
Spanner
& User Guide
with the end user

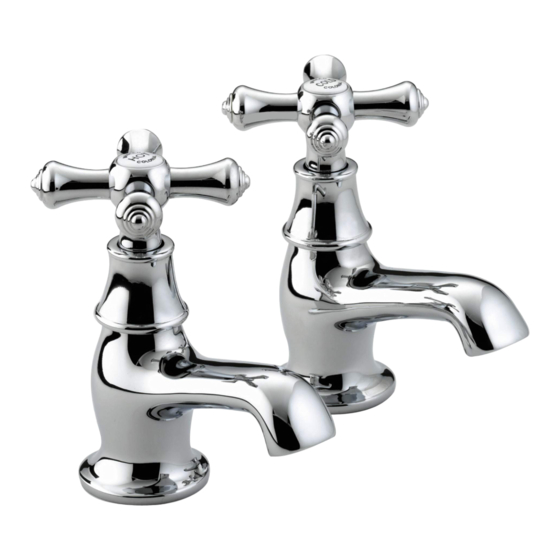

K 1/2 C (D6)
Outlet Connections
2mm Hex
Pipe
Cutters
Key
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your
Open
Outlet
COLD
ON
Crosshead
Screwdriver
product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bristan K 1/2 C
Summary of Contents for Bristan K 1/2 C
- Page 1 Prior to Installation Spare Parts All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014.
- Page 2 Installation Feed the tap body through the IMPORTANT bath/basin and ensure plinth and Images shown are for illustrative plinth seals are in purposes only. place. The tap you have purchased may look different to those pictured in these instructions, but will follow the same installation steps.
- Page 3 Visit www.bristan.com or scan the QR Code and search for your product code to replace the cartridge for your tap. Reverse the steps to replace the valves and handles.
- Page 4 Maintenance - Clean/Replace Outlet PLEASE NOTE - Taps shown in these instructions are for illustration purposes only. All Taps can be maintained using these instructions. Housed Outlet Recessed Outlet Using an adjustable spanner, unscrew gently to remove the outlet Your tap may have a different outlet, If provided, insert use the...
- Page 5 A Masco Company Our Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
