Dynamic Water Pressure
Max: 5.0 bar
Min: 0.2 bar
2.0
3.0
1.0
4.0
0
5.0
Pressure
BAR
Maximum Static Pressure: 10.0 bar
Pack Contents
x1
Riser Rail
x1
Slider
x1
Hose
Retainer
Pencil
Specification
Inlet Water Temperature
Max Hot: 75°C
Riser Centres
580mm
Riser
x2
Brackets
x1
Single
Function
Handset
x2
Washers
x1
Cone
to Nut
Hose
x1 Riser
Fixings
Pack
Tools Required for Installation
Spirit Level
Cross Head
Screwdriver
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Inlet Connection
1/2" BSP
Operation
necessary height
6mm
Drill
Safety
Goggles
Product Code: KIT100 C (D2)
Outlet Connection
Single Function Handset
with Rub Clean Nozzles
Press the
button to
release
the lock.
Adjust to the
and release the
button to lock.
Electronic
Detector
Advertisement
Table of Contents
Related Manuals for Bristan KIT100 C
Summary of Contents for Bristan KIT100 C

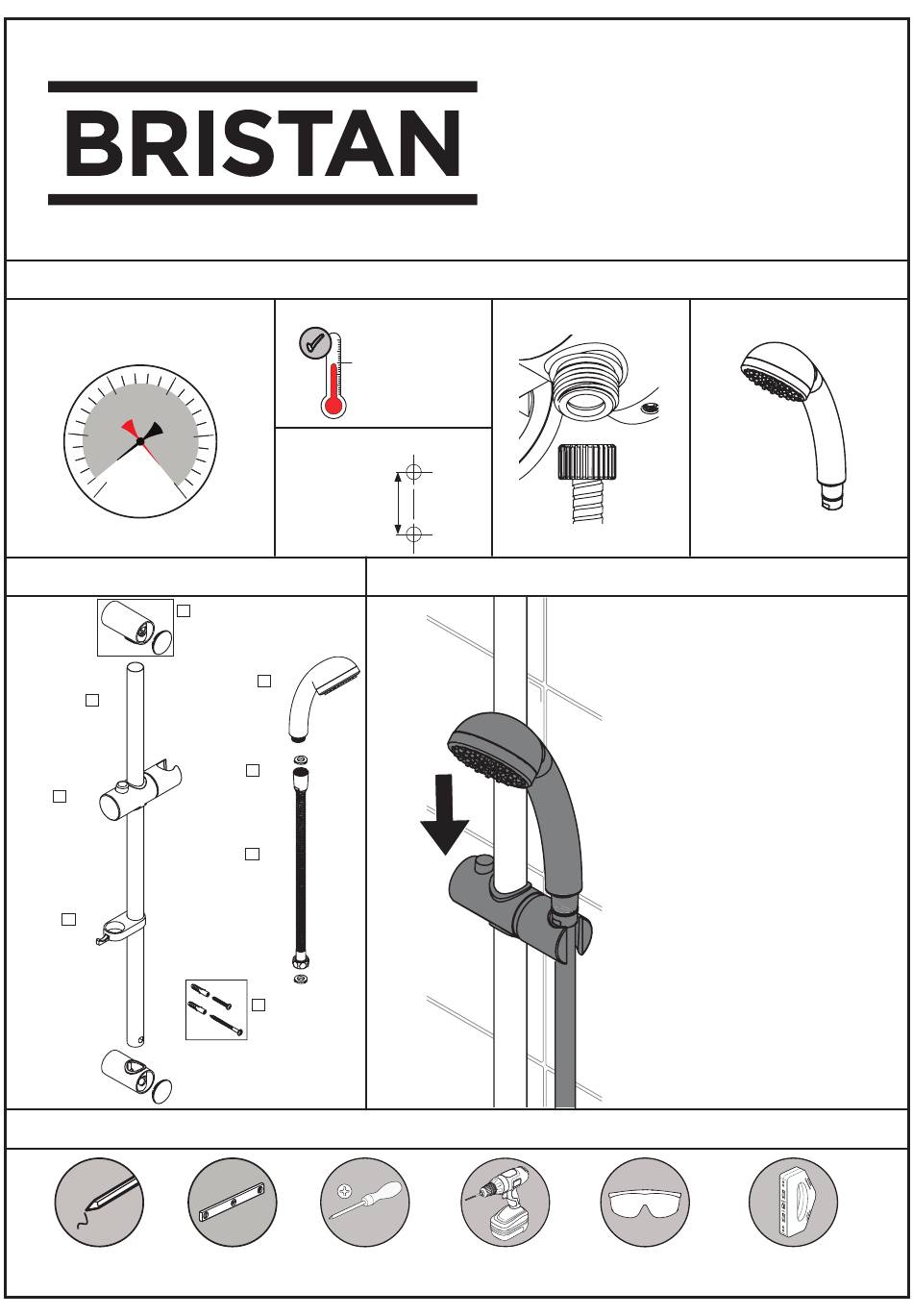

- Page 1 Installation Instructions & User Guide Please leave these instructions with the end user Product Code: KIT100 C (D2) Specification Dynamic Water Pressure Inlet Water Temperature Inlet Connection Outlet Connection Max: 5.0 bar Min: 0.2 bar Max Hot: 75°C Riser Centres...
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed these products with your enjoyment in mind. To ensure that they work to their full potential, they need to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 6273. -
Page 3: Prior To Installation
Prior to Installation All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014. -
Page 4: Adjustable Riser Installation
Adjustable Riser Installation PLEASE NOTE - Risers shown in these instructions are for illustration purposes only. Your riser outlet can still be installed by following these instructions. Remove the caps from the wall brackets. Assemble the Assemble the riser by sliding riser with the the attachments slider in place. - Page 5 Adjustable Riser Installation PLEASE NOTE - Risers shown in these instructions are for illustration purposes only. Your riser outlet can still be installed by following these instructions. Ensure the bottom bracket and rail holes align, then secure them to the wall. Replace the end caps on Slide the rail...
-
Page 6: Cleaning
Our Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. -
Page 7: Notes
Notes Please use this space for any notes you or your installer may have regarding the installation/plumbing of this product. -
Page 8: Troubleshooting
Dordon, Tamworth B78 1SG. Masco Europe S.à.r.l. To replace any spare parts for your 14 Rue Strachen tap, why not scan the QR Code or 6933 Mensdorf visit www.bristan.com and search for Luxembourg your product. Email Us: enquire@bristan.com Website: www.bristan.com...
