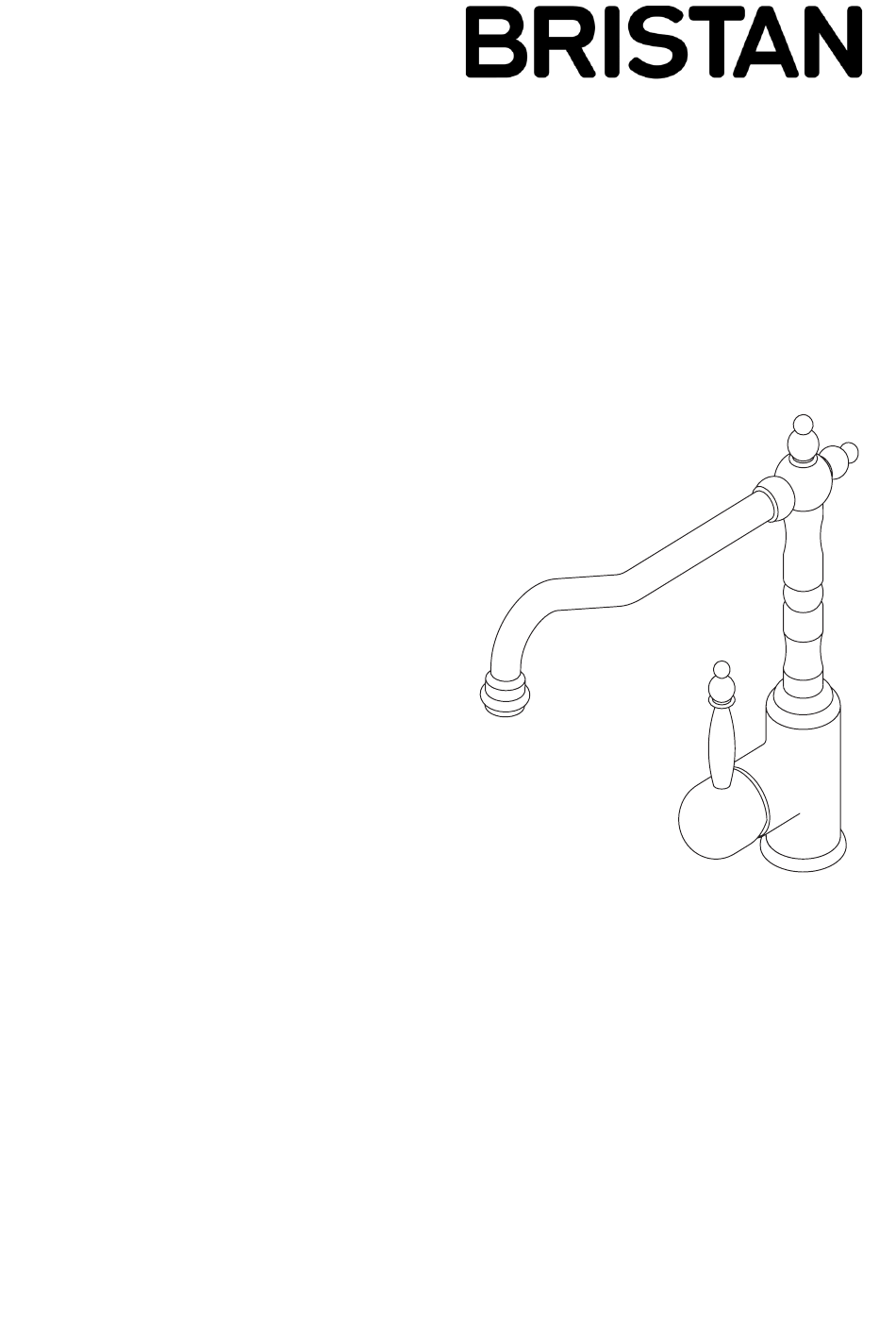

- Page 1 Installation Instructions Colonial Single Lever Easyfit Sink Mixer Model covered: K SNKSL EF C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to contact us. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. •... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. Designed to comply with BS EN 200 for combination taps to be used within systems designed to BS 8558. -
Page 5: Dimensions
Dimensions G1/2” Dimensions are nominal and in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 6: Installation Requirements
Installation Requirements Flexible Connecting Pipes Care must be taken when connecting the flexible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. See below for recommended ways to fit the flexible connecting pipes. Slight 90°... -
Page 7: Installation
Installation 1. Fit push-fit connector Place the ‘push-fit connector’ into the hole in the basin top. Ensure the rubber washer is fitted to the underside. hexagonal 2. Attach hot and cold connectors Position the backnut under the basin (with the rubber seal on top), ensuring the locating pin fits into the hole in the backnut. - Page 8 Installation Cont. 3. Attach flexible connecting pipes. Important: Before connecting the flexible connecting pipes, please refer to the specific connector installation requirements on page 6 Carefully screw the ‘flexible connecting pipes’ into the ‘push-fit connectors’. Fit the isolation valves (supplied) to the flexible connection pipes and turn to the 'closed' position as shown on page 6 Note: A flexible connecting pipe can be fed up through the hot connector hole and then screwed on...
-
Page 9: Operation
Operation Temperature Control Cold Flow Control Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 10: Maintenance
Cartridge Grub or debris. Retaining Nut Screw If necessary replace the cartridge using parts supplied by Bristan only. Cartridge Replace the cartridge, cartridge retaining Shroud Handle nut and the shroud. Replace the handle, tighten the grub screw and screw the handle lever back in. -
Page 11: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low Partially closed isolation valve. Open isolation valve. flow rate Instantaneous water heater Increase water flow rate or cycles on and off as flow rate or pressure through system to pressure is too low. meet required minimum working pressure of tap. -
Page 12: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system/ installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 13: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system/ installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 14: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. - Page 15 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
- Page 16 K SNKSL EF C Part Number: Issue: D1 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd. Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
