Summary of Contents for Dormakaba ED connection board CAN

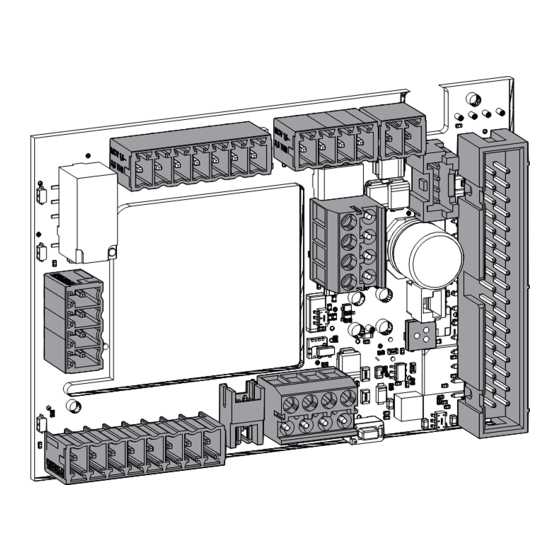

- Page 1 ED connection board CAN Assembly Instruction 060636 45532/16923 - 2023-04...
-
Page 2: Table Of Contents
Abbreviations Symbols used 1.5.1 Hazard category Safety Product description Product description Technical data Structure of the ED connection board CAN LED display Mounting Note the structure of the ED 100/250 drive Mounting the ED connection board CAN Connection Commissioning Troubleshooting... -
Page 3: Information About This Document
NOTICE Material damage due to electrostatic discharge The component can be damaged by electrostatic discharge! • Ground your body before touching the component. • Use ESD safe tool. 060636 45532/16923 - 2023-04 ED connection board CAN... -
Page 4: Product Description
Assembly Instruction 3 Product description 3.1 Product description The ED connection board CAN is a board that is required to make an ED 100/250 CAN-capable. It replaces the standard plate in ED and is compatible from firmware V2.9.000 and up. 3.2 Technical data... -
Page 5: Led Display
ED 100/250 operators apply to the ED connection board CAN. 3.4 LED display The RGB LED function display on the ED connection board CAN is defined as a secondary function display. The RGB LED function display uses signal colors to show the current operating status or a fault. -
Page 6: Mounting
ED 100/250. Position Meaning Power on Standard ED connection board Complete cladding Ribbon cable RJ45 socket (COM 1) User interface with information display Adapter for internal program switch Side cover ED connection board CAN 060636 45532/16923 - 2023-04... -
Page 7: Mounting The Ed Connection Board Can
Insert the cable ends of the connection cables from the inside to the empty board slot. 8. Plug the ED connection board CAN over the locking elements. 9. Plug in the plugs and connect the lines. 10. Pull the open cable end of each CAN connection cable out through the middle opening in the ED connection board CAN. - Page 8 17. Plug the RJ45 plug of the serial connection cable into the socket (5) next to the user interface (6), see “Note the structure of the ED 100/250 drive [} 4.1]”. ED connection board CAN 060636 45532/16923 - 2023-04...
- Page 9 Assembly Instruction Mounting ð The ED connection board CAN is connected for commissioning. 18. For 2-leaf units, attach the adapter (6) for internal program switch. 19. Connect the external program switch to the adapter. 060636 45532/16923 - 2023-04 ED connection board CAN...
-
Page 10: Connection
Signal input safety sensor hinge side Test output + 24 V Signal input safety sensor opposite side to the hinge Test output Signal input night/bank Signal input impulse outside Signal input pulse inside ED connection board CAN 060636 45532/16923 - 2023-04... -
Page 11: Commissioning
CAN is interrupted. Check the C1 parameter setting on the ED control unit, check the connection cable between the ED control unit and the ED connection board CAN. If necessary, actuate Power on on the ED operator. Error no. 2... -
Page 12: Disassembly And Disposal
The product must not be disposed of in domestic waste. Dispose of the product in an environmentally friendly manner at the collection points set up for this purpose. Refer to the statutory regulations for your country. ED connection board CAN 060636 45532/16923 - 2023-04... - Page 13 Assembly Instruction Notes 060636 45532/16923 - 2023-04 ED connection board CAN...
- Page 14 Assembly Instruction ED connection board CAN 060636 45532/16923 - 2023-04...
- Page 15 Assembly Instruction 060636 45532/16923 - 2023-04 ED connection board CAN...
- Page 16 060636 45532/16923 - 2023-04 Copyright © dormakaba 2023 www.dormakaba.com...
