Dormakaba SafeRoute SCU-UP Manual

Contents
1

About this manual

2

Safety

3 Product Description
4 Mounting
5 Wiring Diagrams
6 Assignment Of Terminals And Switches
7 Dismantling And Disposal
1 About this manual
1.1 Target group
The SCU-UP (SafeRoute® Control Unit for in-wall
mounting) must only be mounted by trained
electricians with specific knowledge of
electromechanical locks, fire safety codes and
regulations.
1.2 Intended use
The SCU-UP exclusively serves to open doors on the
course of escape routes in case of emergency. May be
utilized in a SafeRoute®-System.
1.3 Limitation of liability
The SCU-UP must be used only according to its
intended use. Modifications to the product or the use
of accessories not authorized by the manufacturer
are prohibited.
1.4 Other applicable documents:
• System instructions for the used SafeRoute® license
• Operating instructions for the SafeRoute® system
• Inspection logbook
1.5 Symbols used
ATTENTION
This signal word indicates a situation of
potential risk, which could lead to damage
to property or the environment if not
averted.
SCU-UP
Mounting instructions
TIPS AND RECOMMENDATIONS
This signal word indicates useful information
1
for efficient and trouble-free operation.
1
1
3
5
1.6 Further labeling
6
7
1. 2.
Sequence of action steps
6
Reference to a chapter
Door opening direction DIN left =
opening outwards to the right
Door opening direction DIN right =
opening outwards to the left
Components may get damaged
from electrostatic discharge
2 Safety
ATTENTION
Property damage from electrostatic
discharge.
The control board may get damaged from
an electrostatic discharge!
• Ground your own body before touching a
component!
3 Product description

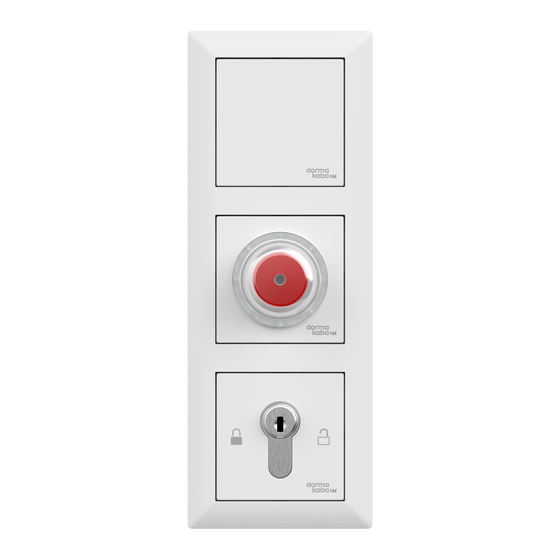

The SCU-UP (SafeRoute® Control Unit for in-wall
mounting) is a control for doors on escape routes
which can be mounted in a flush-mounted box next to
the door. In addition, the SCU-UP includes the
emergency button which releases the door lock or the
automatic close and hold function in case of
emergency. Functions and settings of the SCU-UP
depend on the used SafeRoute® license (see
SafeRoute® system instructions). Without a license
card, the SCU functions as emergency button.
WN 059508 45532 – 2019-07
EN
