1
About this document
1.1
Contents and purpose
This document describes the installation of the SLI-A
Interlock application.
1.2
Target group
This document is intended for assembling technicians
and specialists authorized for installation by
dormakaba.
1.3
Other applicable documents
• The SCU control units' mounting instructions
• The SafeRoute® system manual
• The respective door units' inspection log
• The TMS Soft® handbook
1.4
Documents storage
This document must be handed over to the facility
operator after commissioning.
1.5
Symbols used
1.5.1
Hazard categories
WARNING
This signal world indicates a possible
hazardous situation which may result in
death or severe injuries if ignored.
SLI-A Interlock
Installation manual
ATTENTION
This signal word indicates a situation of
1
potential risk, which could lead to damage
1
to property or the environment if not
1
averted.
3
4
4
1.5.2
More symbols
4
5
TIPS AND RECOMMENDATIONS
5
This signal word indicates useful information
for efficient and trouble-free operation.
2
Safety
2.1
Intended use
The functional scope of a SafeRoute® system is
extended by loading the application into the control
unit.
2.2
Personnel qualification
Installation may only be carried out by persons
authorized by dormakaba.
3
Product description
With the SLI-A interlock application, a SafeRoute®
Control Unit can operate up to 4 independent doors
with different configurations in 1 interlock. The system
cabling takes place via DCW® bus. The SLI-A Interlock
includes all functions of the SLI-A Multi-door.

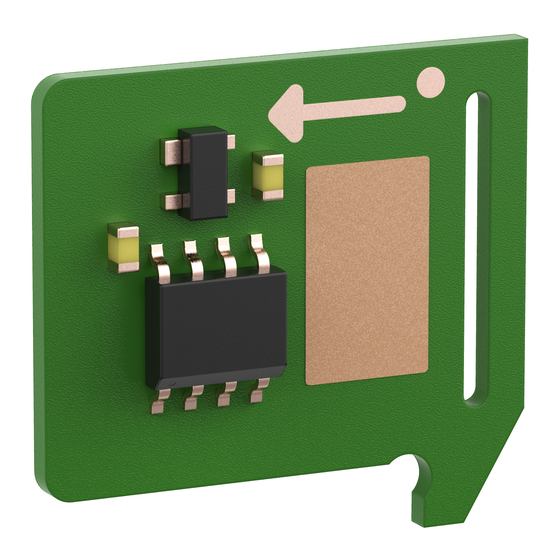

The loaded applications are permanently stored on
the SLI license card. After replacement of the SLI
license card, any necessary applications must be
reloaded.
WN 059734 45532 - 2018-11
DE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dormakaba SLI-A Interlock
Summary of Contents for Dormakaba SLI-A Interlock
-
Page 1: Table Of Contents
Documents storage with different configurations in 1 interlock. The system This document must be handed over to the facility cabling takes place via DCW® bus. The SLI-A Interlock operator after commissioning. includes all functions of the SLI-A Multi-door. The loaded applications are permanently stored on Symbols used the SLI license card. -
Page 2: Product Description
Interlock function: Door 1 is assigned to 3 interlocks and can only be opened when doors 2, 3 and 4 are locked. Doors 2, 3 and 4 can only be opened when door 1 is locked. Parts included SLI-A Interlock 56412101 SLI-A Interlock WN 059734 45532 2018-11... -
Page 3: Loading The Application
Installation manual Loading the application Loading the application 1 or No. 1 Prerequisite for loading the application No. 2 • A SafeRoute® system with license level Basic or higher. No. 3 • The DCW® addressing of the DCW® components No. -
Page 4: Configuration Of System Doors
Installation manual Configuration of system doors Remove the existing SLI license card and insert System door 2: the SLI-A application card. ‣ The SLI LED starts flashing when the SCU 2 STV 2 application has been loaded from the card to the control unit. -
Page 5: Configuration Of An Interlock With Tms Soft
Installation manual Configuration of an interlock with TMS Soft® Configuration of an interlock Disassembly and disposal with TMS Soft® Disassembly is carried out in the reverse order of mounting and must be carried out by qualified The functions of the components and the SafeRoute®... - Page 6 Installation manual Configuration of system doors SLI-A Interlock WN 059734 45532 2018-11...
- Page 7 Installation manual Configuration of system doors SLI-A Interlock WN 059734 45532 2018-11...
- Page 8 Deutschland GmbH DORMA Platz 1 58256 Ennepetal Germany T: +49 2333 793-0 F: +49 2333 793-4950 www.dormakaba.com...
