ASSEMBLY APP AVAILABLE ON
We highly recommend downloading the Absco Sheds
Assembly App to assist with your build.
STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY
CUSTOMER SERVICE • WARRANTY INFORMATION • COUNCIL FORMS
4"

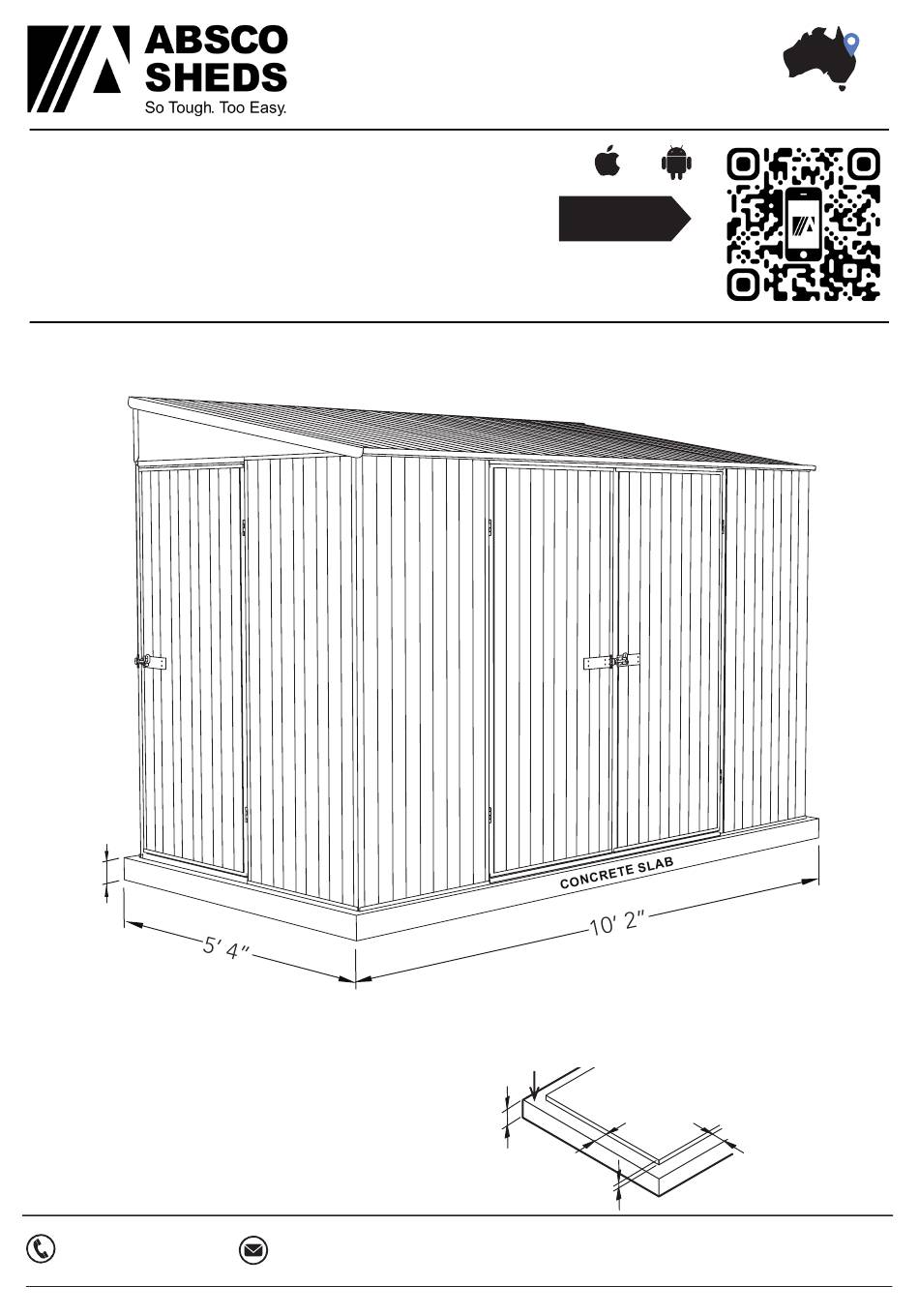

When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated section is 1" high and inset 3" on all sides
from the overall slab base dimensions
AU: 1800 029 701
+1 (866) 788 3046
+1 (866) 788 3046
N Z: 0800 466 444
Absco Industries

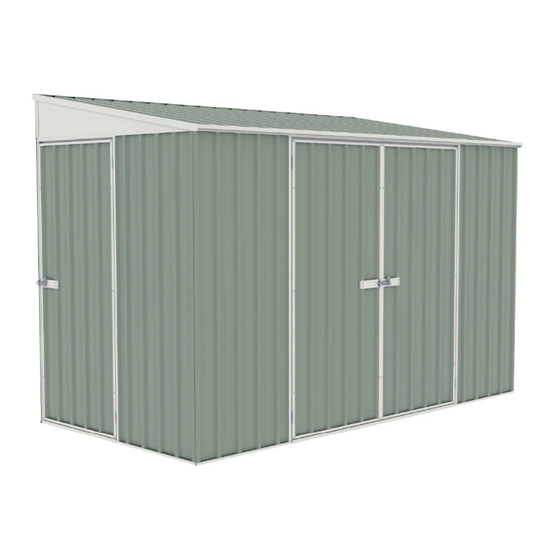

ABSCO BIKE SHED
MODEL: 30153BK-PTX
10' W x 5' D x 5'11"H, 6'10"H
admin@absco.com.au
admin@absco.com.au
www.abscogardensheds.com
www.abscosheds.com.au
Assembly Instruction Manual
Scan to
download
WALLS SIT
ON THIS LEVEL
RAISED FLOOR
INSIDE SHED
4"
3"
1"
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
Model: 30153BK-PTX
Australian Made
+
Overall slab base
dimensions for this
model are as shown
3"
Illustration not to
29/06/2022
1.0
above.
scale.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS 30153BK-PTX
Summary of Contents for ABSCO SHEDS 30153BK-PTX
- Page 1 MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made ASSEMBLY APP AVAILABLE ON We highly recommend downloading the Absco Sheds Scan to download Assembly App to assist with your build. STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY CUSTOMER SERVICE •...
- Page 2 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made GENERAL INSTRUCTIONS SAFETY NOTES • Before commencing any assembly, read • Some parts may have sharp edges. It is through these instructions in detail to gain...
- Page 3 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made SHEETING AND LARGE COMPONENTS DESCRIPTION PART # DESCRIPTION PART # STEEL SHEET STEEL SHEET DOOR 6’ 8” x 2’ 6 7/16” 5’ 7 29/32” x 2’ 6 7/16”...
- Page 4 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made CHANNEL PACK DESCRIPTION PART # DESCRIPTION PART # CHANNEL CHANNEL L = 4’ 11 19/32” L = 4’ 11 19/32” CHANNEL CHANNEL L = 5’ 7 29/32”...
- Page 5 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
- Page 6 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>>...
- Page 7 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made PRE-ASSEMBLY OF SPLICED CHANNELS Join together 12x channel sections using 6x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
- Page 8 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made WALL AND ROOF OVERVIEW Further detail on following pages Absco Industries Assembly Instruction Manual Model: 30153BK-PTX 29/06/2022...
- Page 9 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made REAR PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 30153BK-PTX 29/06/2022...
- Page 10 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made RIGHT SIDE PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 30153BK-PTX 29/06/2022...
- Page 11 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made ROOF PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 30153BK-PTX 29/06/2022...
- Page 12 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made FRONT PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 30153BK-PTX 29/06/2022...
- Page 13 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made DOOR PANEL ASSEMBLY Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of...
- Page 14 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made DOOR PANEL ASSEMBLY Nuts and bolts may be used instead of pop rivets by drilling out hinge holes using a 4mm drill bit. Both 3/16”...
- Page 15 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made LEFT SIDE PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 30153BK-PTX 29/06/2022...
- Page 16 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made DOOR PANEL ASSEMBLY SINGLE DOOR Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of...
- Page 17 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made DOOR PANEL ASSEMBLY SINGLE DOOR PANEL NOTE: Nuts and bolts are also supplied and may be used instead of rivets. Use a 4mm drill bit to enlarge 3/16”...
- Page 18 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
- Page 19 ABSCO BIKE SHED MODEL: 30153BK-PTX 10’ W x 5’ D x 5’11”H, 6’10”H Australian Made FINAL CONSTRUCTION ANCHORING OF SHED 12x CONCRETE ANCHOR LOCATIONS Bolt and Nut Wall Sheet Steel Angle 1 ³⁄8” x 1 ³⁄8” x ¹⁄8” Each anchor consists of one nut, bolt, M10 dynabolt and steel angle.
- Page 20 THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
