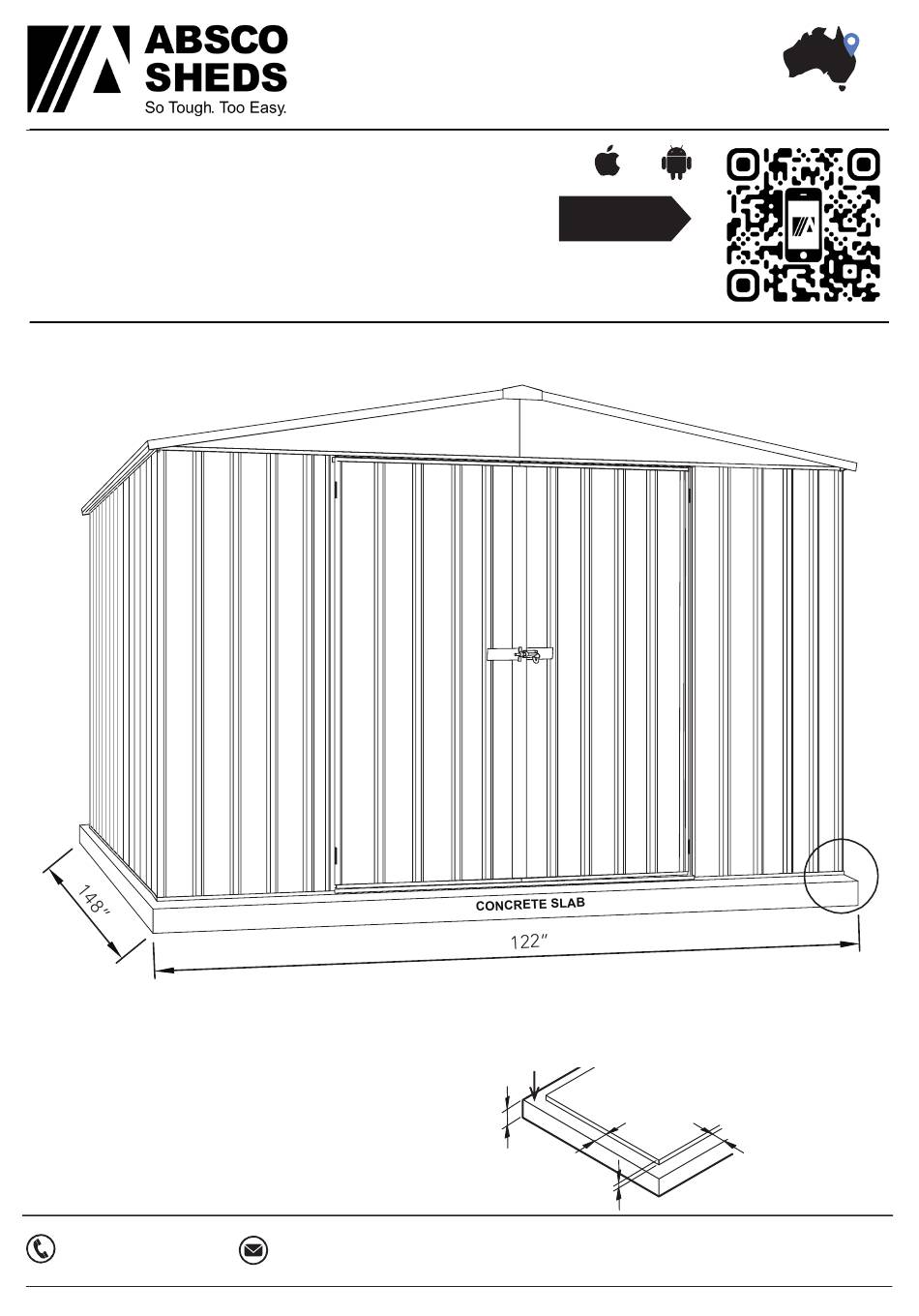

When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated section is 1" high and inset 3" on all sides
from the overall slab base dimensions
AU: 1800 029 701
+1 (866) 788 3046
+1 (866) 788 3046
N Z: 0800 466 444
Absco Industries
ABSCO REGENT SHED
MODEL: 30372RK-PTX
10' W x 12' D x 7' H
admin@absco.com.au
admin@absco.com.au
www.abscogardensheds.com
www.abscosheds.com.au
Assembly Instruction Manual
Scan to
download
WALLS SIT
ON THIS LEVEL
RAISED FLOOR
INSIDE SHED
4"
3"
1"
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
Model: 30372RK-PTX
Australian Made
+
Overall slab base
dimensions for this
model are as shown
3"
Illustration not to
12/12/23
2.1
above.
scale.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS REGENT 30372RK-PTX
Summary of Contents for ABSCO SHEDS REGENT 30372RK-PTX
- Page 1 MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made ASSEMBLY APP AVAILABLE ON We highly recommend downloading the Absco Sheds Scan to download Assembly App to assist with your build. STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY CUSTOMER SERVICE •...
- Page 2 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made GENERAL INSTRUCTIONS SAFETY NOTES • Before commencing any assembly, read • Some parts may have sharp edges. It is through these instructions in detail to gain advisable to wear gloves when handling these a thorough understanding of assembly items and safety glasses if drilling holes.
- Page 3 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made COMPONENT PACKING LIST Check off all components. DESCRIPTION PART # DESCRIPTION PART # STEEL SHEET STEEL SHEET 70.3” x 30.4” 70.3” x 731 mm STEEL SHEET STEEL SHEET 70.3”...
- Page 4 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made COMPONENT PACKING LIST COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 77AL 77AR CHANNEL CHANNEL 58.9” 58.9” 55CL 55CR CHANNEL CHANNEL 58.9” 58.9” 62AL 62AR CHANNEL CHANNEL 72”...
- Page 5 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made COMPONENT PACKING LIST COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION Part No. Here Part No. Here JAMB 44” JAMB 70.3” Part No. Here Part No. Here JAMB 67.9”...
- Page 6 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel. Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
- Page 7 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1.
- Page 8 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made PRE-ASSEMBLY OF SPLICED CHANNELS Join together 22 x channel sections using 11 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
- Page 9 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made Guide on Joining a Spliced Ridge Beam If present, remove plastic coating from top side of ridge beam capping before assembly. Follow these three steps to assemble a ridge beam. ZARSP 8.86”...
- Page 10 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made PRE-ASSEMBLY OF SPLICED RIDGE BEAM ZARSP = 1x 97D 1x 97DL 1x 97DR Absco Industries Assembly Instruction Manual Model: 30372RK-PTX 12/12/23...
- Page 11 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made ROOF AND WALL OVERVIEW Further details on following pages Absco Industries Assembly Instruction Manual Model: 30372RK-PTX 12/12/23...
-
Page 12: Rear Panel Assembly
ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made REAR PANEL ASSEMBLY 1x required. NOTE: Trim the tips of the centre sheets with tinsnips to allow channels to fi t hard up to the edge of the sheet before attaching channels. - Page 13 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made ROOF PANEL ASSEMBLY 2x required. Fit 81L to edge of sheet with pre- punched holes. Absco Industries Assembly Instruction Manual Model: 30372RK-PTX 12/12/23...
-
Page 14: Side Panel Assembly
ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made SIDE PANEL ASSEMBLY 2x required. SMALL PAN SMALL PAN Absco Industries Assembly Instruction Manual Model: 30372RK-PTX 12/12/23... -
Page 15: Front Panel Assembly
ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made FRONT PANEL ASSEMBLY 1x required. Absco Industries Assembly Instruction Manual Model: 30372RK-PTX 12/12/23... -
Page 16: Door Panel Assembly
ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made DOOR PANEL ASSEMBLY 1x required. Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of of channel channel Four hole set for... - Page 17 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made DOOR PANEL ASSEMBLY Nuts and bolts may be used instead of pop rivets by drilling out hinge holes using a 4mm drill bit. Both are supplied. The two holes required to connect the padbolt hasp for each door have not been pre-punched, to 1/8”...
- Page 18 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre- punched.
- Page 19 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made OUTSIDE VIEW INSIDE VIEW OF REAR WALL ROOR OVERHANGS ALL WALL PANELS Drill new holes in the ridge beam (1/8” bit) through the peak brace and fix with a 1.4”...
- Page 20 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made FINAL CONSTRUCTION Bend the top and bottom flanges as shown, then hook the bottom flanges under the top channel and screw top to the ridge beam with two screws. ANCHORING OF SHED Location of 16...
- Page 21 ABSCO REGENT SHED MODEL: 30372RK-PTX 10’ W x 12’ D x 7’ H Australian Made REINFORCING ROOF INSTALL ADDITIONAL SCREWS ALONG THE UNDERSIDE OF THE RIDGE BEAM, CENTERED IN EVERY SECOND PAN OF THE ROOF SHEETING AS PICTURED. THESE POSITIONS DO NOT HAVE PRE-PUNCHED HOLES SO USE THE SUPPLIED DRILL BIT TO PREDRILL HOLES THROUGH THE RIDGE BEAM, THE ROOF PANEL CHANNEL INSIDE IT AND THE ROOF SHEET.
