Technical Support and E-Warranty Certificate www.vevor.com/support

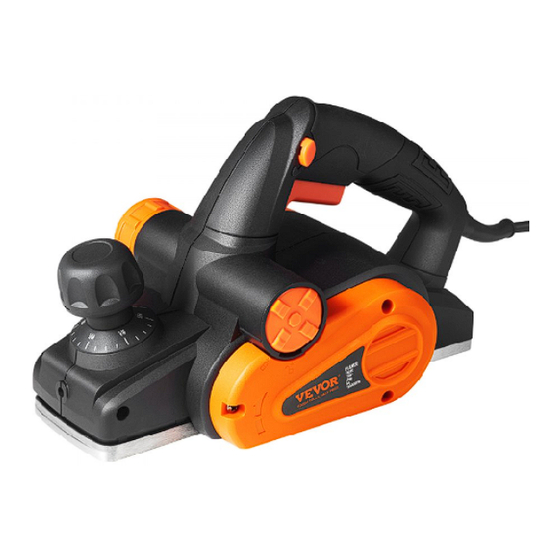

PLANER
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR 2822C
Summary of Contents for VEVOR 2822C
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support PLANER USER MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: General Power Tool Safety Warnings
Symbol Symbol Description Warning - To reduce the risk of injury, user must read instructions manual carefully. This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below. - Page 5 ◆Keep work area clean and well-lit. Cluttered or dark areas invite accidents. ◆Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks that may ignite dust or fumes. ◆...
- Page 6 under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ◆ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 7 from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. ◆Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 8: Product Description And Specifications
◆Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control. ◆ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. - Page 9 Product Features The numbering of the product features refers to the illustration of the machine on the graphics page. 1. Parallel Guide 6. Lock-Off Button for On/Off 2. Lock Screw 3. Depth Adjustment Knob Switch 4. Planing Depth Scale 7. On/Off Switch 5.
-
Page 10: Technical Data
PART NO. DESCRIPTION Planer Blade Hex Wrench Wrench Parallel Guide Dust Bag Storage Bag 3. TECHNICAL DATA MODEL NO 2822C Rated 220V-240V, 50 Hz 120V, 60 Hz Voltage/Frequency Rated Input Power 710W No-Load Speed 16500 r/min Planing Width.Max 80 mm... - Page 11 edges are dull, the planer blade must be replaced. The blade may not be resharpened. 4.1 Disassembling the Planer Blade(s) (see figure A) To reverse or replace the planer blade 14, rotate the blade drum 11 until it is parallel to the planer base plate 9. ...
- Page 12 ◆Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, are considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative).
-
Page 13: Operation
The chip ejector 5 can be inserted into the right or left side. If you want to change it to the right or left side, turn the chip pipe as the figure shows, pull it out, and change to another side, insert it, and lock it. - Page 14 the planing depth from 0–2.0 mm using the planing depth scale (scale graduation = 0.25 mm). 5.2 Park Rest The park rest 8 allows the machine to be set down directly after operation, without danger of damaging the working surface or the planer blade.
- Page 15 Set the required planing depth and place the front part of the planer base plate against the workpiece. ◆ Before any work on the machine itself, pull the mains plug . ◆ Apply the machine to the workpiece only when switched on. Otherwise there is danger of kickback when the cutting tool jams in the workpiece.
- Page 16 (). This tilts the park rest upward () so that the rear part of the planer base plate faces the workpiece again. Guide the machine over the surface to be planned () with even feed. 5.5 Beveling Edges The V-grooves in the front planer base plate allow quick and easy beveling of workpiece edges.
- Page 17 Ensure easy operation of the park rest 8 and clean it regularly. If the replacement of the supply cord is necessary, this has to be done by VEVOR or an authorized VEVOR service agent in order to avoid a safety hazard.
- Page 18 6. DISPOSAL The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of power tools as household waste! Only for EC countries: According to the European Directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
