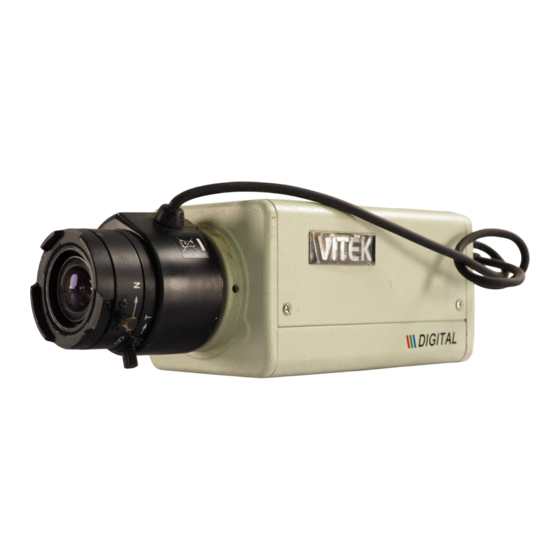

Vitek VTC-C574 Instruction Manual

1/3" Hi-Res Color CCD Camera

INSTRUCTION MANUAL

Warning: To prevent fire or electric shock hazard, do not expose
the appliance to rain or moisture
1 General
This color video camera employs 1/3 inch SONY charge coupled device solid-state
imaging device, and equipped with a newly developed DSP (Digital Signal
Processor) for video signal processing, to provide high color fidelity, sharp, stable
picture.
2 Features
1. 480 lines of horizontal resolution and high quality video utilizing digital processing
2. 0.5lux Minimum illumination and signal-to-noise ratio of 48 dB is achieved by
employing a highly sensitive image sensor with micro lenses and low noise circuit
design.
3. High quality picture –A digital signal processor performs digital horizontal and
vertical aperture enhancement to produce high quality picture.
4. A newly developed intelligent wide range Auto Tracing White Balance (ATW) that
automatically adjusts the tone according to the color temperature of the light
source.
5. Smart digital control Auto BLC, the combination of Histogram equalizer and
Central windows weighting BLC functions ensure for use against any unusual
lighting conditions.
6. Advanced Auto Exposure System for both fixed iris and auto iris lenses controls
the amount of light to ensure optimum video signal.
7. AC 24V model built-in Line-lock sync.
To prevent electric shock, do not remove screws or covers.
There are no user serviceable parts inside.
Contact a qualified service person if necessary.
VTC-C574
1
