Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.

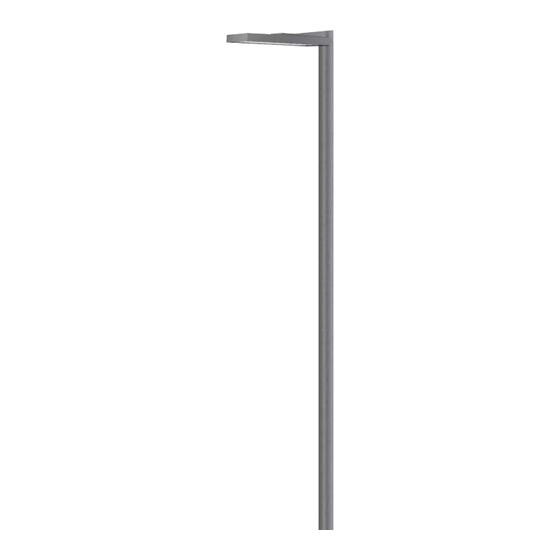

WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Street and Area Lighting Luminaire
VFL530
VFL540
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF VFL530
Summary of Contents for WE-EF VFL530
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Street and Area Lighting Luminaire VFL530 VFL540 Do not open during installation This product is factory-sealed. Refer to the instructions contained in this document for details. Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards.
- Page 2 ø 76 x 80 ø 76 x 80 IP66, IK08, Class I, ta = 25°C Mounting height for VFL530/VFL540 3 - 6 Weight for VFL530 - 12 LED max 6.4 for VFL530 - 24 LED max 6.6 for VFL540 max 8.4 Windage area VFL530 0.040...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation Procedure
Installation Installation Procedure The product must be installed and maintained by a 1) Switch off mains electrical supply. 2) Check that rating shown on luminaire label conforms building/construction and/or electrical regulations and with mains electrical supply. relevant legislation. 3) Feed mains cable C into pole D, while setting luminaire assembly in position. - Page 5 Supply cable...
- Page 6 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9183W0520© WE-EF 2020 subject to change.
