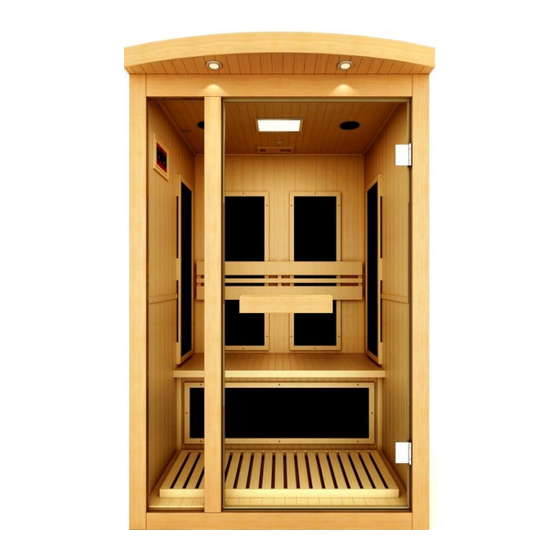

Golden Designs KFM-5210-01 Owner's Manual
  1. Manuals
  2. Brands
  3. Golden Designs Manuals
  4. Plumbing Product
  5. KFM-5210-01
  6. Owner's manual

Golden Designs KFM-5210-01 Owner's Manual

1, 2 & 3 person far infrared saunas
Hide thumbs Also See for KFM-5210-01:
Table of Contents

Advertisement

Quick Links

Download this manual
Infrared Sauna Owner's Manual
Models: KFM-5210-01 / KFM-5220-01 / KFM-5230-01
1, 2 & 3 Person FAR Infrared Saunas
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
1-2 Person Models - 120VAC 15AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and
future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFM-5210-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Golden Designs KFM-5210-01

Summary of Contents for Golden Designs KFM-5210-01

  • Page 1 Infrared Sauna Owner’s Manual Models: KFM-5210-01 / KFM-5220-01 / KFM-5230-01 1, 2 & 3 Person FAR Infrared Saunas CARBON MODEL SAUNA FOR INDOOR USE ONLY 1-2 Person Models - 120VAC 15AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Dimensional Diagram Screw Identification Chart Highlights Panel Descriptions Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Maintenance Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 3: Are Infrared Rays Safe

    What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL). Currently, there is no consensus on the potential health hazard from any exposure to EMF.

  • Page 5: How It Works

    surgical implants) typically do not experience any adverse effects, but should also consult their medical physician or surgeon before using the sauna room. HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration.
  • Page 6 *Increases blood circulation *Clears, rashes, acne *Enhances skin tone *Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins Sauna Maintenance Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little maintenance. You can simply wipe it down with water – use a damp, soft, and clean cloth.
  • Page 7 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* KFM-5210-01 (SJ-8103 *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately.
  • Page 8 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* KFM-5220-01 (SJ-8203 *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately.
  • Page 9 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* KFM-5230-01 (SJ-8303 *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately.

  • Page 10: Parts Description

    PARTS DESCRIPTION KFM-5210-01 (SJ-8103) NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
  • Page 11 PARTS DESCRIPTION KFM-5220-01 (SJ-8203) NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
  • Page 12 PARTS DESCRIPTION KFM-5230-01 (SJ-8303) NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
  • Page 13 DIMENSTIONAL DIAGRAM for KFM-5210-01 (SJ-8103)
  • Page 14 DIMENSTIONAL DIAGRAM for KFM-5220-01 (SJ-8203)
  • Page 15 DIMENSTIONAL DIAGRAM for KFM-5230-01 (SJ-8303)

  • Page 16: Screw Identification Chart

    Screw Identification Chart...

  • Page 17: Highlights

    Highlights A. High quality craftsmanship B. Temperature control C. Timer D. Infrared carbon heat emitter panels E. Control Panel: F. Power supply: G. MP3 Jack: H. Buckles:...

  • Page 18: Panel Descriptions

    Guide and Guide Inserts: Panel Descriptions For easier assembly, please understand and distinguish the differences between each panel. FLOOR PANEL When the FLOOR PANEL faces upward, the FLOOR HEATER will sit on top of the FLOOR PANEL and towards the front of the sauna.
  • Page 19 Rear Wall Heater Cords Figure 2 Side Wall Heater Cords Figure 3 Assembly Please note the following: A. You will need a Philips screwdriver, ladder, and two adults to assemble. B. Do not plug any other appliances into the power supply of the sauna room other than the designated sauna connections/plugs.
  • Page 20 1. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANEL A. Please note that you will need to be able to walk around the sauna room during the assembly process. Leave space behind the sauna to install the FLOOR PANEL in the next step.
  • Page 21 2. Installing the FLOOR PANEL A. Place the FLOOR PANEL at the rear of the sauna room. You will need to slide the FLOOR PANEL in between the LEFT SIDE WALL PANEL/RIGHT SIDE WALL PANEL and toward the FRONT WALL PANEL. (see Figure 5) Figure 5 3.
  • Page 22 B. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will need to slide the BENCH HEAT EMITTER PANEL into place at an angle as indicated in the pictures below. See Figure 7. Make sure to run the FLOOR HEATER cord underneath the BENCH HEAT EMITTER PANEL as there is a cutout for it.
  • Page 23 5. Installing the ROOF PANEL A. The side of the ROOF PANEL with the power supply (control box) is the top of the ROOF PANEL. B. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the panels.
  • Page 24 Figure 10 7. Connecting the plugs on the ROOF PANEL A. Connect all the wires and connectors to the corresponding outlets on the Roof Panel. Please be sure all the plugs are connected snug and tight. (see Figure 11) Figure 11 Make sure all steps are completed correctly.

  • Page 25: Installation Completed

    8. Installing the TEMPERATURE SENSOR and Optional MAGAZINE RACK/TOWEL RACK A. Enter the sauna and remove the protective covering (masking tape, if present) from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 11) Figure 11 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged during transit.

  • Page 26: Operating The Sauna

    Operating the Sauna 1. Precautions A. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. B. Set the temperature and time to a comfortable level. Please keep in mind that you can either preheat the sauna to the set temperature before entering or sit inside the sauna as the temperature rises.
  • Page 27 B. The sauna should be unplugged when not in use. C. To set the temperature, press the temperature buttons to increase or decrease the temperature to the desired temperature. If the “Heat" light is on, the temperature setting will increase one degree every time the button is pressed.
  • Page 28 E. Press the button to turn the Red Light Therapy ON/OFF. The Red Light Therapy can operate when the sauna’s power is ON/OFF. F. You can operate the sauna with the ceiling vent in the open or closed position. G. After your sauna session is over, you can turn the control panel off by pressing the ON/OFF button.

  • Page 29: Tips For Using Your Sauna

    sauna room before it has reached the set temperature. Also, the most commonly used temperature setting is between 118 degrees Fahrenheit / 48 degrees Celsius and 122 degrees Fahrenheit / 50 degrees Celsius. The way the sauna room works is when you set the Control Panel to say 120 degrees F / 49 degrees C, the heat emitters will turn off when that set temperature is reached.

  • Page 30: Safety Instructions

    11. To conserve energy consumption, please unplug your sauna when not in use – especially if you do not plan on using the sauna for an extended period of time. 12. After the sauna session is over, do not jump into the shower or bath immediately. Because your body was heated up during the sauna session, it will continue to perspire even after the heat emitters are off.

  • Page 31: Safeguards For Your Sauna

    13. Do not stack or store any objects on top of or inside the sauna, especially near or around the heaters. 14. If the power supply cord becomes damaged, it must be replaced immediately by the manufacturer or its agent. If you find the power cord is too hot (normally it will become warm) or that the electrical equipment may be experiencing technical problems, please contact the manufacturer or its agent immediately to avoid hazardous situations.

  • Page 32: Troubleshooting

    near a swimming pool (if water will splash on the sauna). 2. Do not use liquid cleaners or aerosol cleaners on the sauna. Unplug the sauna from the wall outlet before cleaning. Use plain water and a soft damp cloth for cleaning.
  • Page 33 Sauna is not powering Power cord is unplug Plug the power cord into wall outlet Outlet has no power Check your circuit breaker to confirm power at the wall outlet GFCI protected outlet/circuit Replace the outlet/circuit breaker breaker is not recommended with non-GFCI ones The temperature The connector of temperature...

  • Page 34: Maintenance

    Maintenance Cleaning Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall outlet before cleaning. Use plain water and a soft cloth for cleaning. Do not use benzene, alcohol, or strong cleaning chemicals in or on the sauna. NOTE: Any chemical that can damage wood or be absorbed into the wood will damage the sauna.

  • Page 35: Limited Lifetime Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty*: Golden Designs, Inc. under the Dynamic brand name warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.
  • Page 36 ▪ Outdoor applications ▪ Normal wear and tear or weathering ▪ Use of product not in accordance with instructions ▪ Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.

  • Page 37: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
