Thank you for purchasing our fine product!
This package contains all tools necessary for assembly.
WARNING
: Failure to follow these directions and warnings can result in serious injury
and/or product damage.
!
Assistance is required to assemble this table.
!
Never stand on the table or use it as a ladder.
!
Periodically re-tighten all bolts and legs.
!
Do not exceed 100 lbs. (45.36 kg) weight limit on the table.
!
If any parts become missing, damaged or worn, discontinue use until they are replaced with identical parts.
!
Always seek assistance before moving furniture.

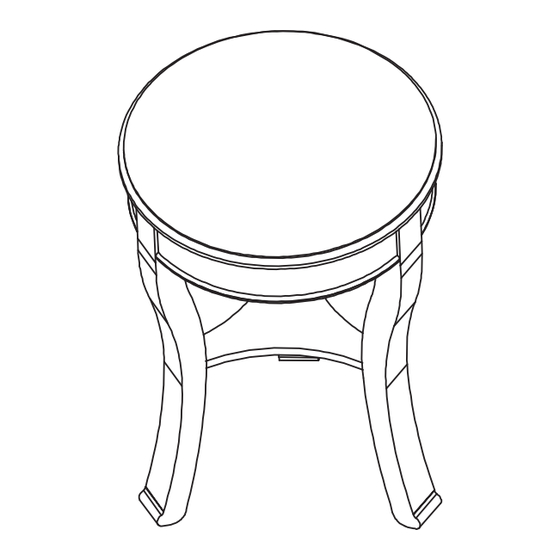

#8530 Accent Table
Assembly Instructions
Give us a chance to make it right.
Do not return this item to the store. Contact our friendly customer
service department with any
for missing or damaged parts are normally shipped the same day!
TOLL FREE: 1-866-528-8364
Monday - Friday, 8am-5pm, ET. After business hours, leave a message.
We will return your call the next business day.
#8530 Accent Table
problems or comments
. Replacements
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accent 8530 and is the answer not in the manual?

Questions and answers

Summary of Contents for µ-Dimension Accent 8530

  • Page 1 #8530 Accent Table Assembly Instructions Thank you for purchasing our fine product! This package contains all tools necessary for assembly. Give us a chance to make it right. Do not return this item to the store. Contact our friendly customer service department with any problems or comments .
  • Page 2 #8530 Accent Table m e n o n Assembly Instructions Furniture PARTS LIST Drawing Part Name Drawing Part Name Qty. Part Qty. Part 1/4” Bolt Table Top W/ Washers 5/16” Bolt W/ Washers 1/4” Shelf Allen Wrench “L” Shaped 5/16” Bracket Allen Wrench Step 1 - Remove all parts from their packaging and confirm that the quantities match those listed...
  • Page 3 #8530 Accent Table Assembly Instructions Step 2 Place the Table Top (Part A) top side down on a flat surface. Align the bolt holes on the inside of the Leg (Part B) with the bolt holes in the leg blocks on the underside of the table. Insert clockwise, six 5/16” Bolts w/ Washers (Part F) through the leg blocks and into the legs.
