VINCAVE WINE CELLAR INSTALLATION INSTRUCTIONS
FOR VINCAVE 200 WINE CELLAR
Choose the desired placement for the wine cellar and excavate accordingly. Create an opening space beneath
the floor where you place the wine cellar and make sure that it is leveled with the floor. The wine cellar must be

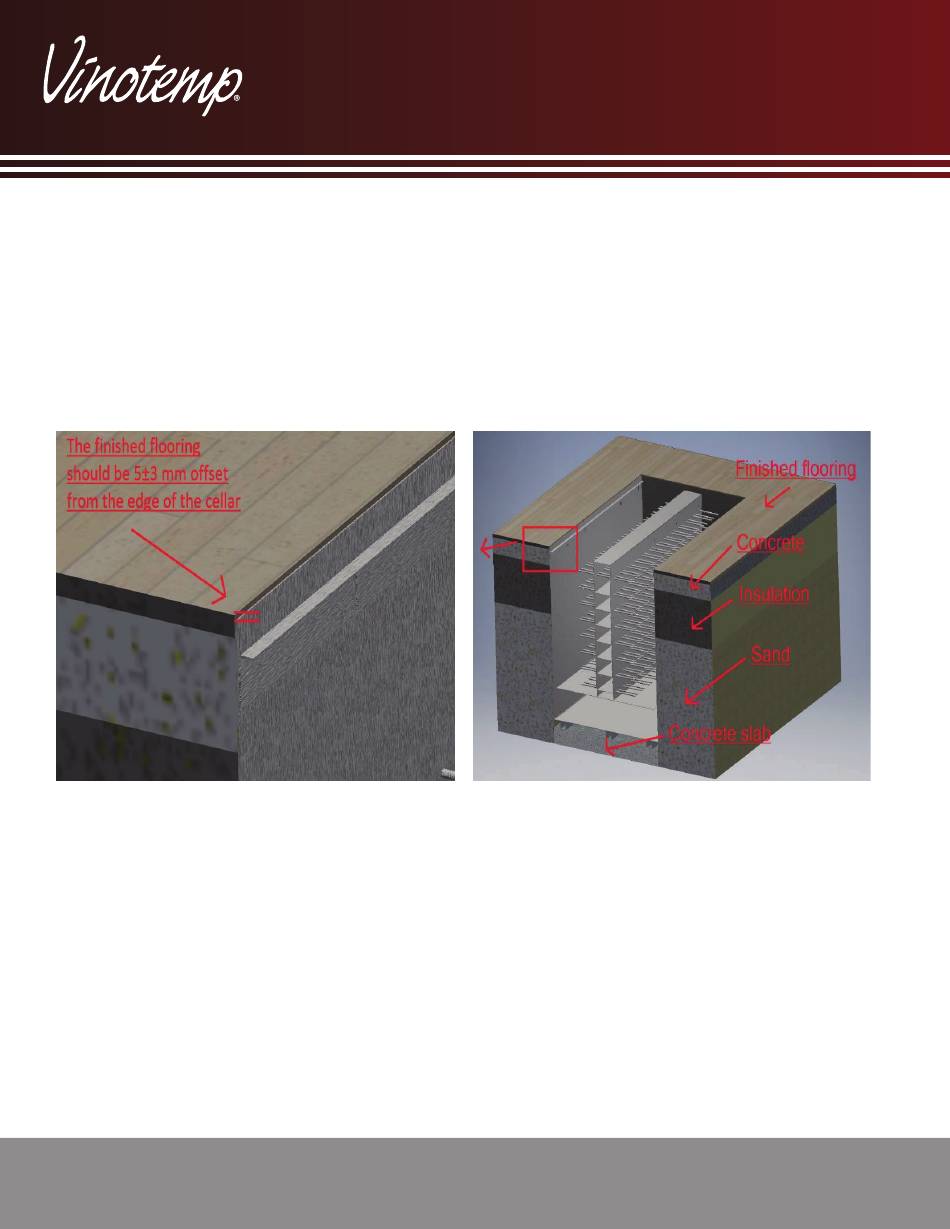

placed properly, so that it measures 5±3 mm under the finished floor. The figure below shows the cast flooring
in addition to the laid flooring.
In the case of underfloor heating, the heating tubes must not be closer than 400mm to the wine cellar as the heat
from these will interfere with the delicate climate of the wine cellar.
When the wine cellar is placed, the ventilation tubing is passed under the inner wall to the outer wall and is
connected to the enclosed ventilation pipes (see figure next page). The enclosed ventilation pipes are
then walled into the outer wall to keep the ventilation tubing in place. The walled in pipes are then hidden
with the enclosed decorating grill.
