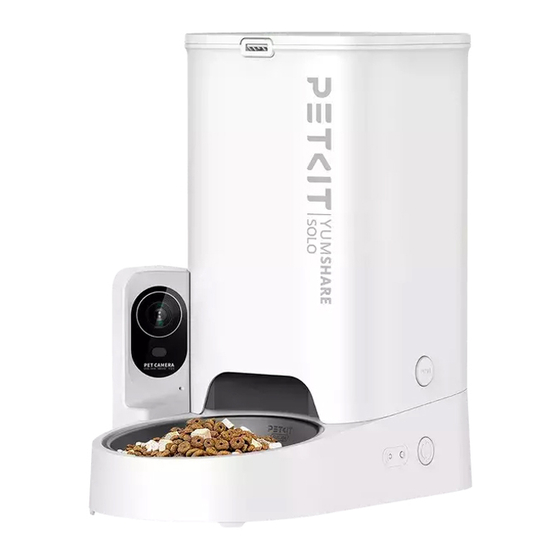

PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER User Manual
  1. Manuals
  2. Brands
  3. PETKIT Manuals
  4. Pet Care Product
  5. YUMSHARE SOLO WITH CAMERA SMART PET FEEDER
  6. User manual

PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
PETKIT YUMSHARE SOLO WITH CAMERA
SMART PET FEEDER
Please read the User Manual carefully before using
the product and keep it properly.
V1.0-2023.11

Advertisement

loading
Need help?

Need help?

Do you have a question about the YUMSHARE SOLO WITH CAMERA SMART PET FEEDER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER

Summary of Contents for PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER

  • Page 1 USER MANUAL PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER Please read the User Manual carefully before using the product and keep it properly. V1.0-2023.11...
  • Page 2 TABLE OF CONTENTS PRODUCT LIST PRODUCT DESCRIPTION PRODUCT INSTALLATION HOW TO USE DESCRIPTION OF APP FUNCTIONS CLEANING AND MAINTENANCE VIDEO GUIDE BASIC SPECIFICATIONS A MESSAGE TO OUR VALUED CUSTOMERS USER SAFETY GUIDE...

  • Page 3: Product List

    RETURN TO CONTENTS PRODUCT LIST *Please confirm that the following accessories are complete before installation and use. (Batteries or screwdrivers are not equipped and need to be purchased separately) Main Unit Food Bowl Hopper DESICCANT USER MANUAL Adapter Desiccant User Manual *Note: in order to provide a better user experience, we will be implementing periodic product enhancements.

  • Page 4: Product Description

    RETURN TO CONTENTS PRODUCT DESCRIPTION Lid Release Button Hopper Notch Dispensing Module Camera Main Unit Non-detachable PUSH Button Microphone Feeding Button Food Bowl Wi-Fi Setting Button Food Bowl Indicator Light Holder Desiccant Compartment Food Dispensing Vanes Speaker Power Input Back of the Interior of main unit the lid...

  • Page 5: Product Installation

    RETURN TO CONTENTS PRODUCT INSTALLATION 3.1 Instaling the Main Unit ① Place the main unit on the level ground or desk. ② Li the hopper, align the notches on both sides with the PUSH button on the main unit, and place it vertically downwards. ③...

  • Page 6: Installing The Backup Batteries

    RETURN TO CONTENTS 3.3 Installing the Backup Batteries ① Take out the screw and remove the battery cover. ② Take 5 AAA batteries and place them in the battery compartment.(Pay attention to the orientation of the positive and negative ends) ③...

  • Page 7: How To Use

    RETURN TO CONTENTS HOW TO USE 4.1 Adding Pet Food ① Open the lid to add pet food, and do not exceed the MAX line. * Recommended kibble size of dry food ≤12mm (0.47in) Recommended kibble size of freeze-dried food ≤9mm (0.35in) ②...

  • Page 8: Indicator Light

    RETURN TO CONTENTS 4.2 Indicator Light The indicator light can be turned on/o in the app. The indicator light is not on in battery mode. Indicator Status light White light is Device is not connected to flashing slowly Wi-Fi White light is Device is connecting to flashing quickly Wi-Fi...

  • Page 9: App Store

    Available on Android stores ② Add a device Open the PETKIT App and enter its homepage; click “+” on the top right corner of the page to select and add the “PETKIT YUMSHARE SOLO WITH CAMERA ”. 9:41 Hello, PETKIT Device 智能双子星喂食...
  • Page 10 2.4 band when connecting the device to the Internet. *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -10-...
  • Page 11 CONTENTS ④ Read usage guidelines A er the device successfully connects to the PETKIT App for the first time, to ensure pet safety and proper use of the product, please carefully read the usage guidelines and appropriately use the product according to the instructions.
  • Page 12 PETKIT Care+ Service Agreement. ④ Function keys *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -12-...
  • Page 13 (You need to turn on the microphone first via the App.) *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -13-...
  • Page 14 *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -14-...
  • Page 15 RETURN TO CONTENTS 5.2 Three Ways to Play Videos A er subscribing the PETKIT Care+ Cloud Service, click the Timeline on the homepage of the device to play back full clips, highlight with speedup options. ① Highlight playback You can preview 4-second videos that are sped up by clicking them in the Timeline.
  • Page 16 Switch the tag to “Playback” to watch complete video clips. *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -16-...
  • Page 17 2x play. *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -17-...
  • Page 18 “Full” and click the “ . . . ” on the top right corner to delete the video. *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -18-...

  • Page 19: Privacy Protection

    *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -19-...
  • Page 20 The Entire Day Camera is turned on during set time. *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -20-...
  • Page 21 When the camera is turned on, the light is green; when o , the light is white. *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -21-...
  • Page 22 If it is turned o , there is no sound for any video footage. Microphone Enable/disable sound collection. Basic Settings *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -22-...
  • Page 23 Real-time frame privacy *Note: To provide the best possible user experience and functional optimization, the product firmware will be irregularly upgraded. Please refer to actual situations and promptly upgrade the firmware via PETKIT App. -23-...

  • Page 24: Additional Notes

    Multiple purchases of the Service are supported. PETKIT sta will provide you service upgrade or extension according to the attributes of the service you have bought. The Cloud Service is allowed to be transferred to another device for once a year.

  • Page 25: Cleaning And Maintenance

    RETURN TO CONTENTS CLEANING AND MAINTENANCE ① Open the lid to remove the desiccant, and then remove the food bowl. ② Hold the PUSH buttons on both sides of the main unit with middle fingers, and li it up at the same time to remove the hopper. -25-...
  • Page 26 RETURN TO CONTENTS ③ Pull out the food dispensing vanes in the hopper. Food dispensing vanes ④ Rotate clockwise to remove the impeller cover and take out the impeller. Bottom of the container Impeller Impeller Rotate clockwise cover ⑤ Clean the hopper, vanes, impeller cover, impeller, upper lid and food bowl in turn. It is recommended to add appropriate amount of detergent and rinse well.

  • Page 27: Video Guide

    7.2 Video of Cleaning and Maintenance Please copy the video URL and open it in your browser to watch the video. https://youtu.be/Rfj6vm6sF40 BASIC SPECIFICATIONS Product Name PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER Product Code P571 Product Dimensions 316*186*296mm (12.4*7.3*11.7in)

  • Page 28: User Safety Guide

    CONTENTS A MESSAGE TO OUR VALUED CUSTOMERS · Thank you for choosing to purchase PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER. · Please carefully read the User Manual before using the product. By setting up and using this product, you are acknowledged that you have already read and accepted the safety guidelines listed below.
  • Page 29 RETURN TO CONTENTS Disposal The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment(WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials theycontain and reduce the impact on human health and the environment.
