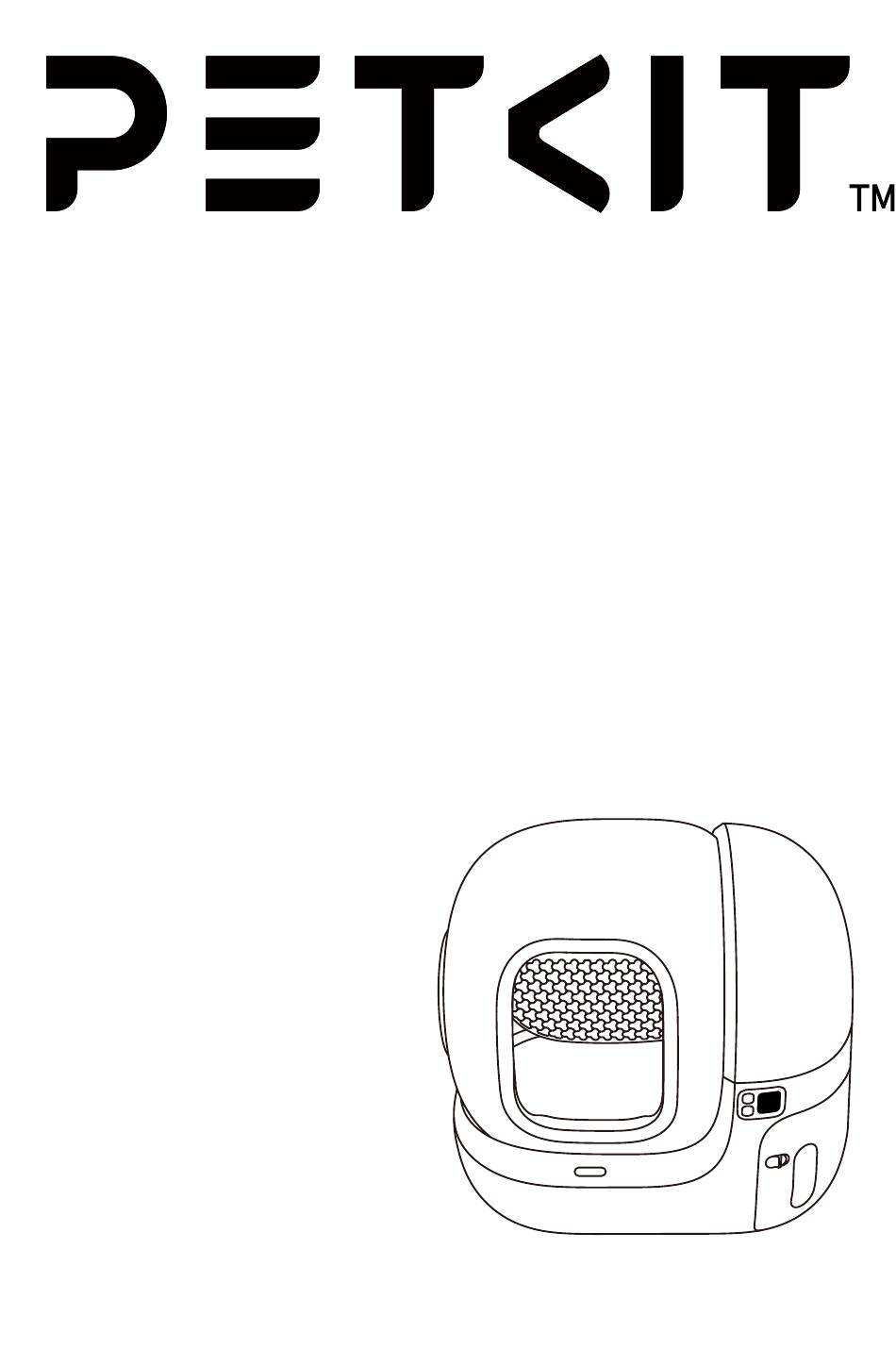

- Page 1 USER MANUAL PETKIT PURA MAX 2 SELF-CLEANING CAT LITTER BOX * The user manual applies to both the basic package and the premium package. * Please read through this user manual before using the product and keep it properly. V1.0-7/2024...
- Page 2 TABLE OF CONTENTS PRODUCT LIST PRODUCT DESCRIPTION PRODUCT INSTALLATION HOW TO USE CLEANING AND MAINTENANCE VIDEO GUIDE BASIC SPECIFICATIONS A MESSAGE TO OUR VALUED CUSTOMERS SAFETY GUIDE...
- Page 3 * The installation and disassembly method is the same as the standard litter si er. See 5.2-❶❷ Main Unit and 5.5-❹❺❻ for details. Magnetic Cat Litter PETKIT Air Purifier Smart Spray Remover * Only included in the premium package. Power Trash...
- Page 4 RETURN TO CONTENTS PRODUCT DESCRIPTION Cylinder Magnetic Side Cover Side Cover Menu Button Magnetic Standard Power Port Litter Si er OLED Display High Screen Performance OK Button Cat Litter Lid of Waste Bin Pad MAX Basket for N50 Proximity Sensor Waste Bin Latch * Note: In order to provide better products, we will regularly improve the product.
- Page 5 RETURN TO CONTENTS Introduction of Accessories Name Functional Description Litter Si er E ectively filter clumps without clogging or leakage. High Performance Cat Litter Anti-stick, scratch-resistant, and easy to clean. Pad MAX Pet Odor Eliminator N50 2.0 Prevent odor spreading by decomposing odors in the waste bin.
- Page 6 RETURN TO CONTENTS ❷ Install the trash bag in the waste bin, ensuring the trash bag is attached to the bottom of the waste bin, and then put the lid on. Note: The two sides of the lid need to clamp the trash bag. (as shown in Fig. 1) Fig.
- Page 7 RETURN TO CONTENTS ❺ Take out the power adapter, insert it into the power port on the back of the main unit, and then plug it in. HOW TO USE 4.1 Add Cat Litter Note: Do not use large particles of cat litter larger than 1.2cm in length and 3mm in diameter. ❶...
- Page 8 RETURN TO CONTENTS ❷ When the cylinder stops with the ❸ Double-press the OK button opening facing up, pour in the cat litter. the device will automatically level o the Press the OK button to exit cat litter. “Maintenance Mode”. Level cat litter Caution: The amount of cat litter doesn’t exceed the MAX line of the...
- Page 9 Level Cat Litter The air purifier begins to deodorize. * To perform this function, the Level the cat litter in the cylinder installation of PETKIT air purifier (use it a er adding cat litter). is required. ❷ Displayed Status Description...
- Page 10 RETURN TO CONTENTS ❸ Other Prompts Description There will be scrolling text at the bottom of the screen. Prompts Description The cat enters while the device is in operation (the device will The cat has automatically pause and alert). approached the detection zone The cat litter is insu icient.
- Page 11 Google Play. ❷ Add the device Open the app, click “+” in the top right corner and choose “PETKIT PURA MAX 2 SELF-CLEANING CAT LITTER BOX”. 9:41 PETKIT Note: The actual app interface may di er from the image shown due to continuous so ware upgrades;...
- Page 12 RETURN TO CONTENTS ❸ tart connection Press the menu button on the device to switch to “Configure network”, then press the OK button to execute this function. The screen will display “Connecting...”, and the app will start connecting to the device. Please wait until the configuration is successful. Note: The actual app interface may di er from the image shown due to continuous so ware upgrades;...
- Page 13 RETURN TO CONTENTS ❹ Read instructions To ensure your pet’s safety and use this product properly, please read the instructions carefully a er connecting to the app for the first time. Note: The actual app interface may di er from the image shown due to continuous so ware upgrades;...
- Page 14 RETURN TO CONTENTS 4.4 Smart App Control ❶ Check device’s status Enter the device’s home page and check its working status, pet toilet times, waste bin status, etc. Reminder of the odor eliminator’s service life Reminder of waste container status Note: The actual app interface may di er from the image shown due to continuous so ware upgrades;...
- Page 15 Smart settings: Set up cleaning mode and safety mode. Odor removal: Click it to deodorization. * To perform this function, it is required to install PETKIT AIR PURIFIER SMART SPRAY. Light on: Click it to turn on the light in order to check the internal condition of the cylinder.
- Page 16 RETURN TO CONTENTS 4.5 How to use PETKIT AIR PURIFIER SMART SPRAY Click “Binding AIR PURIFIER” on the device’s home page, or click “Super Deodorizing” in the settings to bind the AIR PURIFIER. ❶ Odor removal: A er the pet leaves the litter box, the AIR PURIFIER will automatically spray to keep air fresh.
- Page 17 RETURN TO CONTENTS 4.6 Other functions ❶ Kitten Mode Turn on this mode if you have kittens or pregnant cats at home. When this mode is on, auto-cleaning and periodical cleaning will be disabled. You can click “Clean now” to clean the cat litter.
- Page 18 RETURN TO CONTENTS CLEANING AND MAINTENANCE For the cat’s health, it is suggested to regularly clean and replace these parts. Caution: Before operation, please make sure the device is powered o . Cylinder Litter si er Cat litter Base of main unit -18-...
- Page 19 RETURN TO CONTENTS When to Name of How to When to Clean How to Clean Replace Disassemble Parts When the inner Clean it with a Cylinder Refer to 5.3 surface is dirty. brush and dry it. When it is Clean it in time Clean it with a Litter bent and...
- Page 20 RETURN TO CONTENTS 5.1 Empty Cat litter Before Cleaning ❶ Pinch the raised part in the middle of ❷ Click “Empty litter” on the app, and the magnetic cat litter remover and align then empty the cat litter in the cylinder the three grooves on it with the according to the guide.
- Page 21 RETURN TO CONTENTS 5.3 Disassemble Cylinder ❸ Pinch the handle of the cat litter pad to ❶ Remove the magnetic side cover pull out the cat litter pad. upward. ❸ Remove the cylinder upward. ❷ Unlock the buckle. -21-...
- Page 22 RETURN TO CONTENTS 5.4 Clean All Parts Caution: The main unit is strictly prohibited from rinsing and soaking. It can only be wiped, otherwise, the device will be damaged. ❶ Clean every corner of the cylinder with ❷ Scrub the litter si er with a brush and a brush and rinse it o .
- Page 23 RETURN TO CONTENTS 5.5 Install All Parts Caution: Install all parts only when they are completely dry. ❶ Put the cylinder on the base, lock the buckle, and make sure the buckle is fastened. ❷ Hold the cat litter pad, insert the upper part of it into the groove, and then insert the bottom of it into the groove (align with the arrows).
- Page 24 RETURN TO CONTENTS ❸ Release the cat litter pad, and the two sides of it will naturally insert into the groove in the cylinder. Caution: Before use, make sure that the green edge of the cat litter pad is fully stuck into the groove and that the arrows on both ends are aligned with the direction indicated.
- Page 25 RETURN TO CONTENTS ❻ Insert the other side of the litter si er into point B in the cylinder. point B ❼ Please check: If the litter si er can be shaken back and forth, the installation is successful. ❽ Install the side cover and rotate it clockwise, and then install the magnetic side cover. -25-...
- Page 26 Please copy the video URL and open it in your browser to view the video. https://youtu.be/xDe2PtW6SPw BASIC SPECIFICATIONS Product Name PETKIT PURA MAX 2 SELF-CLEANING CAT LITTER BOX Product Model P9902 Dimensions 620 x 538 x 552mm (24.41 x 21.18 x 21.73in)
- Page 27 · Please read the user manual carefully before installing and using the product. Any installation or usage indicates that you have read and accepted the safety guide below. · PETKIT is not responsible for or legally liable for any accidents or injuries resulting from the improper use of the product.
- Page 28 RETURN TO CONTENTS Disposal The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment(WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials theycontain and reduce the impact on human health and the environment.
