Summary of Contents for Chauvet DJ Ovation E-910FC IP
- Page 1 User Manual *Lens tubes sold separately Model ID: OVATIONE910FCIP...
- Page 2 Edition Notes The Ovation E-910FC IP User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation E-910FC IP. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Ovation are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
Menu Map ..................... 12 Standalone Configuration................15 Focus Mode ........................Virtual Color Wheel ......................Color Temperature ......................Manual Color Mixer ......................Color X-Fade Speed ...................... Auto Programs ....................... Red Shift ........................Gobo Rotator........................Ovation E-910FC IP User Manual Rev. 11... - Page 4 17Ch / 14Ch / 13Ch / 11Ch / 8Ch / 6Ch / 4Ch ............... 1Ch..........................HSV..........................5. Technical Information ..............Product Maintenance ..................21 Torque Measurements .................. 21 Vacuum Test Measurements ................ 21 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................23 Ovation E-910FC IP User Manual Rev. 11...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP-rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-910FC IP User Manual Rev. 11... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Ovation E-910FC IP User Manual Rev. 11... -
Page 7: Fcc Statement Of Compliance
40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Ovation E-910FC IP User Manual Rev. 11... -
Page 8: Introduction

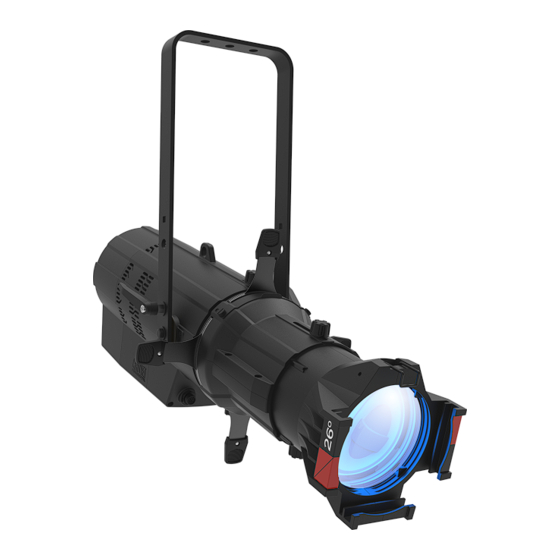

2. Introduction Description The Ovation E-910FC IP takes the high-performance, full RGBA-Lime color-mixing LED engine of the Ovation E-910FC outdoors. Chauvet’s standard shutter assembly and lenses lend familiarity and ease of use to this IP65 ERS-style fixture that offers color temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. -
Page 9: Product Overview
B-size holder for 2.5-in and 2.75- in patterns, sold separately) Accessory slot Framing shutter (x4) Beam focus knobs Barrel rotation knobs Gel frame holder Ovation GR-1 IP power/signal Lens tube Barrel Light engine assembly (sold separately) Ovation E-910FC IP User Manual Rev. 11... -
Page 10: Product Dimensions
Introduction Product Dimensions 11.34 in 288 mm 7.83 in 199 mm 21.85 in 555 mm 8.74 in 6.25 in 222 mm 159 mm 15.79 in 401 mm 32.32 in 821 mm Ovation E-910FC IP User Manual Rev. 11... -
Page 11: Setup
Green/Yellow Green/Yellow Green Power Linking It is possible to power link Ovation E-910FC IP products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz... -
Page 12: Dmx Linking
Setup DMX Linking The Ovation E-910FC IP can be linked to a DMX controller using a 5-pin DMX connection. Other DMX- compatible products used with this product can be controlled individually using a single DMX controller. DMX Personalities The Ovation E-910FC IP uses a 5-pin DMX data connection for the HSV, 1Ch, 4Ch, 6Ch, 8Ch, 11Ch, 13Ch, 14Ch, or 17Ch DMX personalities. -
Page 13: Mounting
Procedure The Ovation E-910FC IP comes with a double-bracketed yoke that can be used as a floor stand or to which mounting clamps can be attached for hanging. Mounting clamps must be purchased separately. Ensure that the clamps can support the weight of this product. Use at least one mounting point per product where necessary. -
Page 14: Rotating The Barrel Assembly
Ovation E-910FC IP. Soft Focus Filter The Ovation E-910FC IP comes with a soft focus filter. To keep the soft focus filter in good condition: • Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp. -
Page 15: Operation
Navigates downward through the menu list or decreases the numeric value when in a <DOWN> function Control Options Set the Ovation E-910FC IP starting address in the 001–509 DMX range. This enables control of up to 12 products in the 17-channel personality. Programming Refer to the Menu Map to understand the menu options. -
Page 16: Menu Map
Operation Menu Map Refer for the Ovation E-910FC IP product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (highest channel 001–512* Address restricted to personality chosen) 1-channel: dimmer 4-channel: dimmer, VCW, color... - Page 17 Sets red LED maximum value Green Sets green LED maximum value White Balance Manual Blue 0–255 Sets blue LED maximum value Amber Sets amber LED maximum value Lime Sets lime LED maximum value Ovation E-910FC IP User Manual Rev. 11...
- Page 18 Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects. When operating in Fan Mode: Off, output of the fixture will be reduced and will not reach the same levels as when using other fan modes. Ovation E-910FC IP User Manual Rev. 11...
-
Page 19: Standalone Configuration
1. Press and hold <ENTER> for 3 seconds. The output intensity will increase to 100%. 2. Press <MENU> to exit focus mode and restore the settings. Virtual Color Wheel The Ovation E-910FC IP offers more than 30 premixed colors based on gel colors. See the Virtual Color Wheel section for details on specific values. -
Page 20: Dimmer Curve
The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the Ovation E-910FC IP changes when the output value is modified. It provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 21: Back Light
Operation Back Light This setting allows for selection of the amount of time the backlight on the Ovation E-910FC IP’s display stays on after the last button is pressed on the control panel. 1. Go to the Back Light main level. -
Page 22: Virtual Color Wheel
Operation Virtual Color Wheel The Ovation E-910FC IP includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 23: Color Temperature Chart
111 160 Auto program 3 161 210 Auto program 4 211 255 Auto program 5 – – – – – – Auto speed 000 255 Auto speed, slow to fast Ovation E-910FC IP User Manual Rev. 11... -
Page 24: 1Ch
000 255 0–100% Value 000 255 0–100% 000 127 Index 128 190 Clockwise fast to slow Gobo rotation 191 192 Stop 193 255 Counter-clockwise slow to fast Ovation E-910FC IP User Manual Rev. 11... -
Page 25: Technical Information
Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure 40 kPa Test duration 30 seconds PASS state leak pressure <0.05 kPa Ovation E-910FC IP User Manual Rev. 11... -
Page 26: Technical Specifications
I/O Connector Channel Range 5-pin XLR 1, 4, 6, 8, 11, 13, 14, 17, HSV Ordering Product Name Item Code UPC Number Ovation E-910FC IP 03121497 781462218454 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-910FC IP User Manual Rev. 11... -
Page 27: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation E-910FC IP User Manual Rev. 11...
