Summary of Contents for Chauvet DJ EVE P-100 WW

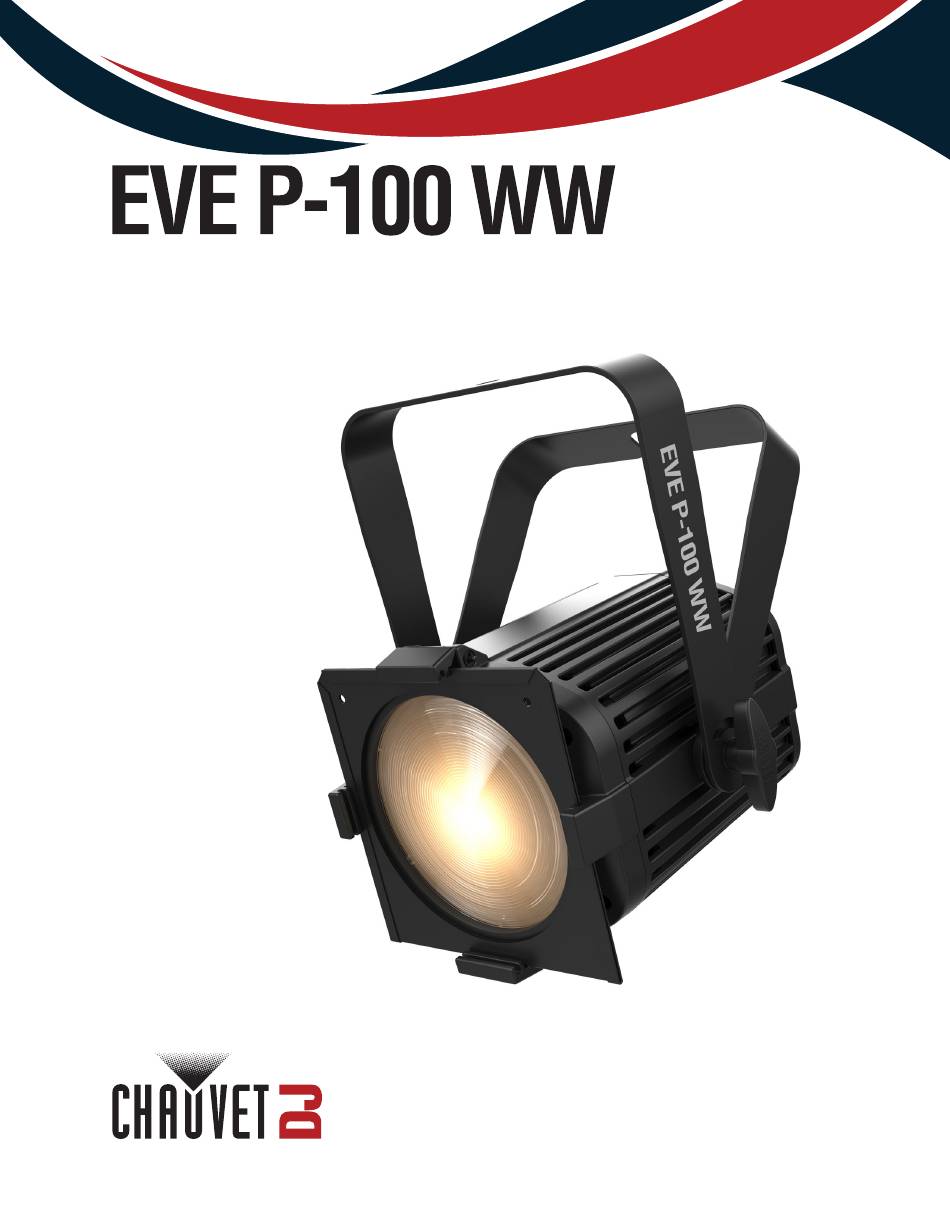

- Page 1 User Manual...
-
Page 2: Edition Notes
Edition Notes The EVE P-100 WW User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the EVE P-100 WW as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and EVE are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Automatic Program Speed ..................Sound-Active Mode.................... Sound Sensitivity ..................... Dimmer....................... Dimmer Speed Mode ..................Temperature....................... Wired Master/Slave Mode................D-Fi USB Master/Slave Mode ............... 5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................EVE P-100 WW User Manual Rev. 6... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. EVE P-100 WW User Manual Rev. 6... -
Page 5: Safety Notes
Expose to rain or moisture. ♦ Use outdoors. ♦ Submerge. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. EVE P-100 WW User Manual Rev. 6... -
Page 6: Introduction
WARNING! DO NOT plug anything other than a D-Fi USB into the USB type B port. Doing so may cause damage to the product. Product Dimensions 6.9 in 11.3 in 176 mm 288 mm 8.6 in 220 mm 12 in 305 mm 9.65 in 245 mm EVE P-100 WW User Manual Rev. 6... -
Page 7: Setup
It is possible to link up to 7 EVE P-100 WW products on 120 VAC or up to 14 products on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor as power linking connectors and requirements may differ by country or region. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EVE P-100 WW may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
Chauvet website chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Personality and Starting Address The EVE P-100 WW uses up to 4 DMX channels in the 4-CH DMX mode, which defines the highest recommended address to 509. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses. -
Page 10: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The EVE P-100 WW is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 11: Dmx Channel Assignments And Values
052 101 Linear dimmer speed (off) – – Dimmer speed mode 102 152 Dimmer speed mode 1 (fast) 153 203 Dimmer speed mode 2 (medium) 204 255 Dimmer speed mode 3 (slow) EVE P-100 WW User Manual Rev. 6... -
Page 12: Standalone Configuration
(medium), or dIM3 (slow). 4. Press <ENTER>. Temperature To view the current temperature of the EVE P-100 WW in °C, follow the instructions below: 1. Press <MENU> repeatedly until tEMP shows on the display. 2. Press <ENTER>. EVE P-100 WW User Manual Rev. 6... -
Page 13: Wired Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single EVE P-100 WW product (the “master”) to control the actions of one or more EVE P-100 WW products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in slave mode. -
Page 14: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. EVE P-100 WW User Manual Rev. 6... -
Page 15: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range 3- and 5-pin XLR 1, 2 or 4 Ordering Product Name Item Code UPC Number EVE P-100 WW 03031470 781462218188 UL 1573 CSA C22.2 No. 166 E113093 EVE P-100 WW User Manual Rev. 6... -
Page 16: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. EVE P-100 WW User Manual Rev. 6...
