Summary of Contents for Whale Expanse WL8212

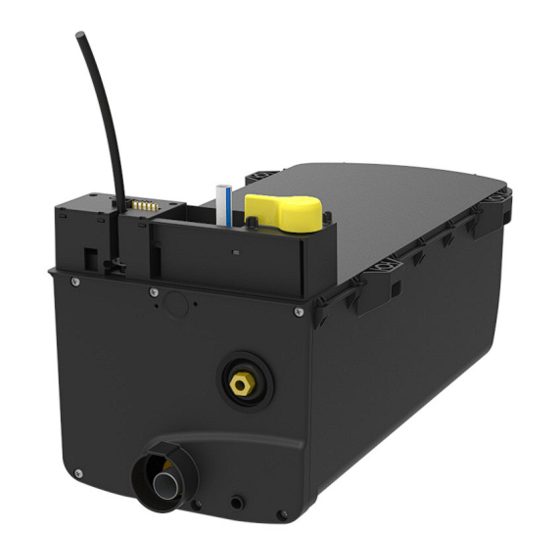

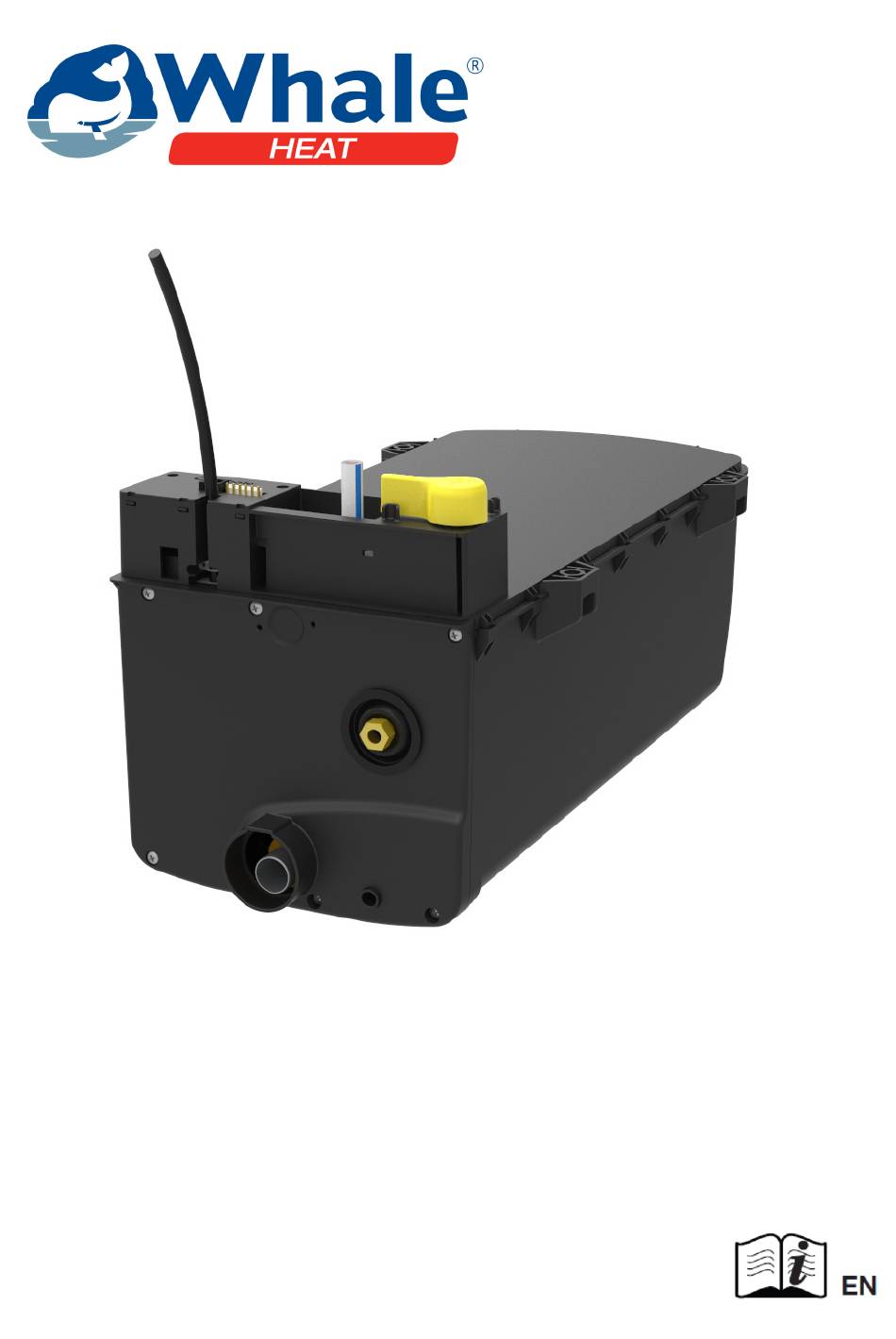

- Page 1 Gas & Electric Water Heater Whale Expanse™ ® WL8212, WL8202 Operating Instructions...
- Page 2 Not following the information in these Operating Instructions provided with this appliance can result in se- rious material damage and serious risk to health or life of persons. Only install and operate this appliance and its control panel if they are all in perfect condition. If damaged, contact Whale Support immediately.
- Page 3 • Do not smoke • Shut off gas connection • Leave the vehicle Immediately ensure that the system is thoroughly checked by a registered gas engineer at a Whale ® Approved Service Centre or by a member of the Whale Service Engineer Network.
- Page 4 1.35 12.5 WL8202x 4. Application The Whale Expanse™ Water Heater has been designed for caravan, motorhome and mobile applications, ® and is suitable for small and medium sized recreational vehicles only. It is only suitable for use in recre- ational vehicles i.e. caravans and motorhomes, but is not suitable for use in caravan holiday homes e.g.
- Page 5 90 degrees to the open position (see Fig. 2). If the plumb- ing arrangement in the vehicle causes air locking preventing the water heater from draining, consideration should be given to fitting a vacuum relief valve, Whale Part # AK1228.
- Page 6 6.1. Whale Duo Control Panel Operation ® WATER HEATING HEATING Control Panel by Figure 3. Whale Duo Control Panel Icon Description Water heater on/off & power source selection button 0.75kW electric selected 1.50kW electric selected Gas selected Gas + electric 0.75kW selected Gas + electric 1.50kW selected...
- Page 7 When selecting a high electric setting on the space or water heater, the control panel may automatically step down the other Whale space / water heater to a lower electric setting or turn off if at risk of exceeding 16A.
- Page 8 6.2. Whale Heat Control Panel Operation ® Figure 4. Whale Heat Control Panel Icon Description Gas heating button Gas heating standby indicator Gas heating on Frost protection mode Eco Mode Max temp Increase temperature button Decrease temperature button Lockout indicator...
- Page 9 6.2.1. Select Temperature 6.2.2. Activate Gas Power And/Or 6.2.3a. Activate Electric Power * 6.2.3b. Select Electric Setting *...
- Page 10 6.2.4. Water Temperature Display *Not available on all models. Electric settings only available on Gas & Electric Heat Control Panel models. Usable Electric Settings * 1.6A 0.4kW 230V a.c. 3.3A 0.75kW 230V a.c. 6.5A 1.50kW 230V a.c. Electric Power Management For dual Heat Control Panel variants, when selecting a high electric setting on the space or water heater, the control panel may automatically step down the other Heat Control Panel to a lower electric setting or turn off if at risk of exceeding 16A.
- Page 11 4. Go to step 4 Step 4 - Clear Lockout WATER HEATING WATER HEATING HEATING HEATING Control Panel by Control Panel by If problems persist please contact Whale Support on + 44 (0)345 9090 911. For Europe, please see ® enclosed Webasto-Service information.
- Page 12 1. Power off 2. Check Heater for recurring faults 3. Power On 4. Go to step 4 Step 4 - Clear Lockout If problems persist please contact Whale Support on +44 (0)345 9090 911. For Europe, please see ® enclosed Webasto-Service information.
- Page 13 Cleaning and user maintenance must not be carried out by children without supervision. Water Heater must be checked periodically by a Whale The Whale Approved Service Centre / Technician, ®...
- Page 14 Whale . For warranty details, please see the enclosed Warranty Statement. ® ©Copyright Whale 2019 - All rights reserved. Reproduction in whole or in part without permission is prohibited. WHALE , is a registered trademark of Munster Simms Engineering Limited, Bangor, Northern Ireland trading ®...
