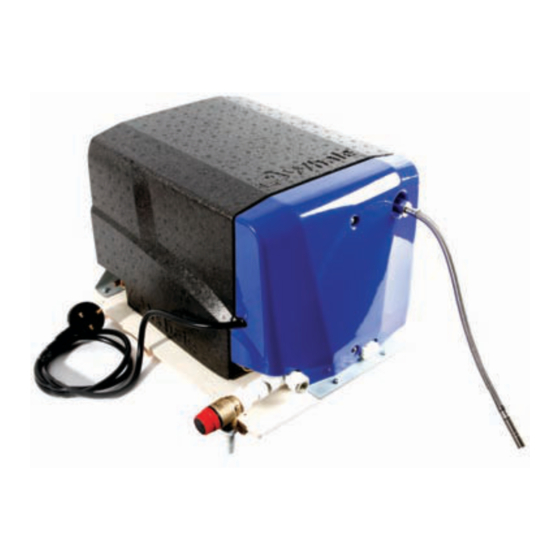

Whale WH1301 Instructions Manual

Water Heater
INSTALLATION & USER INSTRUCTIONS
Thank you for purchasing this Whale product.
For over 40 years Whale has led the way in the design and manufacturer of freshwater and waste systems
including:- plumbing, faucets, showers and pumps for low voltage applications. The company and its products have
built a reputation for quality, reliability and innovation backed up by excellent customer service.
For information on our full product range visit: www.whalepumps.com
CONTENTS
1. Principles of Operation
2. Specification
3. Application
4. Warnings
5. Parts List
6. Instructions for Installation
7. Instructions for use
8. Maintenance
9. Trouble Shooting
10. Winterising
11. Service Support Details
12. Patents and Trademarks
13. EU Declaration of Conformity
LIST OF IMAGES
Fig.1 Components drawing
Fig.2 Dimensions – side view
Fig.3 Dimensions – top view
Fig.4 Dimensions – front view
Fig.5 Installation locating diagram
Fig.6 Cut out hole for flue
Fig.7 Flue dimensions
Fig.8 Reinforce flue hole
Fig.9 Flue sealing
Fig.10 Installation and securing of flue
Fig.11 Connect Water Heater to flue
Fig.12 Water heater position
Fig.13 Secure water heater to floor
Fig.14 Connect to gas supply
Fig.15 Insert control panel
Fig.16 Secure control panel
Fig.17 Installed control panel
Fig.18 Connect 12v connector
Fig.19 Mains electrical connection
Fig.20 Mains connection
Fig.21 Connect cold water supply
Fig.22 Installed cold water supply
Fig.23 Connect braided hose
Fig.24 Connect hot water supply
Fig.25 Fitting the drain pipe
Fig.26 Completed installation - Manufacturer version
Fig.27 Completed installation - Retail version
1
WH1301/WH1301B
