Summary of Contents for Jaeger-leCoultre REVERSO TRIBUTE Q389257J
-
Page 1: Table Of Contents

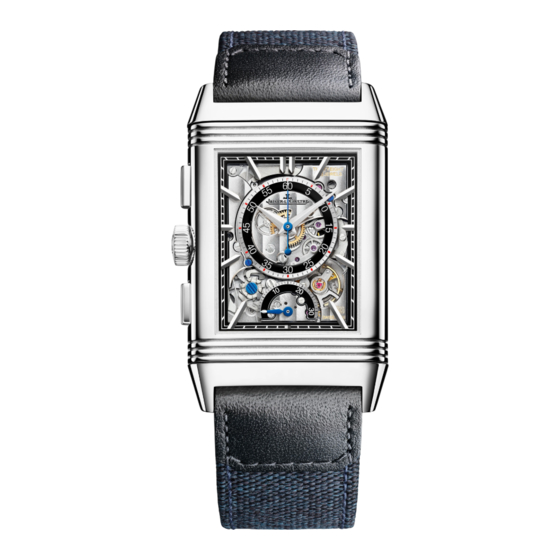

CONTENTS Introduction Accuracy and precautions for use Water resistance “1000 Hours Control” test Care instructions for leather straps Technical specifications International Guarantee Limited Warranty (United States of America and Canada) Guarantee for Australia Customer Service... - Page 2 1 Hour hand (Front) 2 Minute hand (Front) 3 Push-piece A: chronograph start/stop 4 Crown: setting the time and winding 5 Push-piece B: chronograph resetting 6 Hour hand (Back) 7 Minute hand (Back) 8 Chronograph seconds (Back) 9 Chronograph minutes (Back)
-
Page 3: Introduction
INTRODUCTION We would like to thank you for the confi- dence you have placed in Jaeger-LeCoultre. Our Maison has applied all its expertise and exacting standards to the creation of this model. We invite you to consult the operating in- structions and hope your Jaeger-LeCoultre timepiece brings you great joy. -
Page 4: Water Resistance
If you observe a discrepancy in the way your watch runs, we advise you to entrust it to an author- ized Jaeger-LeCoultre retailer who will make the necessary adjustments. Watches with mechanical movements must not be... - Page 5 responding to an immersion pressure of 30 meters (1 bar = ±10 meters). In accordance with the ISO 22810/NIHS 92-20 standard, in order to guarantee the durability of the watch’s characteristics over time, and as water resistance may be affected by certain activities, it is recom- mended that you: - have watch’s...
- Page 6 and have the water resistance checked after any severe impact. - avoid using the controls, push-piece, or time-setting crown while under water or outside the water, if the watch is not yet dry after immersion. - restore the time-setting crown and the push-pieces to their normal positions, or where applicable, close the compression keys after every manipulation.
-
Page 7: 1000 Hours Control" Test
“1000 HOURS CONTROL” TEST The Jaeger-LeCoultre Manufacture pays close attention to the quality and final checks of its watches. The 1000 Hours Control is a series of in- ternal qualification tests for each of the models in our collection, as well as inter- nal tests on the production of your watch, which go beyond official timing tests. -
Page 8: Care Instructions For Leather Straps
in temperature and atmospheric pressure, ability to withstand shocks and magnetic fields, as well as water resistance. CARE INSTRUCTIONS FOR LEATHER STRAPS 1. Keep the leather strap in a dry place 2. Avoid contact with water, cosmetics, perfumes, alcohol, and oily materials 3. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS - Manually wound mechanical Manufacture movement, Jaeger-LeCoultre Caliber 860. - 28,800 vibrations/hour. - Power reserve: approximately 52 hours. - Water-resistant to 3 bar. STARTING AND WINDING Crown in position 0. - Page 10 The watch is wound by turning the crown clockwise. It is fully wound when the crown locks. Do not attempt to wind a manually-wound watch beyond the locking point. To ensure good operating accuracy, it is advisable to wind your watch regularly, at least once a day.
- Page 11 OPERATING THE CHRONOGRAPH The central seconds hand of your watch displays the chronograph seconds to the nearest quarter of a second. The retrograde counter at 6 o’clock counts the minutes up to 30 minutes. - Push-piece at 2 o’clock: this push-piece starts and stops the chronograph func- tion.
- Page 12 The central seconds hand will turn, and the minute counter will run. Pressing the push-piece at 2 o’clock again will stop the chronograph, enabling the time measurement to be read. - Reset by pressing the push-piece at 4 o’clock to be ready to perform another time measurement.
- Page 13 In order to benefit from the International Guarantee and/or the Limited Warranty and/or the Manufacturer’s Guarantee for Australia, Jaeger-LeCoultre products must be purchased exclusively from authorized Jaeger-LeCoultre retailers or from Jaeger- LeCoultre Boutiques. Maintenance and repair work must be entrusted to an au- thorized Jaeger-LeCoultre...
-
Page 14: International Guarantee
INTERNATIONAL GUARANTEE The International Guarantee applies to Jaeger-LeCoultre products sold or pre- sented for guarantee repairs in all coun- tries, except the United States of America and Canada (for these two countries, see the Limited Warranty) and Australia (for this country, refer to the Guarantee for Australia). - Page 15 LeCoultre International Guarantee is valid only if the guarantee certificate enclosed with this booklet has been duly complet- ed, dated, stamped, and signed by the au- thorized Jaeger-LeCoultre retailer or the Jaeger-LeCoultre Boutique, which sold you your watch. The Jaeger-LeCoultre International Guar-...
- Page 16 Jaeger-LeCoultre retailer, Jaeger- LeCoultre Boutique, or an authorized Jaeger-LeCoultre Service Center (for fur- ther information please see your User Manual). For quartz watches, this guarantee does not cover the battery life. As a consumer, you may have legal rights under applicable national legislation gov- erning the sale of consumer goods;...
-
Page 17: Limited Warranty (United States Of America And Canada)
LIMITED WARRANTY (UNITED STATES OF AMERICA AND CANADA) The following Limited Warranty applies to Jaeger-LeCoultre products sold or pre- sented for warranty repairs in the United States of America and Canada only. TERMS AND CONDITIONS OF AEGER-LE OULTRE LIMITED WARRANTY... - Page 18 Jaeger- LeCoultre retailer or the Jaeger-LeCoultre Boutique, which sold you your watch. This Jaeger-LeCoultre Limited Warranty does not cover defects resulting from ac- cidents, mishandling, or incorrect, abusive use (for example, knocks, dents, crushing, excessive temperatures, powerful mag-...
- Page 19 Jaeger-LeCoultre retailer, a Jaeger- LeCoultre Boutique, or an authorized Jaeger-LeCoultre Service...
- Page 20 The liability of Jaeger-LeCoultre is lim- ited solely and exclusively to repair or replacement under the terms and con- ditions stated herein. Jaeger-LeCoultre shall not be liable, by virtue of this Lim- ited Warranty or otherwise, for any loss or damage arising out of the use of or...
-
Page 21: Guarantee For Australia
You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure. This Jaeger-LeCoultre Guarantee gives you additional rights and remedies un- der the Australian Consumer Law and any... - Page 22 Every Jaeger-LeCoultre product is made and tested to meet the Jaeger-LeCoultre qual- ity standards. Nevertheless, should your Jaeger-LeCoultre product prove defec- tive, please contact the Jaeger-LeCoultre retailer or Jaeger-LeCoultre Boutique in- dicated on your guarantee certificate;...
- Page 23 (2) years from the date of purchase. Thereafter, Jaeger-LeCoultre will repair any defective product or part subject to a service charge. The Jaeger-LeCoultre Guarantee does not cover defects and damage caused by ac- cident, improper use (including knocks, dents, crushing, etc.), normal wear and tear,...
- Page 24 It is essential to have the water resistance checked by an authorized Jaeger- LeCoultre retailer, a Jaeger-LeCoultre Boutique, authorized Jaeger- LeCoultre Service Center at least every two years, and in any event, prior to any period of intensive use.
- Page 25 In Australia, a claim under the Jaeger- LeCoultre Guarantee may be sent to Richemont Australia Pty Ltd, provider of the guarantee service, at the address be- low or as specified above: Richemont Australia Pty Ltd PO Box 4780 Sydney, NSW 2001 Tel: +1 800 71 0665 Email: client.relations.asia@jaeger- lecoultre.com...
-
Page 26: Customer Service
CUSTOMER SERVICE A Jaeger-LeCoultre timepiece is a high- precision instrument that operates 24 hours a day, or 8,760 hours a year. There- fore, it is essential to have it serviced regularly in order to guarantee its good working order and its durability. If signifi-... - Page 27 Service Centers staffed by watchmakers trained at the Jaeger-LeCoultre Manufacture and have the workshops, tools, and parts required for the repair and maintenance of Jaeger- LeCoultre watches and clocks. In certain cases, especially for operations...
